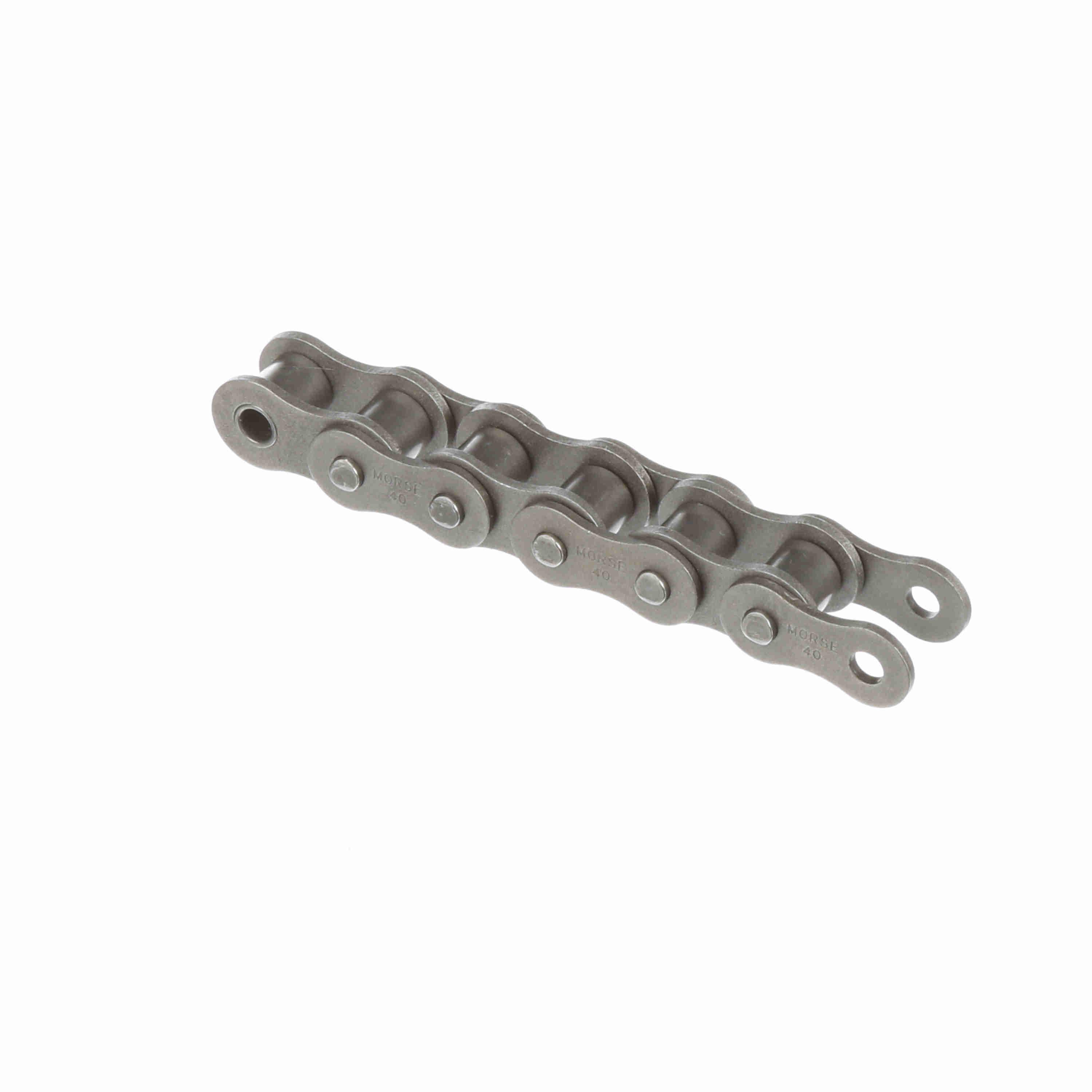

Morse® 099654 MOR41R-10
Morse® 099654 Riveted Standard Duty Roller Chain, 10 ft OAL, 1/2 in Pitch, 0.306 in Dia x 1/4 in W Roller, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Morse®
- Part Number: MOR41R-10
- Alt Part Number: 41R 10FT
- MPN: 099654
- UPC: 662288389378
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 10/ft
-
Price:
Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.
Morse® Roller Chain, Riveted Standard Duty, 1/2 in Pitch, 0.141 in Pin Diameter, 0.53 in Pin Length, 0.306 in Roller Diameter, 1/4 in Roller Width, 0.383 in Plate Height, 0.05 in Plate Thickness, 1 Links, 1 Strands, 2000 lb Tensile Strength, 10 ft Overall Length, Steel
| Material | : | Steel |
| Number of Links | : | 1 |
| Number of Strands | : | 1 |
| Overall Length | : | 10 ft |
| Pin Diameter | : | 0.141 in |
| Pin Length | : | 0.53 in |
| Pitch | : | 1/2 in |
| Plate Height | : | 0.383 in |
| Plate Thickness | : | 0.05 in |
| Roller Diameter | : | 0.306 in |
| Roller Width | : | 1/4 in |
| Tensile Strength | : | 2000 lb |
| Type | : | Riveted Standard Duty |
- Item Features 01=Created for applications requiring high horsepower at low speeds
- Item Features 02=Far exceeds ANSI performance standard
- Item Features 03=Rigid manufacturing processes result in a fully-featured chain
- Item Features 04=Unmatched quality and performance
