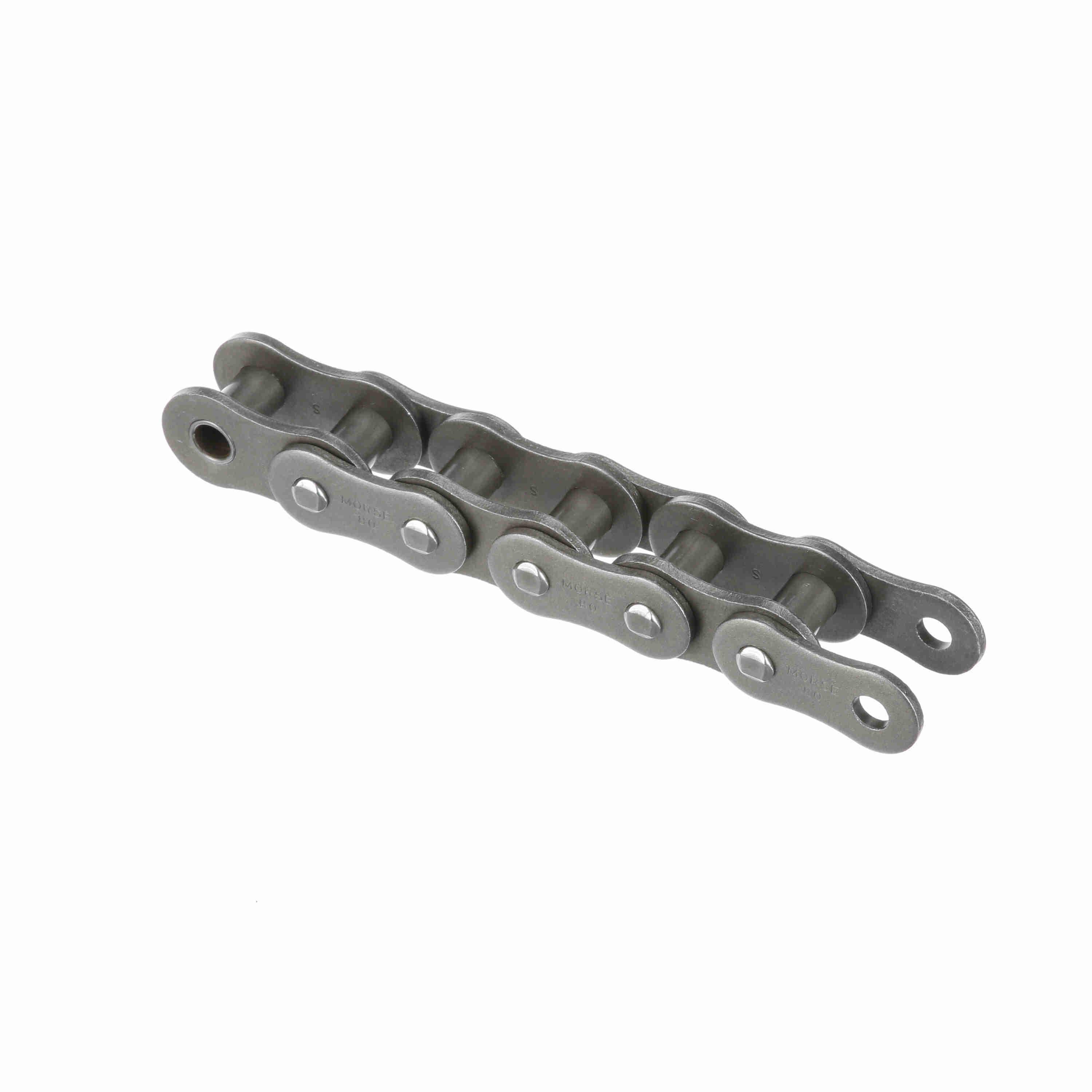

Morse® 099651 MOR35R-50

Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications. Roller chain is available from 1/4 in pitch to 2-1/2 in pitch. Morse® offers standard roller chain in multiple widths to 8 strands up to 2 in pitch. Roller chain accessories such as connecting links are available in slip fit on the pins. This allows for easy assembly . They are also furnished with spring clip or cotter keys, depending on pitch. For heavy applications, we offer an optional connecting link. It has a removable plate with a light press fit on the pins. Regular offset links are used when a chain contains an odd number of links.

Morse® Roller Chain, Standard, 3/8 in Pitch, 0.141 in Pin Diameter, 0.466 in Pin Length, 0.2 in Roller Diameter, 3/16 in Roller Width, 0.35 in Plate Height, 1/2 in Plate Thickness, 5 Links, 1 Strands, 2100 lb Tensile Strength, 50 ft Overall Length, Steel

• Item Features 01=Unmatched quality and performance
• Item Features 02=Far exceeds ANSI performance standards, rigid manufacturing processes result in a fully-featured chain
• Item Features 03=Riveted chain construction
• Item Features 04=35 chain size

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Morse_119820_Catalog.pdf
