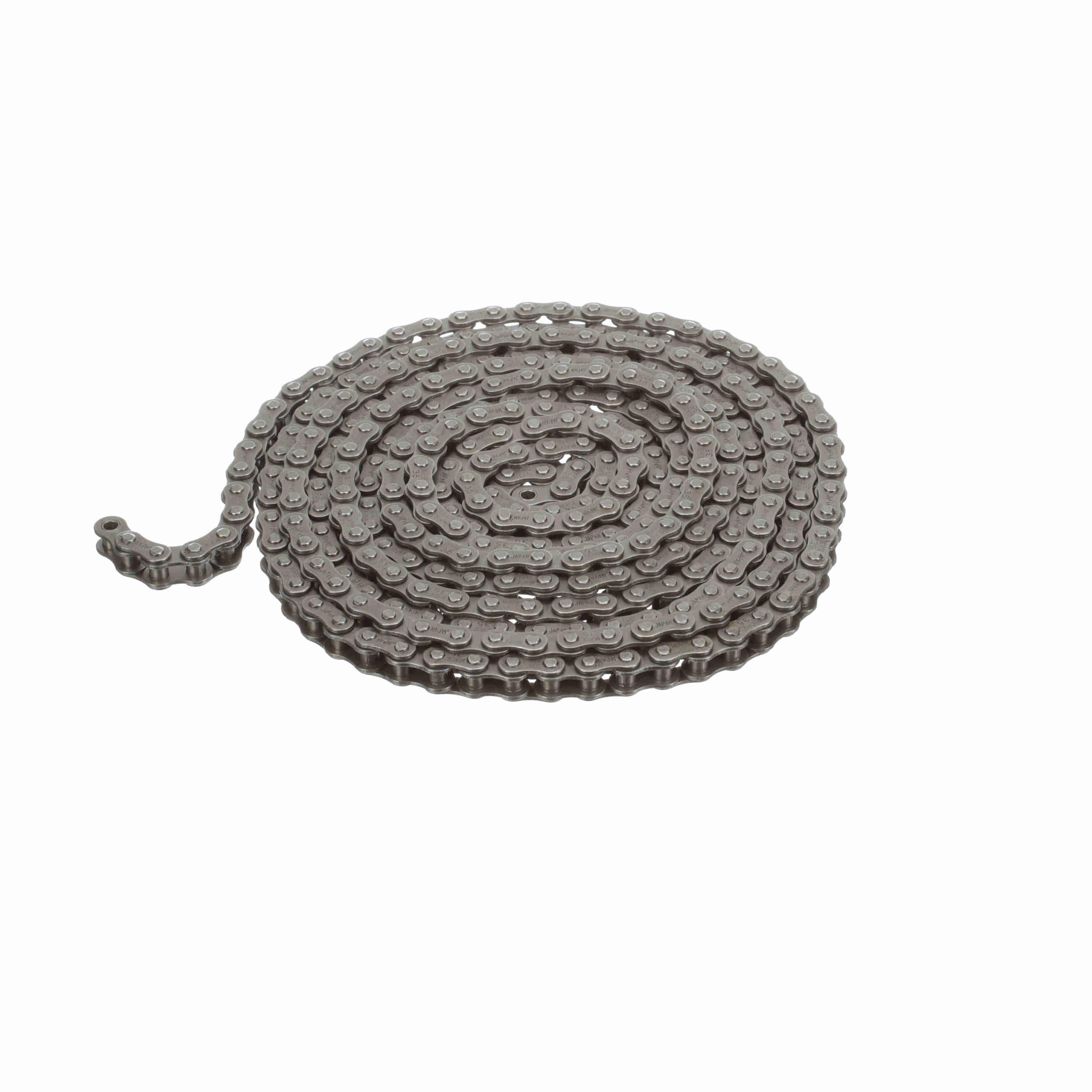

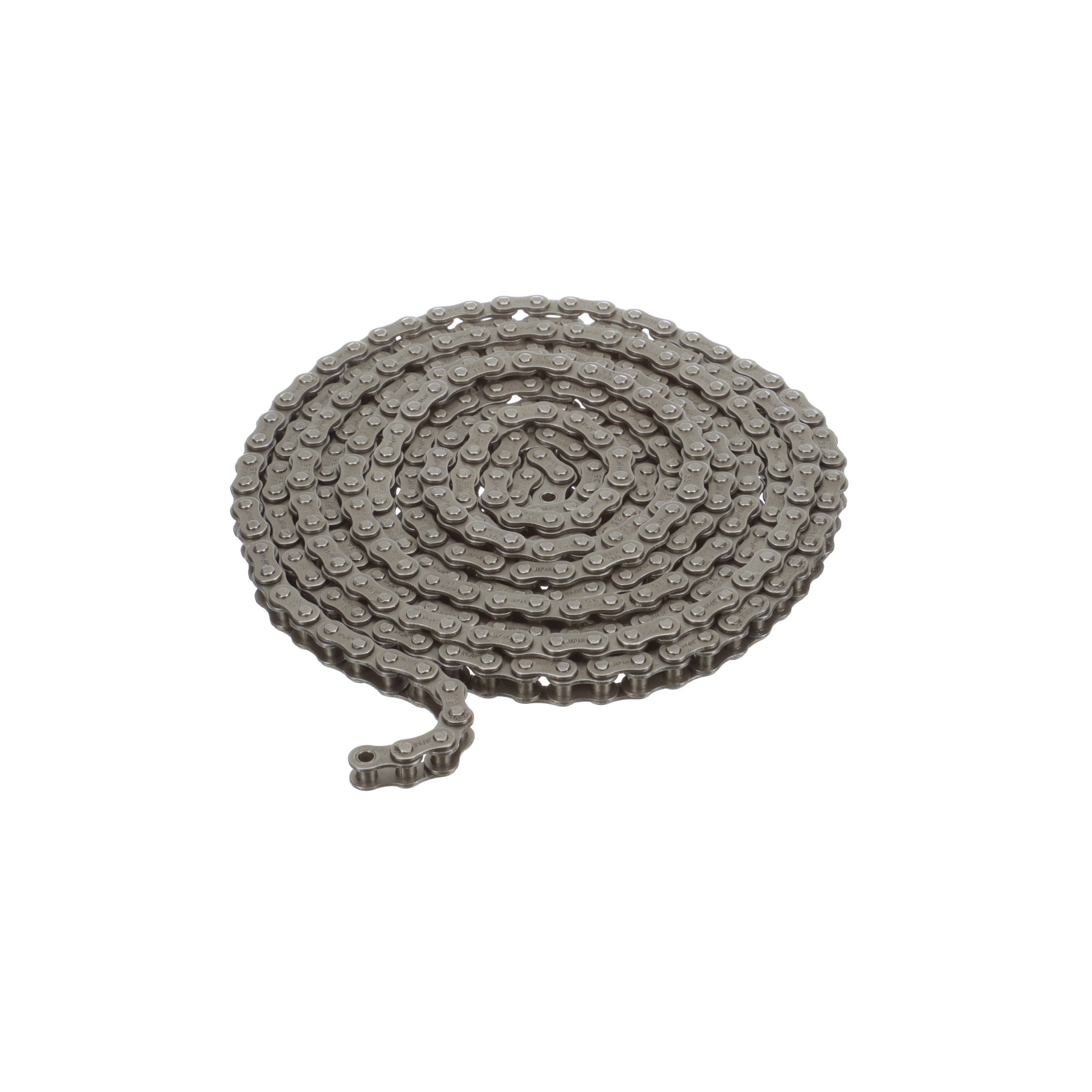

Morse® 099650 MOR35R-10
Morse® 099650 Riveted Standard Duty Roller Chain, 10 ft OAL, 3/8 in Pitch, 0.2 in Dia x 3/16 in W Roller, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Morse®
- Part Number: MOR35R-10
- Alt Part Number: 35R 10FT
- MPN: 099650
- UPC: 662288389347
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 10/ft
-
Price:
Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.
Morse® Roller Chain, Riveted Standard Duty, 3/8 in Pitch, 0.141 in Pin Diameter, 0.466 in Pin Length, 0.2 in Roller Diameter, 3/16 in Roller Width, 0.35 in Plate Height, 0.05 in Plate Thickness, 1 Links, 1 Strands, 2100 lb Tensile Strength, 10 ft Overall Length, Steel
| Material | : | Steel |
| Number of Links | : | 1 |
| Number of Strands | : | 1 |
| Overall Length | : | 10 ft |
| Pin Diameter | : | 0.141 in |
| Pin Length | : | 0.466 in |
| Pitch | : | 3/8 in |
| Plate Height | : | 0.35 in |
| Plate Thickness | : | 0.05 in |
| Roller Diameter | : | 0.2 in |
| Roller Width | : | 3/16 in |
| Tensile Strength | : | 2100 lb |
| Type | : | Riveted Standard Duty |
- Item Features 01=Created for applications requiring high horsepower at low speeds
- Item Features 02=Far exceeds ANSI performance standard
- Item Features 03=Rigid manufacturing processes result in a fully-featured chain
- Item Features 04=Great for low HP reciprocating drives
- Item Features 05=Without roller
