Morse® 089286 MORC2082HOS

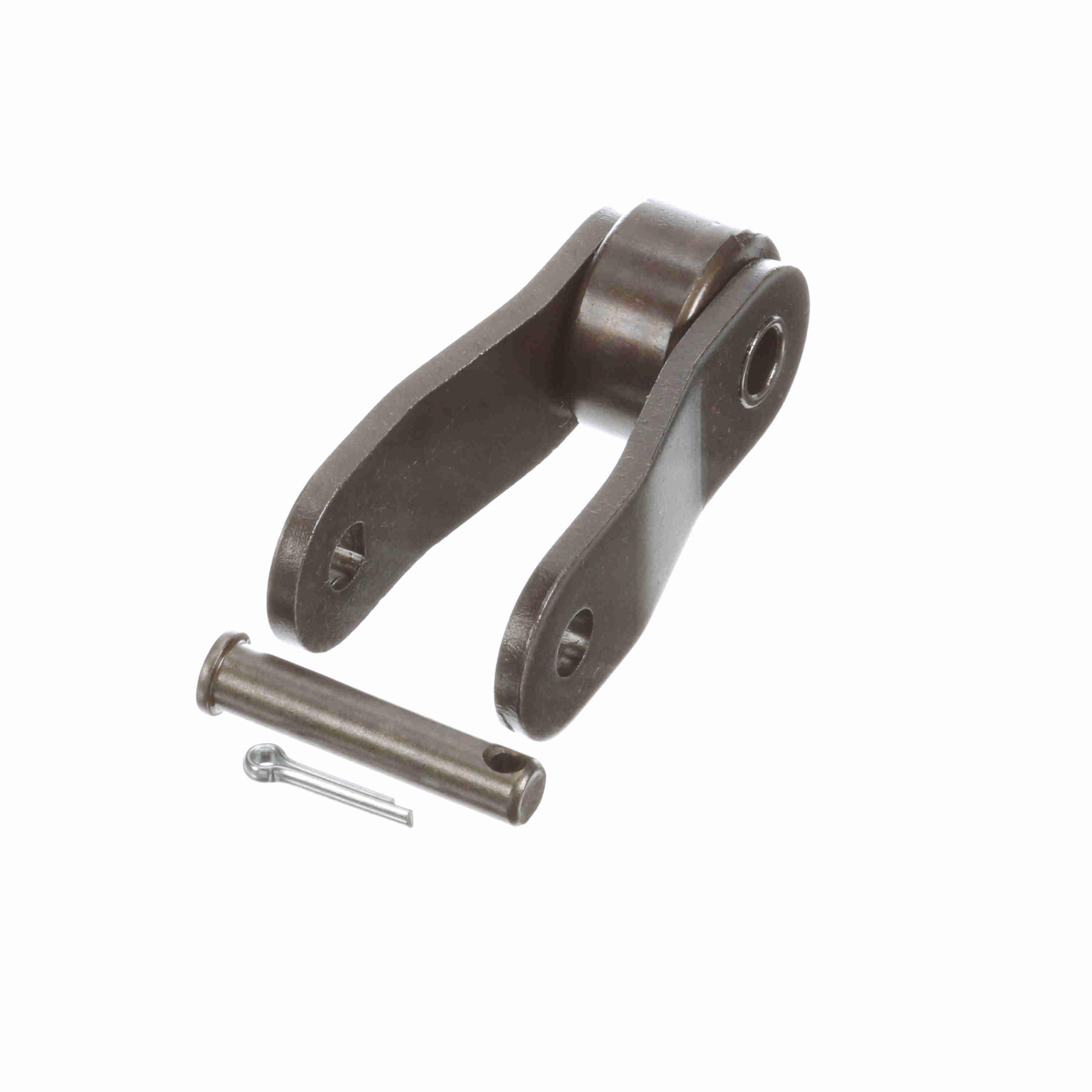

Morse® 089286 Large Offset Link With Cotter Pin, C2082H Chain, 2 in Pitch, 1.504 in OAW, 0.312 in Dia Pin, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Morse®
- Part Number: MORC2082HOS
- MPN: 089286
- UPC: 662288557210
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

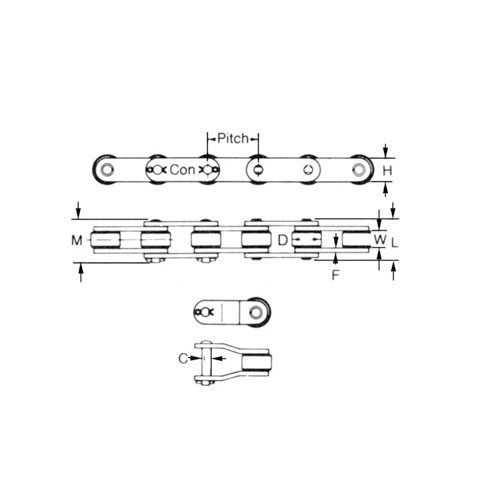

Morse® Offset Link, Large, C2082H Chain, 2 in Pitch, 1.504 in Overall Width, 0.312 in Pin Dia, 0.934 in Link Plate Height, 0.156 in Link Plate Thickness, Steel
| Chain Size | : | C2082H |
| Link Plate Height | : | 0.934 in |
| Link Plate Thickness | : | 0.156 in |
| Material | : | Steel |
| Overall Width | : | 1.504 in |
| Pin Diameter | : | 0.312 in |
| Pitch | : | 2 in |
| Type | : | Large |
- Item Features 01=1-strand
