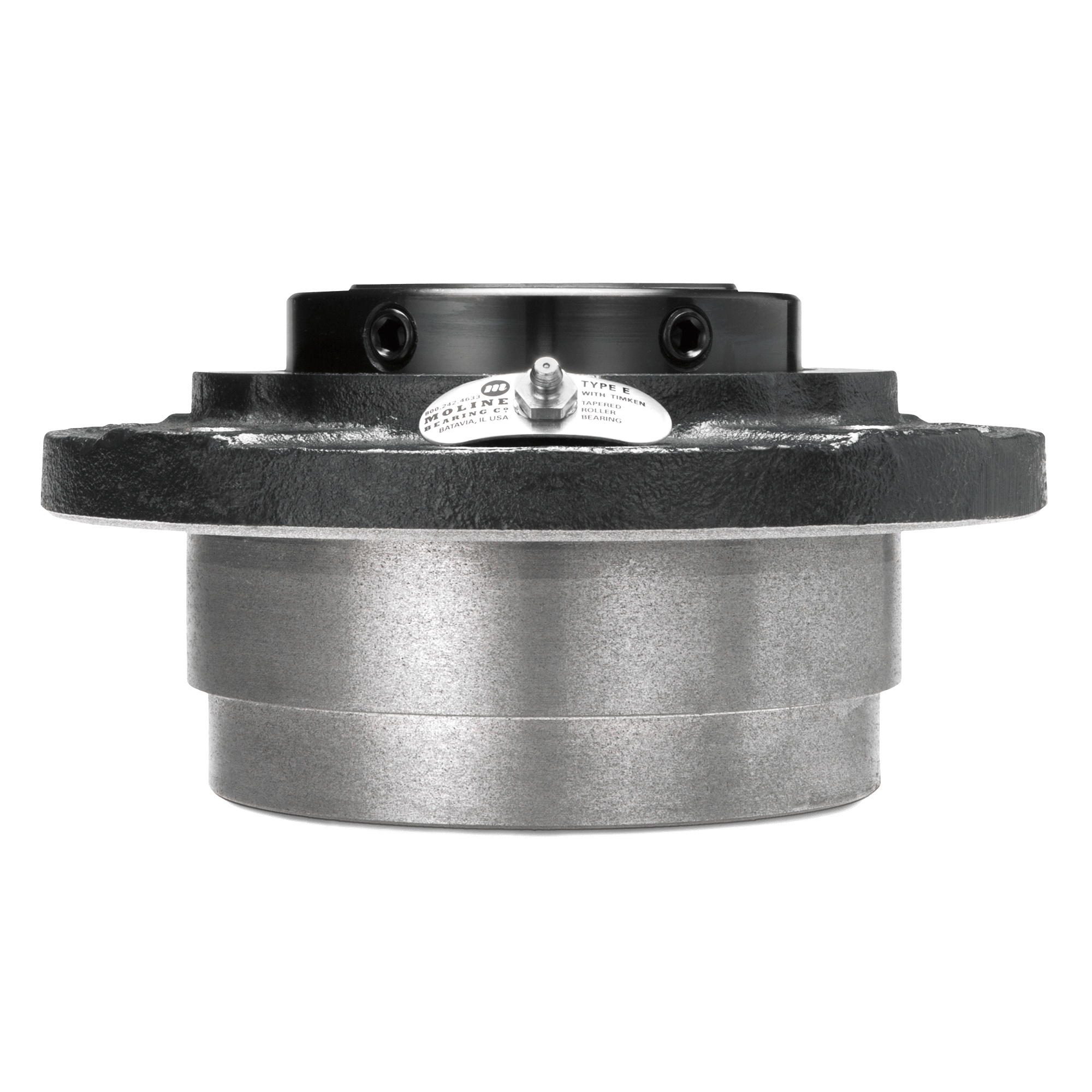

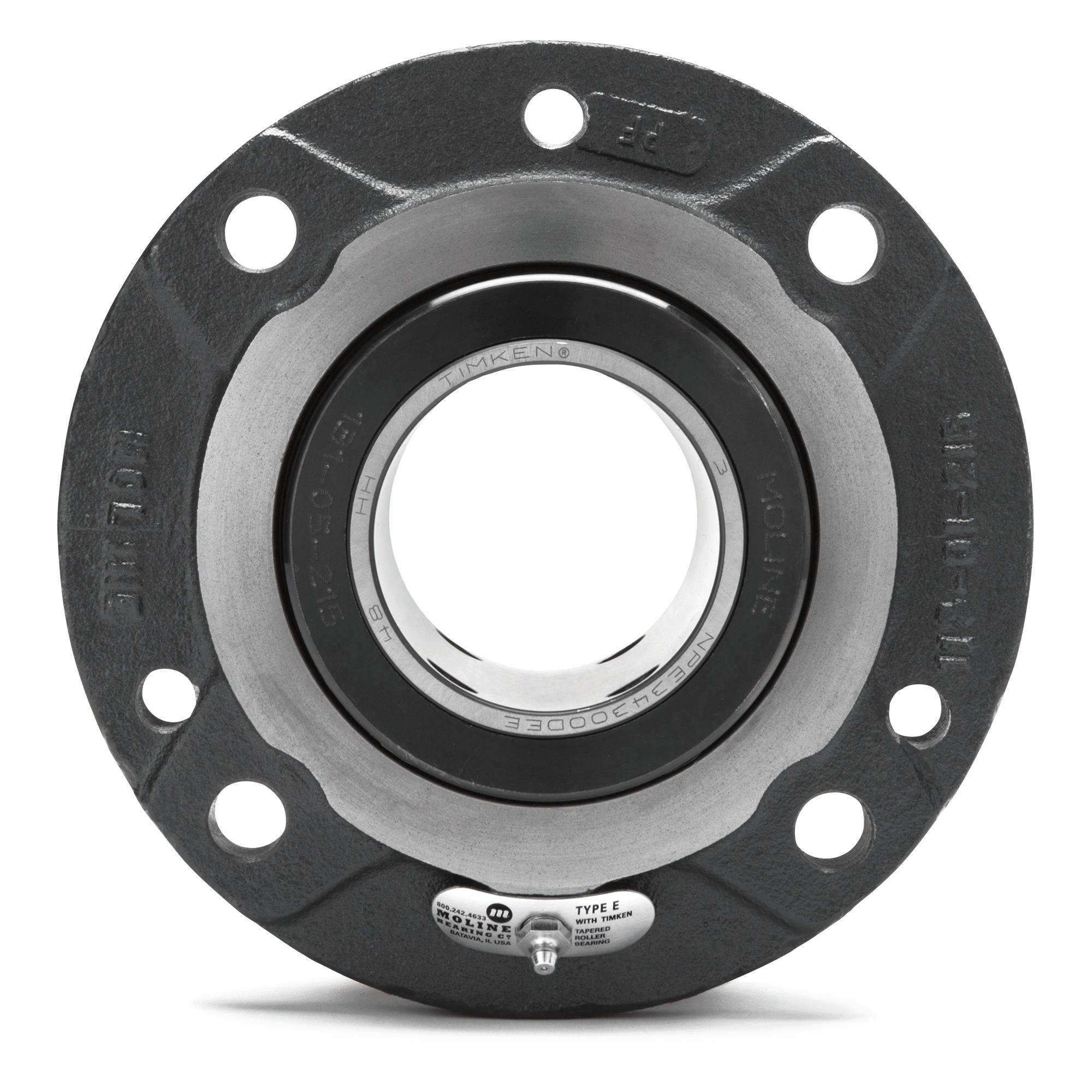

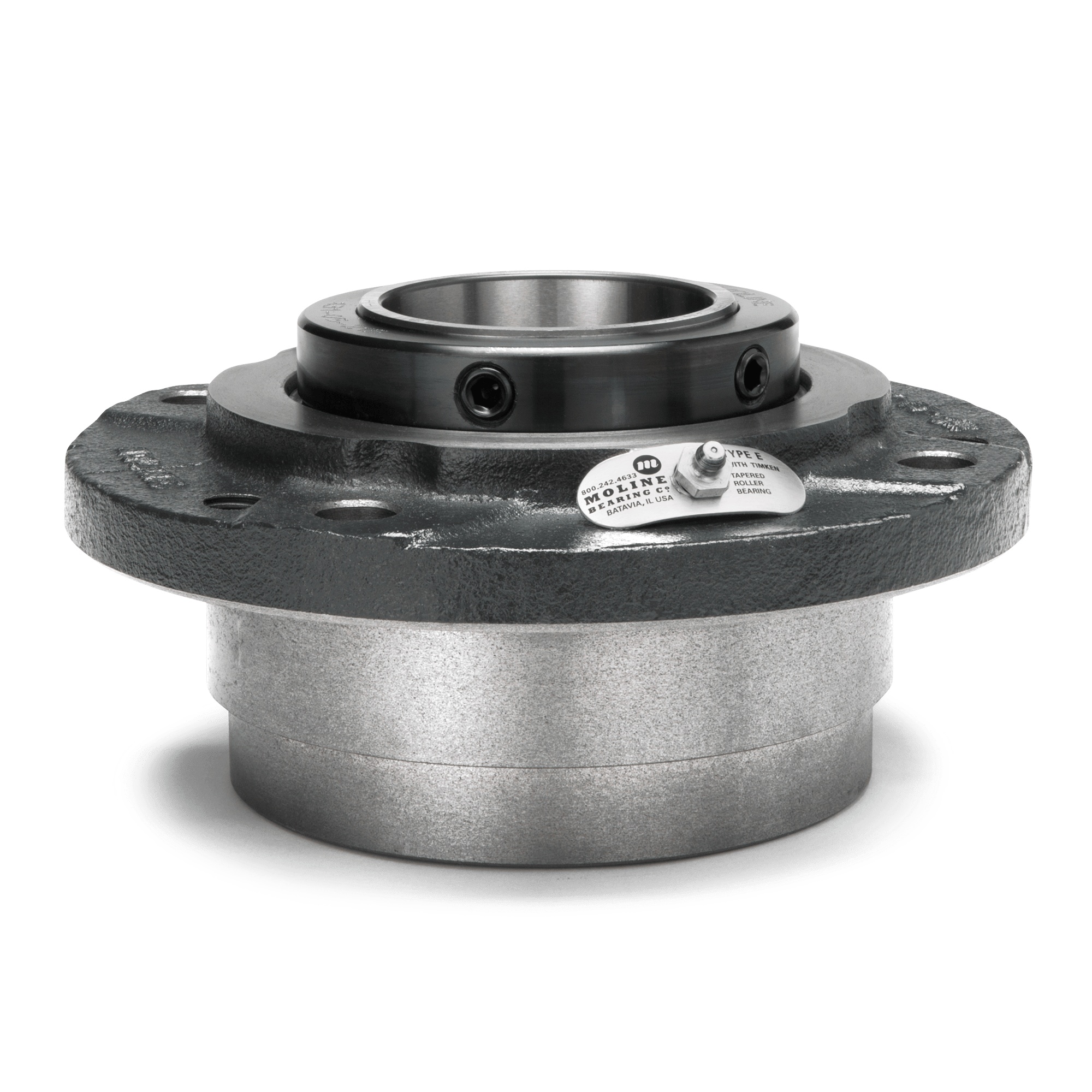

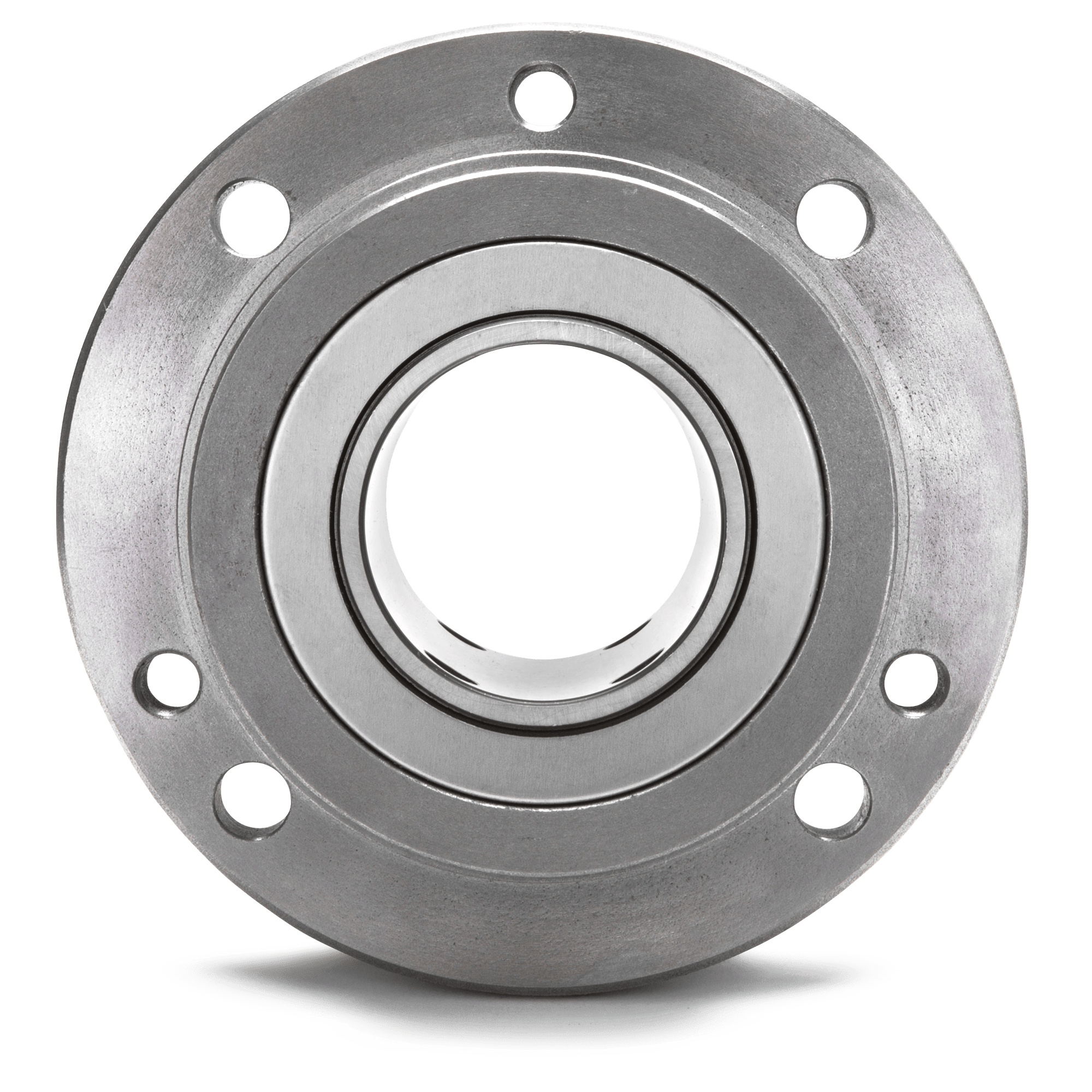

Moline Bearing 19331307 MOL19331307

Made of Cast Iron, this Solid Type E Piloted Flange is a Non-Expansion Mounted Roller Bearing Bearing with a 3 7⁄16 in (3.4375 in) shaft size. Includes a Steel Set Screw Locking Insert with a Double Collar, an available Standard V-Guard Contact Seal made of Nitrile, Teflon and Steel, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.

Moline Bearing, 19331307, Tapered Roller Bearing, Type E, 3-7/16 in Bore, 6.1 in Bolt Center-to-Center Length, 8-5/8 in Diameter Bolt Circle, Piloted Flange Mounting, 10-1/4 in Overall Length/Diameter, 5 in Overall Depth, 10-1/4 in Overall Height, Labyrinth Seal

• Introducing the Moline Type E Piloted Flange Bearings, your ultimate solution for high-performance and reliable mounting needs
• Specifically engineered to excel in the most demanding industrial environments, these bearings offer unparalleled durability and efficiency that set them apart from the competition
• Unmatched Engineering Excellence At the heart of our Type E Piloted Flange Bearings is the precision-engineered Timken Enhanced DEE Tapered Roller Bearings
• Renowned for their superior load ratings, our bearings boast a double-extended inner race and case-hardened rollers and races
• Constructed from vacuum-degassed steel, these components deliver extended life and outstanding strength, even under high radial and thrust load conditions
• This design also allows for slight angular shaft misalignment, enhancing its versatility and operational dependability
• Superior Housing and Versatile Design Built to last, each housing is crafted from high-quality, US-made Class 30 cast iron
• The precision machining ensures close tolerances for maximum stability while maintaining a compact form
• The piloted flange design, with its circular configuration and multiple mounting holes, ensures optimal alignment with structural supports, simplifying installation and maintenance processes
• The standard V-Guard contact seal, made from nitrile and Teflon, provides exceptional protection against contamination and extends the lifespan of the bearing in harsh environments
• Each unit comes in a standard painted finish, with options for custom colors, powder coating, and various other surface treatments available upon request to meet specific client needs
• Installation Made Easy Ease of installation is a hallmark of the Moline Type E Bearings
• Each unit is pre-assembled, adjusted, sealed, and pre-lubricated, ensuring they are ready to install right out of the box
• This streamlined setup minimizes downtime and reduces the potential for errors related to cleaning, lubrication, or sealing effectively lowering the overall cost and time commitment for your operations
• Capable of handling the toughest demands with ease, these bearings are dimensionally interchangeable with comparable Type E units, offering a hassle-free upgrade path for existing systems
• Built for Performance Rated for temperatures ranging from 0 to 250F and speeds up to 2100 RPM, these bearings deliver exceptional performance across a wide variety of operational settings
• The set screw locking ensures secure attachment while the double collar provides additional stability, enhancing the endurance of the unit under various stress conditions
• Made in the USA and built with premium materials, they offer a reliable, cost-effective solution for businesses that refuse to compromise on quality or performance
• Empower your applications with the robustness and precision only Moline can provide
