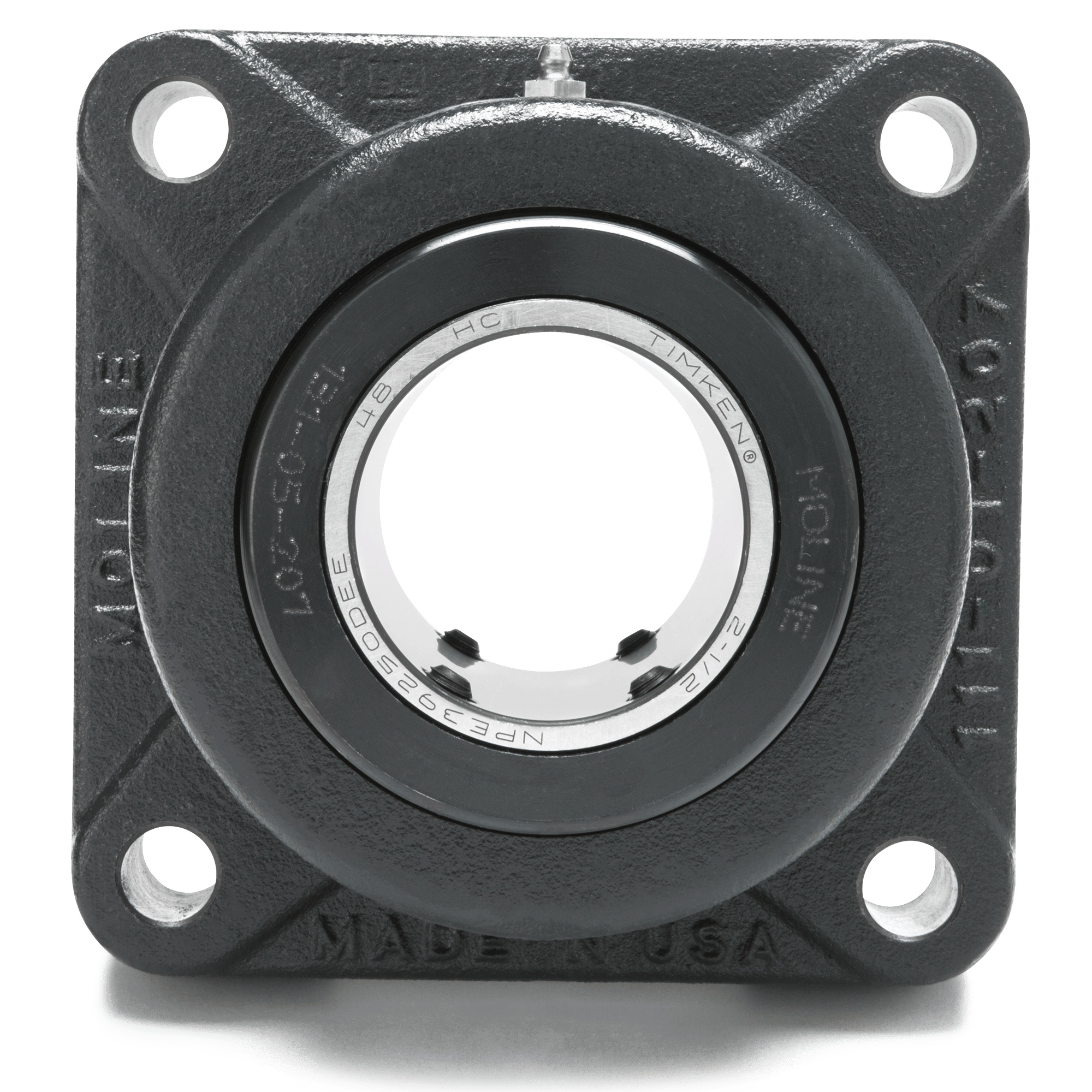

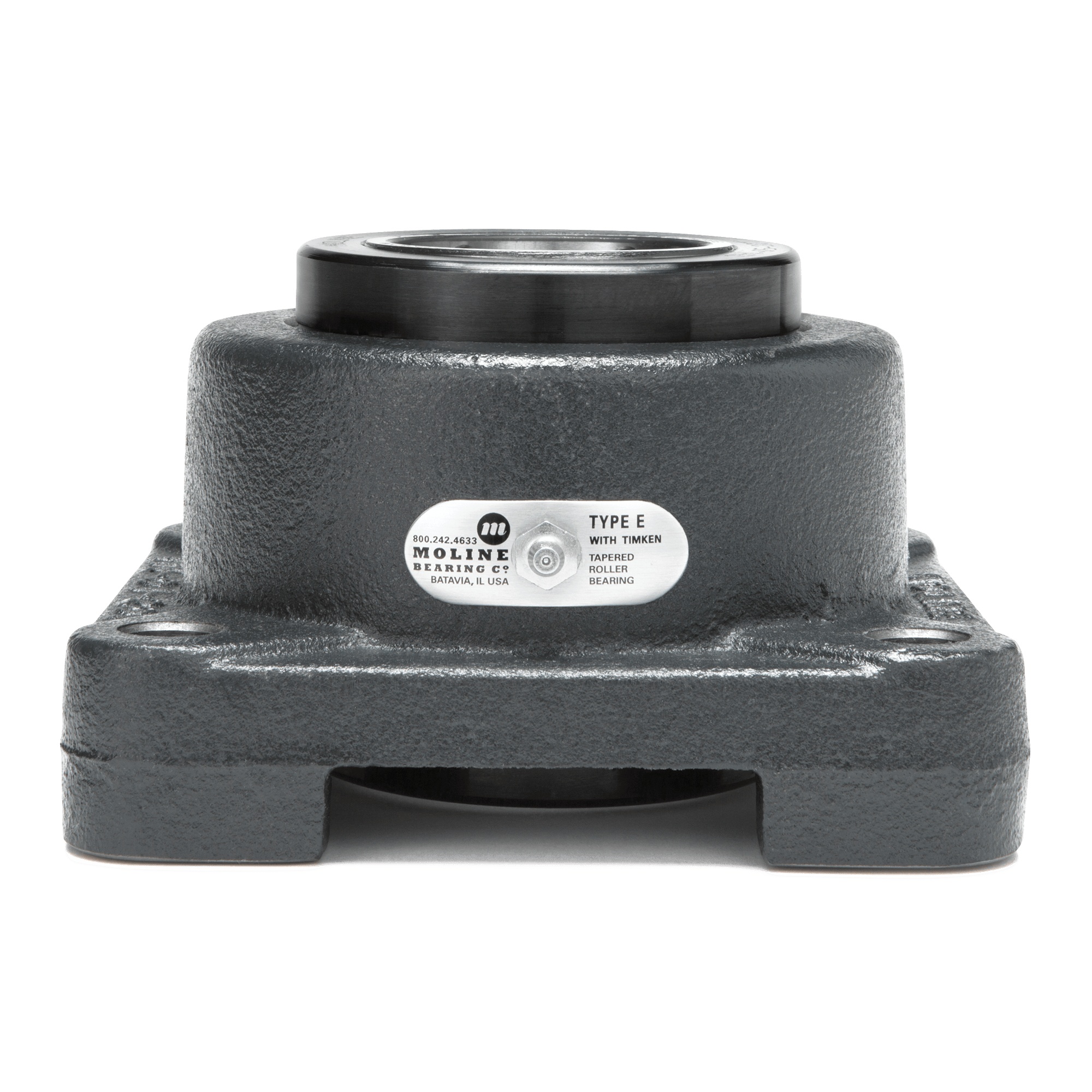

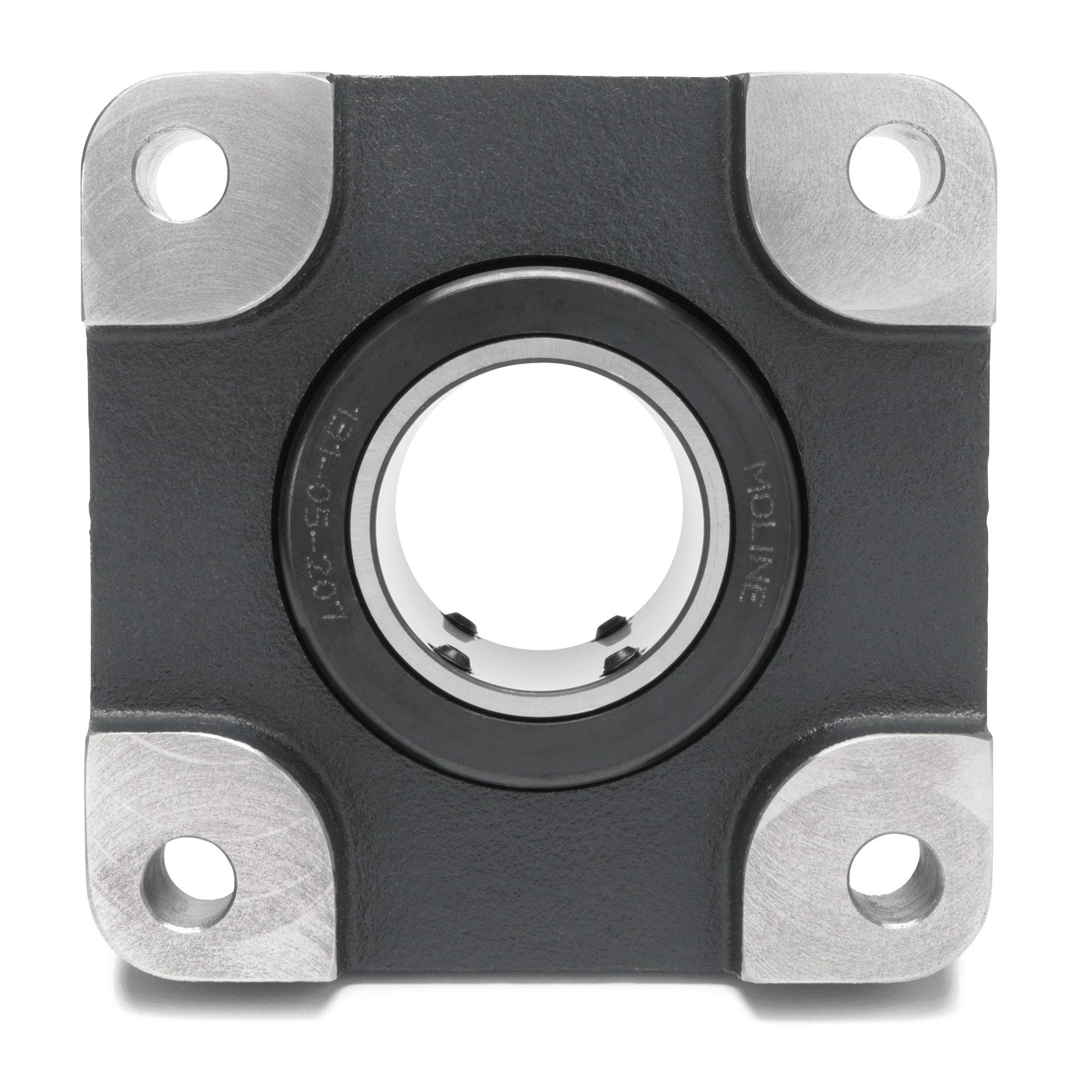

Moline Bearing 19311400 MOL19311400
Moline Bearing 19311400 Type E Flange Mount Bearing, 4 in Dia Bore, 7-3/4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 10-1/4 in OAL/Dia
- Manufacturer: Moline Bearing
- Brand Name: Moline Bearing
- Part Number: MOL19311400
- MPN: 19311400
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: EACH
-
Price:
Moline Bearing, 19311400, Flange Mount Bearing, Type E, 4 in Bore, 7-3/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 10-1/4 in Overall Length/Diameter, 5-5/8 in Overall Depth, 10-1/4 in Overall Height, Set Screw Locking Device, 26900 lbf Dynamic/154000 lbf Static Load, -40 to 205 deg F
| Bolt Center-to-Center Length | : | 7-3/4 in |
| Bore Diameter | : | 4 in |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 26900 lbf Dynamic/154000 lbf Static |
| Locking Device | : | Set Screw |
| Overall Depth | : | 5-5/8 in |
| Overall Height | : | 10-1/4 in |
| Overall Length/Diameter | : | 10-1/4 in |
| Temperature Rating | : | -40 to 205 deg F |
| Type | : | Type E |
