Midland Industries 57043 MID57043

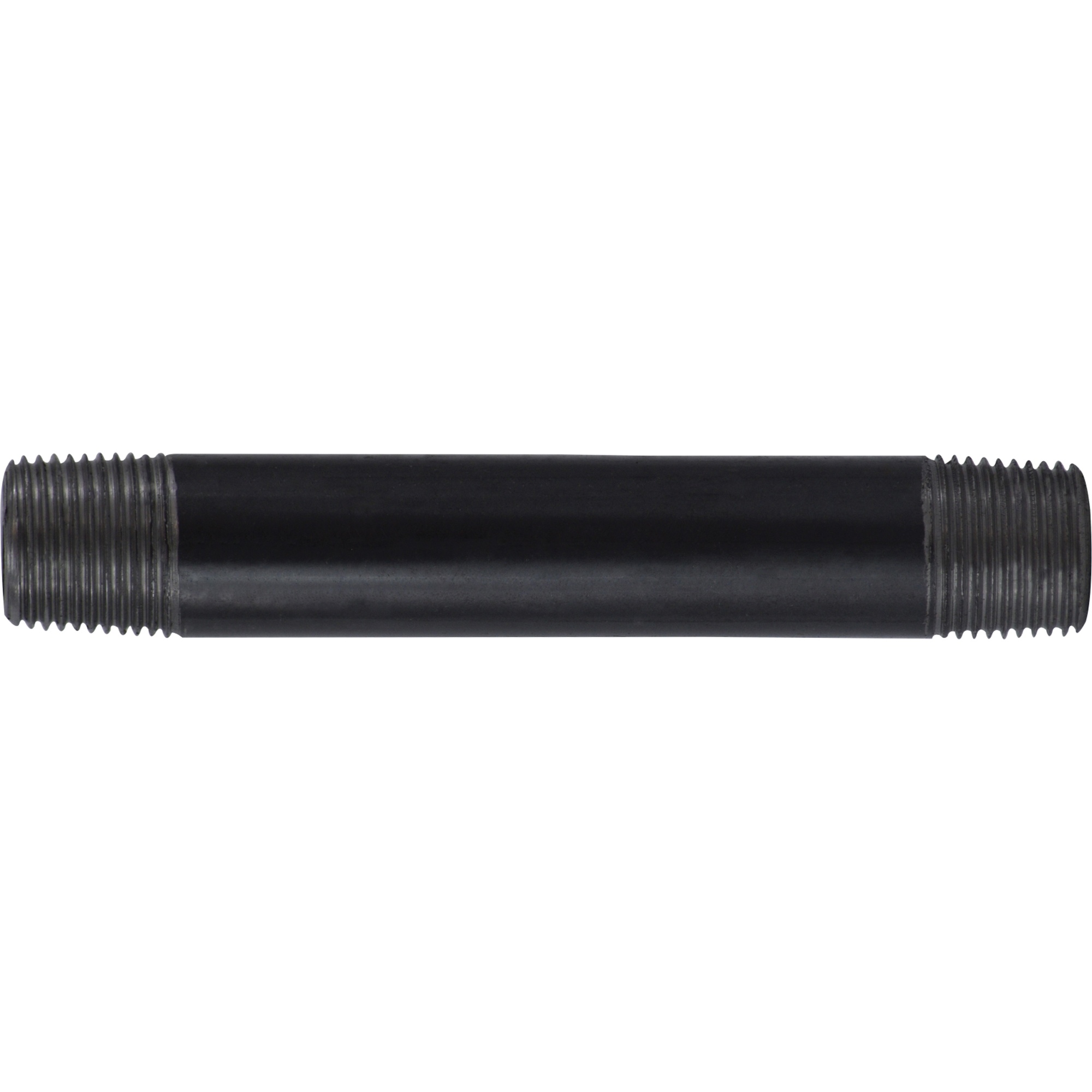

Midland Industries 57043 Standard Pipe Nipple, 3/8 in Nominal, NPT End Style, 2-1/2 in L, Steel, Black, SCH 40/STD, Seamless/Welded, Import
- Manufacturer: Midland Industries
- Brand Name: Midland Industries
- Part Number: MID57043
- MPN: 57043
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Midland Industries Pipe Nipple, Standard, 3/8 in Nominal Size, NPT, 2-1/2 in Length, SCH 40/STD, -200 to 150 deg F, Seamless/Welded, Steel, Black, Import
| Domestic/Import | : | Import |
| End Style | : | NPT |
| Finish | : | Black |
| Length | : | 2-1/2 in |
| Material | : | Steel |
| Method of Manufacture | : | Seamless/Welded |
| Nominal Size | : | 3/8 in |
| Schedule Rating | : | SCH 40/STD |
| Temperature Rating | : | -200 to 150 deg F |
| Type | : | Standard |
- 0.091 in Wall Thickness
- All pipe is hydrostatic tested
- Steel and wrought iron welded
- Protected against oxidation with varnish coating
- 0.493 in ID x 0.675 in OD
- All pipe is roller cut, a visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut
- 33.7 kg/sq-mm at 48000 psi, 20 kg/sq-mm at 28500 psi tensile strength
- Pipe lengths are cut to a tolerance of + or - 1/16 in of the actual length
- All pipe is chaser thread cut to American standard tapered pipe thread standards
- This is 3/4 in taper per foot
- Pipe is visually inspected for roundness of threads and other visual faults as it is removed from the threading machine
- Carbon 0.25%, Manganese 0.95%
