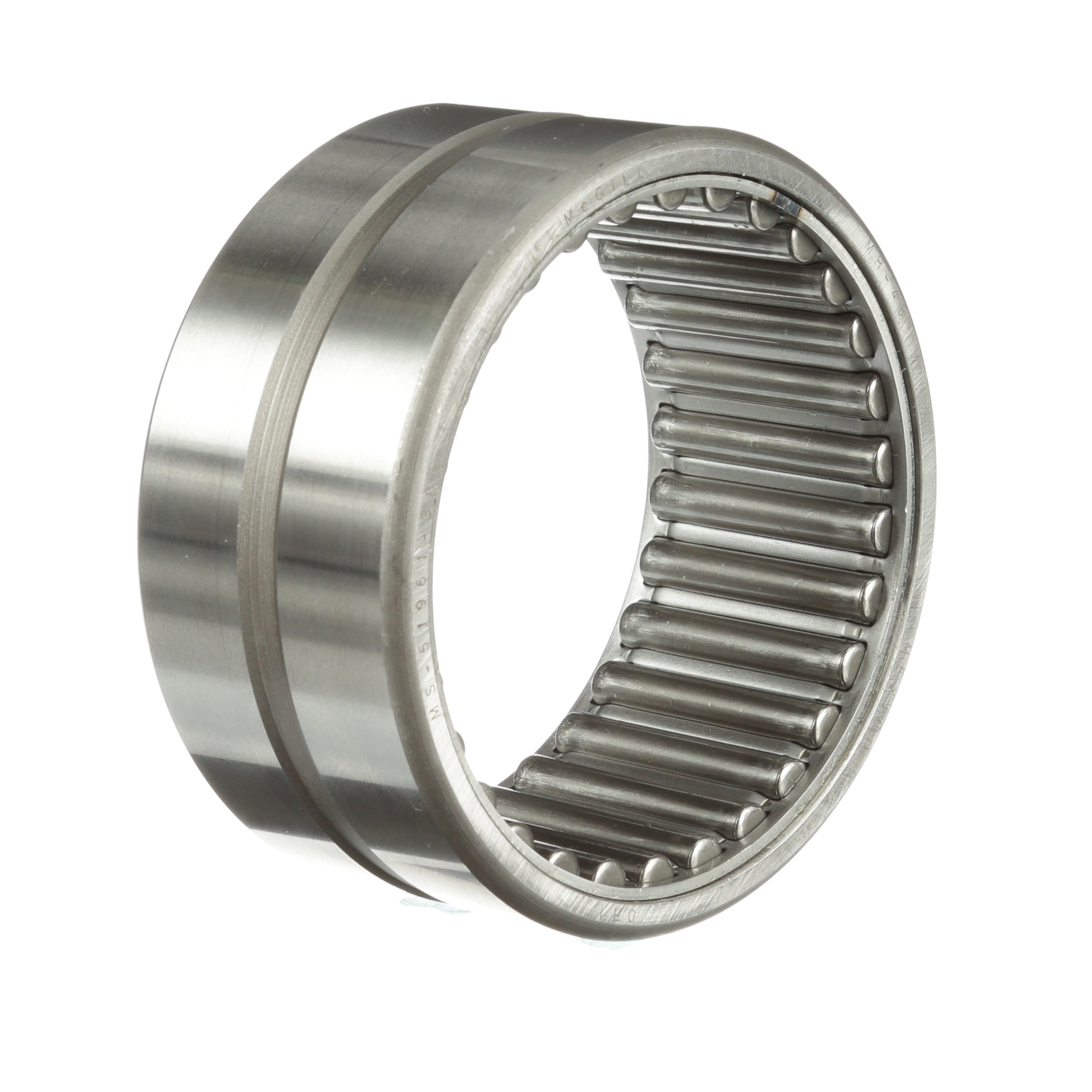

McGill® 5454800000 MCGMR48

McGill® CAGEROL® machined race needle bearings are manufactured from bearing quality steel. Most sizes use crowned or end relieved, rollers to help reduce end stresses and allows for greater misalignment. The rollers are separated by a steel retainer (cage) to help achieve higher speeds and provide a lubricant reservoir. CAGEROL® bearings are constructed with radial lubrication hole and groove on the outer and optional inner raceway (MI series) for relubrication through the housing or shaft. Other options include a variety of seal configurations to either help prevent contaminant entry or contain the lubricant.

McGill® CAGEROL® Unmounted Needle Roller Bearing, Heavy Duty Standard, Series: MR Series, 3 in Bore Dia, 3-3/4 in Outside Dia, 1 Row, 1-3/4 in W, Unsealed Closure, 30300 lb Dynamic/63400 lb Static, 52100 Steel Bearing, Steel Cage, 4000 rpm Maximum, -20 to 250 deg F

• Machined outer race
• Needle roller with end relief
• Annular lubrication groove and holes
• Factory grease f

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_0304046000_Catalog.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_5454000000_Specification_Sheet.pdf
