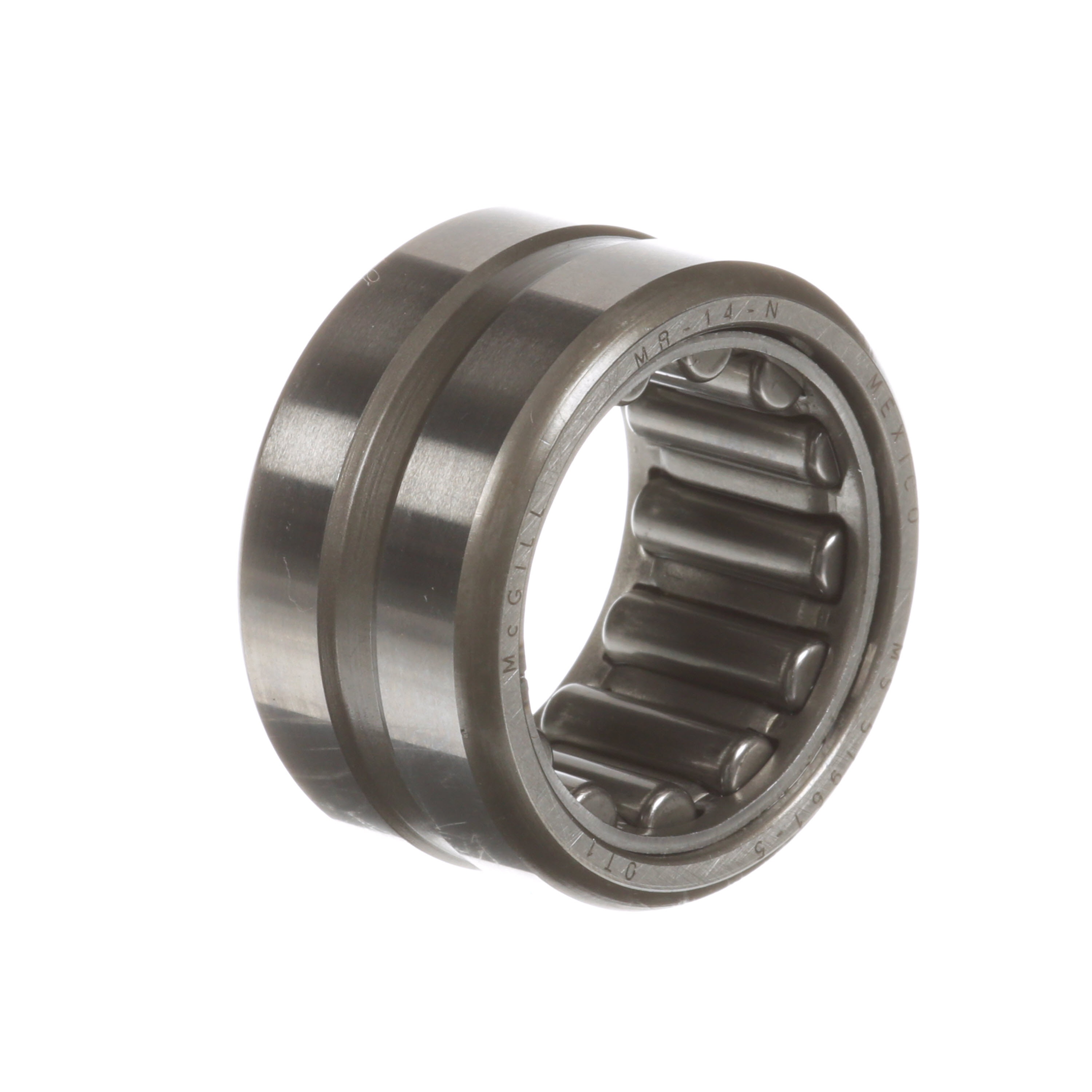

McGill® 5451460000 MCGMR14N
McGill® CAGEROL® 5451460000 MR Series Heavy Duty Narrow Unmounted Needle Roller Bearing, 7/8 in Dia Bore, 1-3/8 in OD, 1 Row, 3/4 in W, 5280 lb Dynamic/6000 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: McGill®
- Part Number: MCGMR14N
- Alt Part Number: MR 14 N
- MPN: 5451460000
- UPC: 726166065225
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
McGill® CAGEROL® machined race needle bearings are manufactured from bearing quality steel. Most sizes use crowned or end relieved, rollers to help reduce end stresses and allows for greater misalignment. The rollers are separated by a steel retainer (cage) to help achieve higher speeds and provide a lubricant reservoir. CAGEROL® bearings are constructed with radial lubrication hole and groove on the outer and optional inner raceway (MI series) for relubrication through the housing or shaft. Other options include a variety of seal configurations to either help prevent contaminant entry or contain the lubricant.
McGill® CAGEROL® Unmounted Needle Roller Bearing, Heavy Duty Narrow, Series: MR Series, 7/8 in Bore Dia, 1-3/8 in Outside Dia, 1 Row, 3/4 in W, Unsealed Closure, 5280 lb Dynamic/6000 lb Static, 52100 Steel Bearing, Steel Cage, 13750 rpm Maximum, -20 to 250 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 7/8 in |
| Cage Material | : | Steel |
| Closure Type | : | Unsealed |
| Load Capacity | : | 5280 lb Dynamic/6000 lb Static |
| Maximum Speed | : | 13750 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 1-3/8 in |
| Series | : | MR Series |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Heavy Duty Narrow |
| Width | : | 3/4 in |
- Machined outer race
- Needle roller with end relief
- Annular lubrication groove and holes
- Factory grease fill
- Narrow width
