McGill® 5004040000 MCGGR40RS

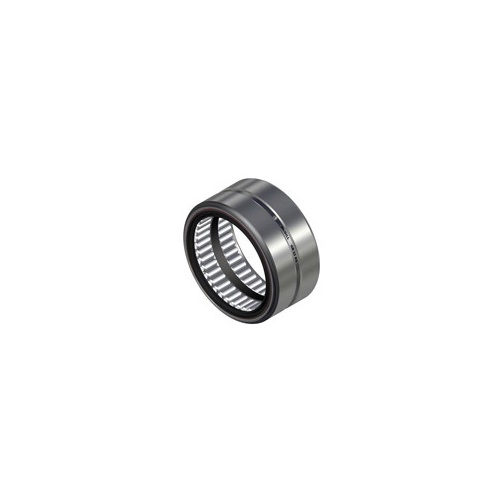

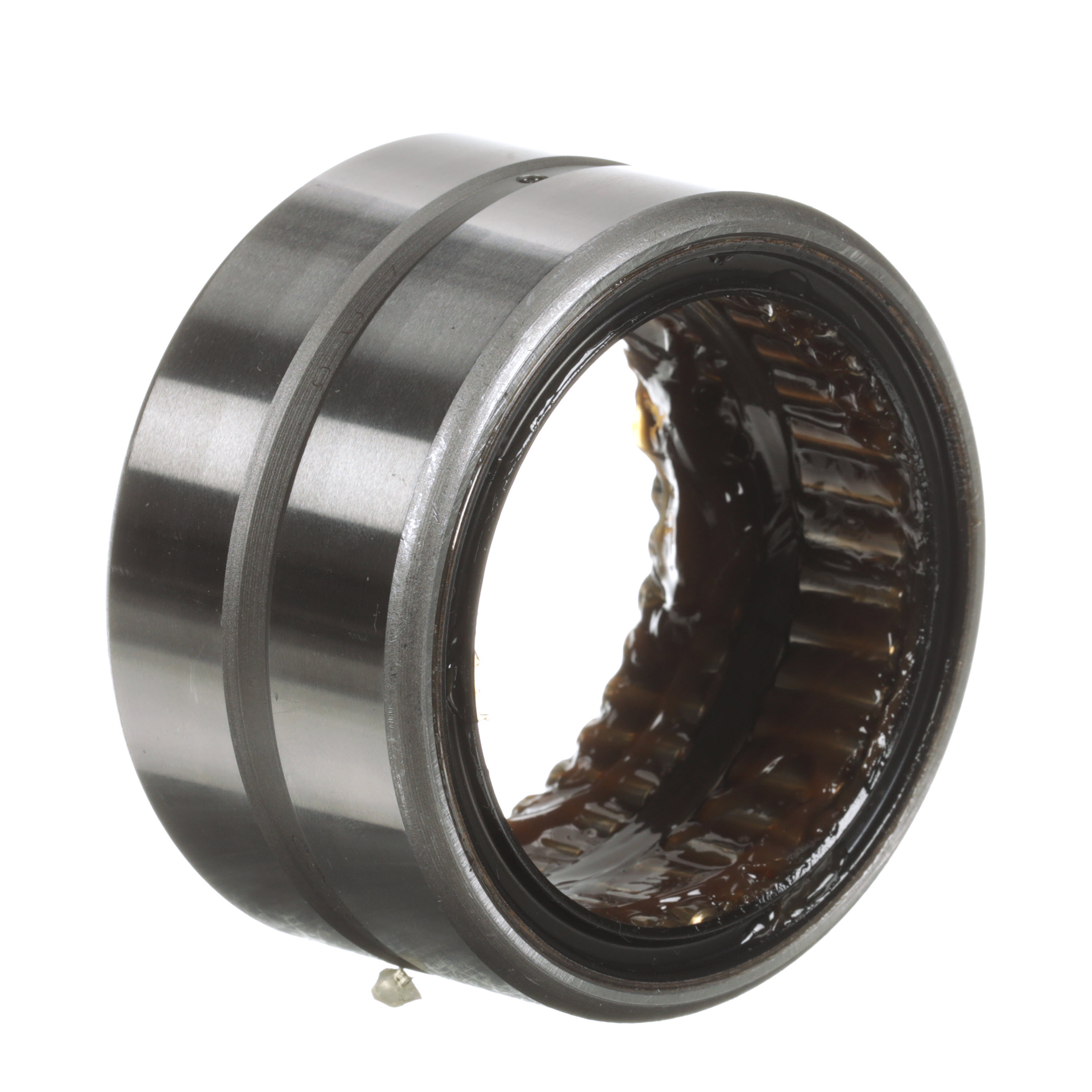

McGill® GUIDEROL® 5004040000 GR Series Heavy Duty Standard Unmounted Needle Roller Bearing, 2-1/2 in Dia Bore, 3-1/4 in OD, 2 Rows, 1-3/4 in W, 16200 lb Dynamic/54500 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: McGill®
- Part Number: MCGGR40RS
- Alt Part Number: GR 40 RS
- MPN: 5004040000
- UPC: 726166062736
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
McGill® GUIDEROL® machined race full complement needle bearings are manufactured from bearing quality steel with unique roller and race design to provide center guided rolling elements for higher radial load capacity and is well suited for oscillating applications. GUIDEROL® bearings are constructed with radial lubrication hole and groove on the outer and optional inner raceway (MI series) for relubrication through the housing or shaft. Other options include a variety of seal configurations to either help prevent contaminant entry or contain the lubricant.
McGill® GUIDEROL® Unmounted Needle Roller Bearing, Heavy Duty Standard, Series: GR Series, 2-1/2 in Bore Dia, 3-1/4 in Outside Dia, 2 Rows, 1-3/4 in W, Single Sealed Closure, 16200 lb Dynamic/54500 lb Static, Steel Bearing, Rubber Seal, Steel Cage, 1530 rpm Maximum, -20 to 250 deg F
| Bearing Material | : | Steel |
| Bore Diameter | : | 2-1/2 in |
| Cage Material | : | Steel |
| Closure Type | : | Single Sealed |
| Load Capacity | : | 16200 lb Dynamic/54500 lb Static |
| Maximum Speed | : | 1530 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 3-1/4 in |
| Seal Material | : | Rubber |
| Series | : | GR Series |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Heavy Duty Standard |
| Width | : | 1-3/4 in |
- Machined outer race
- Unique center guided needle rollers
- Annular lubrication groove and holes
- Factory grease fill
- Retaining ring and center rail
- Single seal with lip turned out
Catalog
