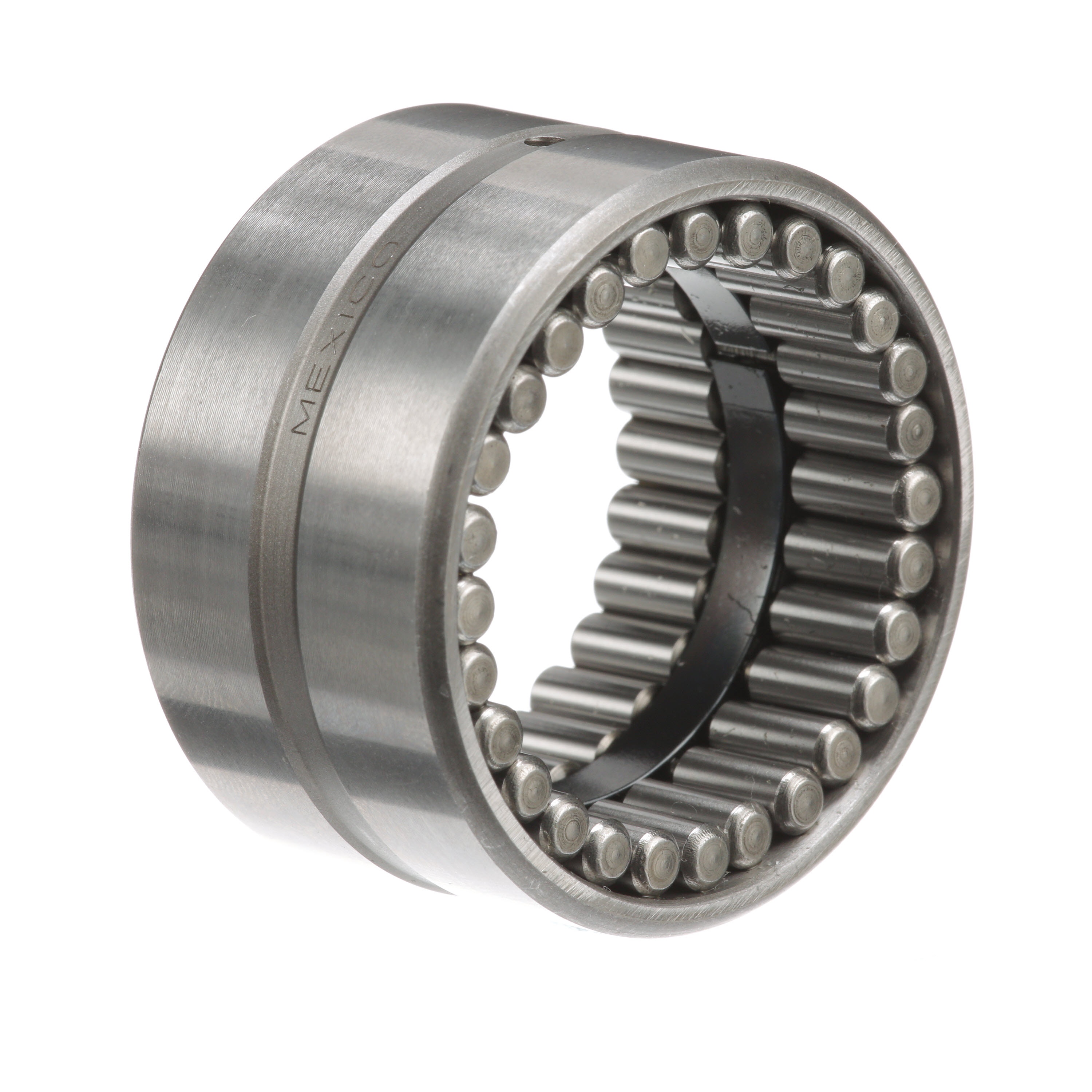

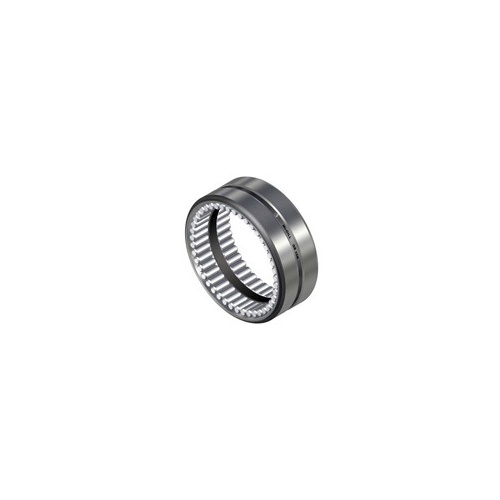

McGill® 5002060000 MCGGR20N
McGill® GUIDEROL® 5002060000 GR Series Heavy Duty Narrow Unmounted Needle Roller Bearing, 1-1/4 in Dia Bore, 1-3/4 in OD, 2 Rows, 1 in W, 6500 lb Dynamic/17000 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: McGill®
- Part Number: MCGGR20N
- Alt Part Number: GR 20 N
- MPN: 5002060000
- UPC: 726166061883
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: 1/EA
-
Price:
McGill® GUIDEROL® machined race full complement needle bearings are manufactured from bearing quality steel with unique roller and race design to provide center guided rolling elements for higher radial load capacity and is well suited for oscillating applications. GUIDEROL® bearings are constructed with radial lubrication hole and groove on the outer and optional inner raceway (MI series) for relubrication through the housing or shaft. Other options include a variety of seal configurations to either help prevent contaminant entry or contain the lubricant.
McGill® GUIDEROL® Unmounted Needle Roller Bearing, Heavy Duty Narrow, Series: GR Series, 1-1/4 in Bore Dia, 1-3/4 in Outside Dia, 2 Rows, 1 in W, Unsealed Closure, 6500 lb Dynamic/17000 lb Static, Steel Bearing, Steel Cage, 4800 rpm Maximum, -20 to 250 deg F
| Bearing Material | : | Steel |
| Bore Diameter | : | 1-1/4 in |
| Cage Material | : | Steel |
| Closure Type | : | Unsealed |
| Load Capacity | : | 6500 lb Dynamic/17000 lb Static |
| Maximum Speed | : | 4800 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 1-3/4 in |
| Series | : | GR Series |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Heavy Duty Narrow |
| Width | : | 1 in |
- Machined outer race
- Unique center guided needle rollers
- Annular lubrication groove and holes
- Factory grease fill
- Retaining ring and center rail
- Narrow width
Catalog
