McGill® 4060100000 MCGCYR3/4

The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.

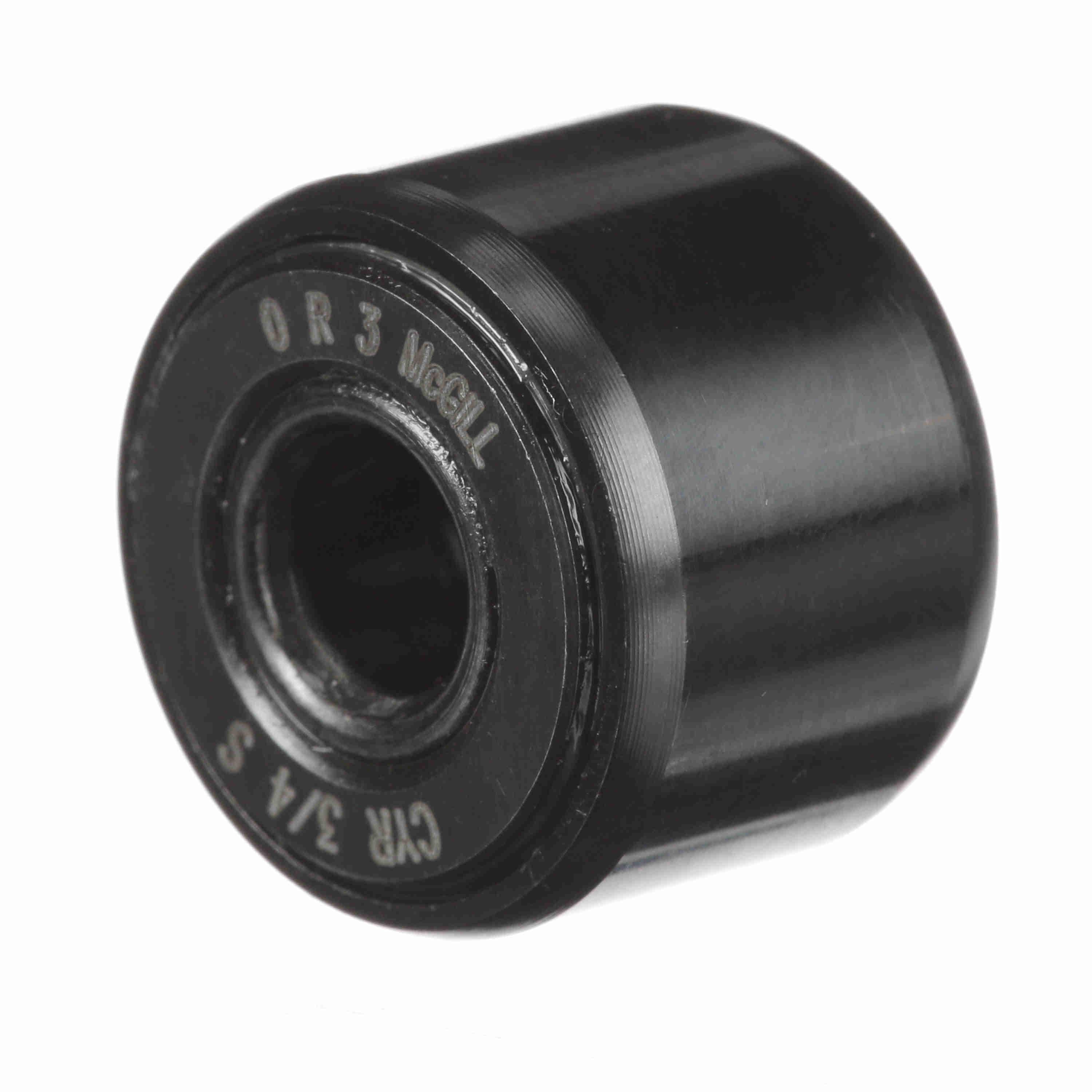

McGill® CAMROL® Unmounted Cam Yoke Roller Bearing, Cylindrical OD, Series: CYR, 1/4 in Bore Dia, 3/4 in Roller Dia, 1/2 in Roller Width, 9/16 in Overall Width, 1660 lb Dynamic/2100 lb Static, Unsealed Closure, 6400 rpm Maximum, -20 to 250 deg F, Chrome Steel Roller, Black Oxide

• Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
• A heavy sectioned outer race design to help withstand shock loading of cam follower operation
• Inner studs are induction heat treated in the roller path and flange surfaces
• Black oxide finish on all external surfaces helps inhibit corrosion
• The annular groove in the outer raceway provides a lubrication reservoir which helps prolong lubrication intervals
• Needle roller bearing element
• Without Seal

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_4140510000_Specification_Sheet.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_4145510000_Catalog.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_4145510000_Manual.pdf
