McGill® 2344600000 MCGFCF3 1/2
  1. pin-int

McGill® 2344600000 MCGFCF3 1/2

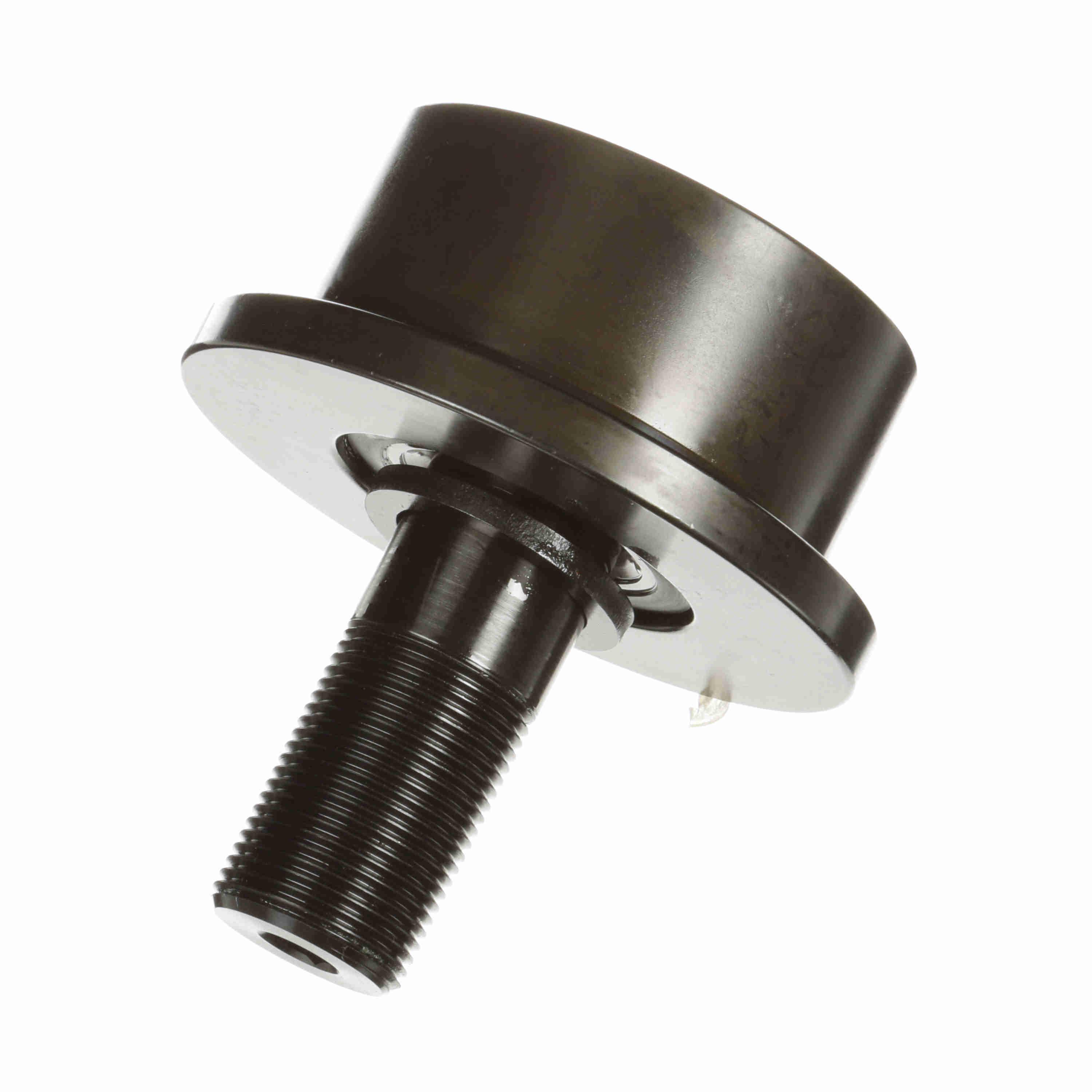

McGill® TRAKROL® 2344600000 FCF Flanged Cam Follower, 3-1/2 in Dia Roller, 2 in W Roller, 4-7/16 in Dia Flange, 1-1/4 in Dia Stud, 2-3/4 in L Stud

  • Manufacturer: Regal Rexnord
  • Brand Name: McGill®
  • Part Number: MCGFCF3 1/2
  • Alt Part Number: FCF 3 1/2
  • MPN: 2344600000
  • UPC: 726166040093
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

TRAKROL® bearings feature black oxide treated bearing steel. They utilize either a precision ball or tapered roller bearing insert for longer operating life under combination radial and thrust loads. The capacity for combination loads allows the TRAKROL® bearing to be available in plain (cylindrical), V-groove and flanged outside diameter in both stud and yoke styles. Small sizes less than 3 in outside diameter or point diameter use sealed ball bearing inserts. They also use a NYLAPLATE® seal for additional protection. Stud type configurations utilize a metal end plug seal on the roller face providing a long lasting seal. Both bearing types provide a large internal grease reservoir along with special sealing. This makes TRAKROL® bearings an excellent choice where reduced maintenance is required.

McGill® TRAKROL® Cam Follower, Flanged, Series: FCF, 3-1/2 in Roller Diameter, 2 in Roller Width, 4-7/16 in Diameter Flange, 19/32 in Flange Thickness, 1-1/4 in Stud Diameter, 2-3/4 in Stud Length, 1-1/4-12 Thread, 1-3/4 in Thread Length, 14300 lb Dynamic/16000 lb Static/5790 lb Thrust Load, 820 rpm Maximum, -20 to 250 deg F, Standard Stud, Double Seal Closure, Chrome Steel Roller, 8620H Steel Stud, Black Oxide

Closure Type      :      Double Seal
Finish      :      Black Oxide
Flange Diameter      :      4-7/16 in
Flange Thickness      :      19/32 in
Load Capacity      :      14300 lb Dynamic/16000 lb Static/5790 lb Thrust
Maximum Speed      :      820 rpm
Roller Diameter      :      3-1/2 in
Roller Material      :      Chrome Steel
Roller Width      :      2 in
Series      :      FCF
Stud Diameter      :      1-1/4 in
Stud Length      :      2-3/4 in
Stud Material      :      8620H Steel
Stud Type      :      Standard
Temperature Rating      :      -20 to 250 deg F
Thread Length      :      1-3/4 in
Thread Size      :      1-1/4-12
Type      :      Flanged
  • Item Features 01=Precision ball or tapered roller bearing inserts allow for combination radial and thrust loads
  • Item Features 02=A heavy sectioned outer race design to help withstand shock loading of cam follower operation
  • Item Features 03=A ductile stem on stud type versions that provides toughness
  • Item Features 04=The threads are manufactured to a class 2 tolerance
  • Item Features 05=Bearings are supplied pre-lubricated and maintenance free
  • Item Features 06=Ball and tapered roller bearings have rubber lip contact seal
  • Item Features 07=NYLAPLATE® seal present on 1-1/2 to 2-3/3 in stud type version
  • Item Features 08=End plug present at outboard side of stud type versions to help keep contaminants out
  • Item Features 09=P0 equivalent precision rating
  • Item Features 10=Tapered roller bearing insert
