McGill® 2150502000 MCGCFH1 5/8B
  1. pin-int

McGill® 2150502000 MCGCFH1 5/8B

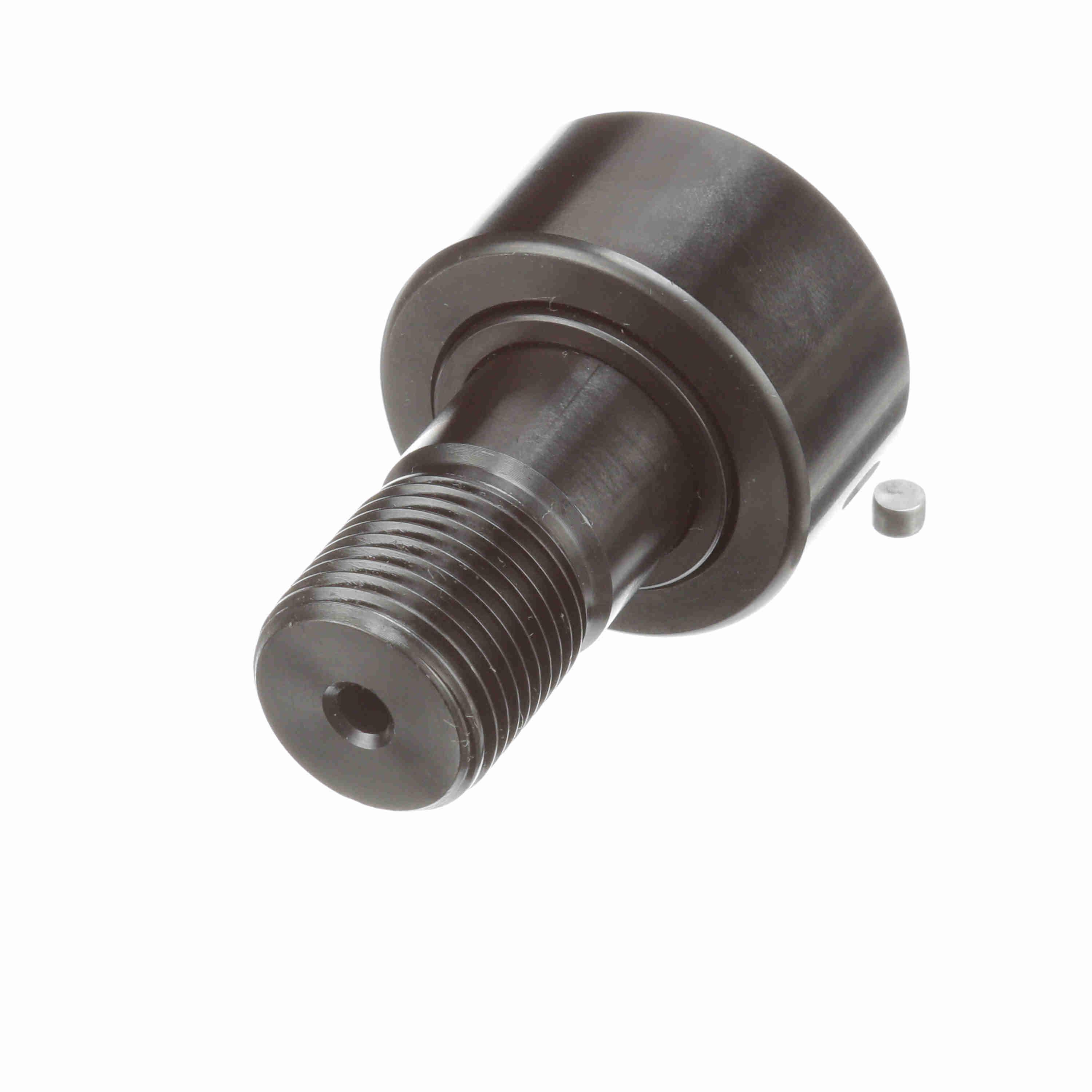

McGill® CAMROL® 2150502000 CFH Cylindrical OD Cam Follower, 1-5/8 in Dia x 7/8 in W Roller, 7/8 in Dia x 1-1/2 in L Stud, Chrome Steel Roller

  • Manufacturer: Regal Rexnord
  • Brand Name: McGill®
  • Part Number: MCGCFH1 5/8B
  • Alt Part Number: CFH 1 5/8 B
  • MPN: 2150502000
  • UPC: 726166036201
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.

McGill® CAMROL® Cam Follower, Cylindrical OD, Series: CFH, 1-5/8 in Roller Diameter, 7/8 in Roller Width, 7/8 in Stud Diameter, 1-1/2 in Stud Length, 7/8-14 UNF Thread, 3/4 in Thread Length, 4840 lb Dynamic/11200 lb Static Load, 2350 rpm Maximum, -20 to 250 deg F, Heavy Stud, Unsealed Closure, Hex Head, Chrome Steel Roller, 52100 Steel Stud, Black Oxide

Closure Type      :      Unsealed
Finish      :      Black Oxide
Head Type      :      Hex
Load Capacity      :      4840 lb Dynamic/11200 lb Static
Maximum Speed      :      2350 rpm
Roller Diameter      :      1-5/8 in
Roller Material      :      Chrome Steel
Roller Width      :      7/8 in
Series      :      CFH
Stud Diameter      :      7/8 in
Stud Length      :      1-1/2 in
Stud Material      :      52100 Steel
Stud Type      :      Heavy
Temperature Rating      :      -20 to 250 deg F
Thread Length      :      3/4 in
Thread Size      :      7/8-14 UNF
Type      :      Cylindrical OD
  • Item Features 01=Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
  • Item Features 02=It provides improved resistance to shock loading versus caged needle bearing
  • Item Features 03=A heavy sectioned outer race design to help withstand shock loading of cam follower operation
  • Item Features 04=Inner studs are induction heat treated in the roller path and flange surfaces
  • Item Features 05=Our sealed bearing option helps extend bearing life by utilizing a lubrication groove and LUBRI-DISC® seals
  • Item Features 06=Bearings are supplied pre-lubricated with lithium soap thickened grease
  • Item Features 07=The annular groove in the outer raceway provides a lubrication reservoir which increases the pre-lubricated life of the bearing
  • Item Features 08=The threads are manufactured to a class 2 tolerance
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_2141510000_Specification_Sheet.pdf
