McGill® 2110212000 MCGCFE1 1/8SB
  1. pin-int

McGill® 2110212000 MCGCFE1 1/8SB

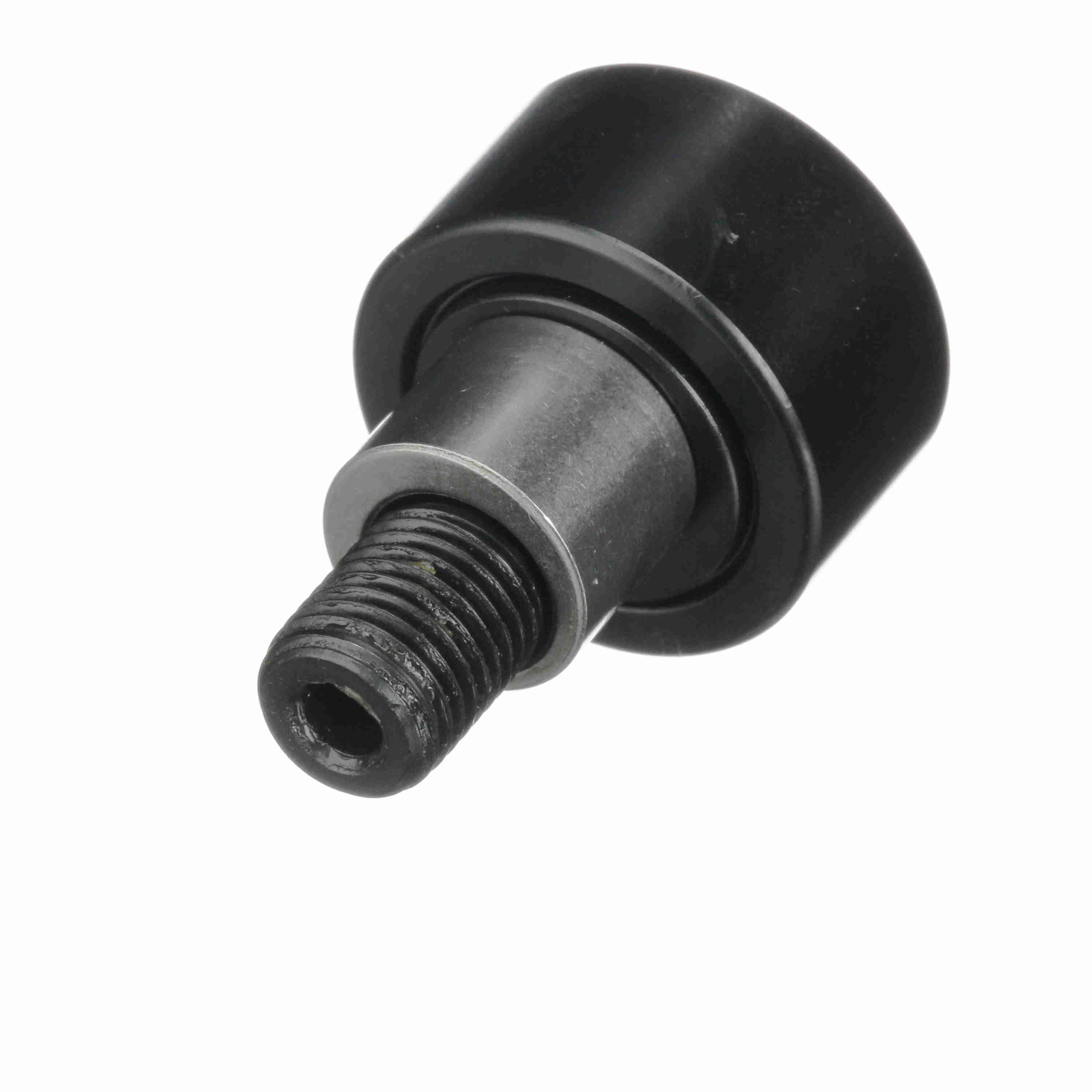

McGill® CAMROL® 2110212000 CFE Cylindrical OD Cam Follower With LUBRI-DISC® Seal, 1-1/8 in Dia x 5/8 in W Roller, 7/16 in Dia x 1 in L Stud, Chrome Steel Roller

  • Manufacturer: Regal Rexnord
  • Brand Name: McGill®
  • Part Number: MCGCFE1 1/8SB
  • Alt Part Number: CFE 1 1/8 SB
  • MPN: 2110212000
  • UPC: 726166033965
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.

McGill® CAMROL® Cam Follower, Cylindrical OD, Series: CFE, 1-1/8 in Roller Diameter, 5/8 in Roller Width, 7/16 in Stud Diameter, 1 in Stud Length, 7/16-20 UNC Thread, 1/2 in Thread Length, 2225 lb Dynamic/1800 lb Static Load, 3400 rpm Maximum, -20 to 250 deg F, Eccentric Stud, Sealed Closure, Hex Head, Chrome Steel Roller, 8620H Steel Stud, Black Oxide

Closure Type      :      Sealed
Finish      :      Black Oxide
Head Type      :      Hex
Load Capacity      :      2225 lb Dynamic/1800 lb Static
Maximum Speed      :      3400 rpm
Roller Diameter      :      1-1/8 in
Roller Material      :      Chrome Steel
Roller Width      :      5/8 in
Series      :      CFE
Stud Diameter      :      7/16 in
Stud Length      :      1 in
Stud Material      :      8620H Steel
Stud Type      :      Eccentric
Temperature Rating      :      -20 to 250 deg F
Thread Length      :      1/2 in
Thread Size      :      7/16-20 UNC
Type      :      Cylindrical OD
  • Item Features 01=Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
  • Item Features 02=It provides improved resistance to shock loading versus caged needle bearing
  • Item Features 03=A heavy sectioned outer race design to help withstand shock loading of cam follower operation
  • Item Features 04=Inner studs are induction heat treated in the roller path and flange surfaces
  • Item Features 05=Our sealed bearing option helps extend bearing life by utilizing a lubrication groove and LUBRI-DISC® seals
  • Item Features 06=Bearings are supplied pre-lubricated with lithium soap thickened grease
  • Item Features 07=The annular groove in the outer raceway provides a lubrication reservoir which increases the pre-lubricated life of the bearing
  • Item Features 08=The threads are manufactured to a class 2 tolerance
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_2146710000_Catalog.pdf
