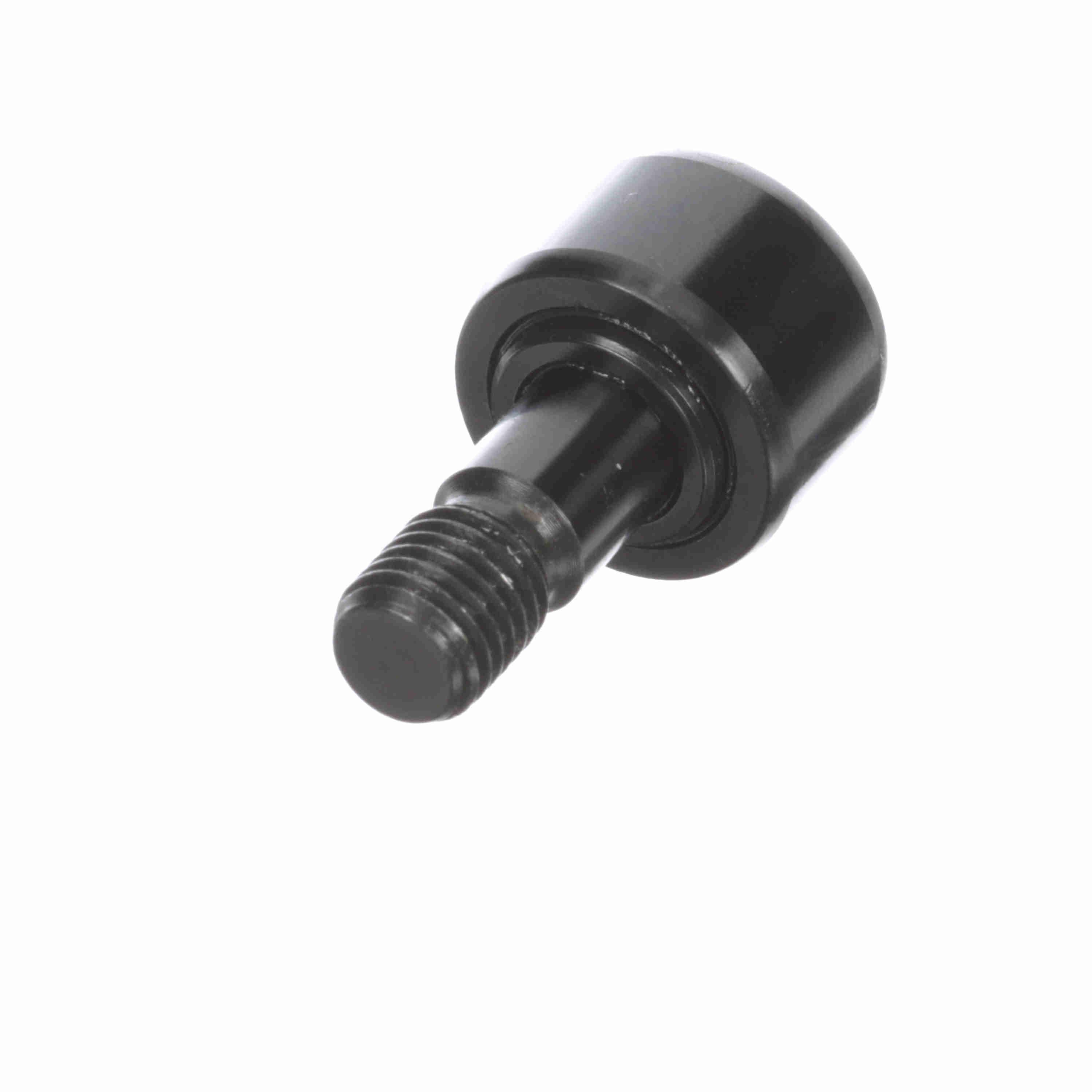

McGill® 2050512000 MCGCFH11/16SB

The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.

McGill® CAMROL® Cam Follower, Cylindrical OD, Series: CFH, 11/16 in Roller Diameter, 7/16 in Roller Width, 5/16 in Stud Diameter, 3/4 in Stud Length, 5/16-24 UNF Thread, 5/16 in Thread Length, 955 lb Dynamic/1000 lb Static Load, 8300 rpm Maximum, -20 to 250 deg F, Heavy Stud, Sealed Closure, Hex Head, Chrome Steel Roller, 52100 Steel Stud, Black Oxide

• Item Features 01=Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
• Item Features 02=It provides improved resistance to shock loading versus caged needle bearing
• Item Features 03=A heavy sectioned outer race design to help withstand shock loading of cam follower operation
• Item Features 04=Inner studs are induction heat treated in the roller path and flange surfaces
• Item Features 05=Our sealed bearing option helps extend bearing life by utilizing a lubrication groove and LUBRI-DISC® seals
• Item Features 06=Bearings are supplied pre-lubricated with lithium soap thickened grease
• Item Features 07=The annular groove in the outer raceway provides a lubrication reservoir which increases the pre-lubricated life of the bearing
• Item Features 08=The threads are manufactured to a class 2 tolerance

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McGill_4145510000_Manual.pdf
