McGill® 2040160000 MCGCF5/8N

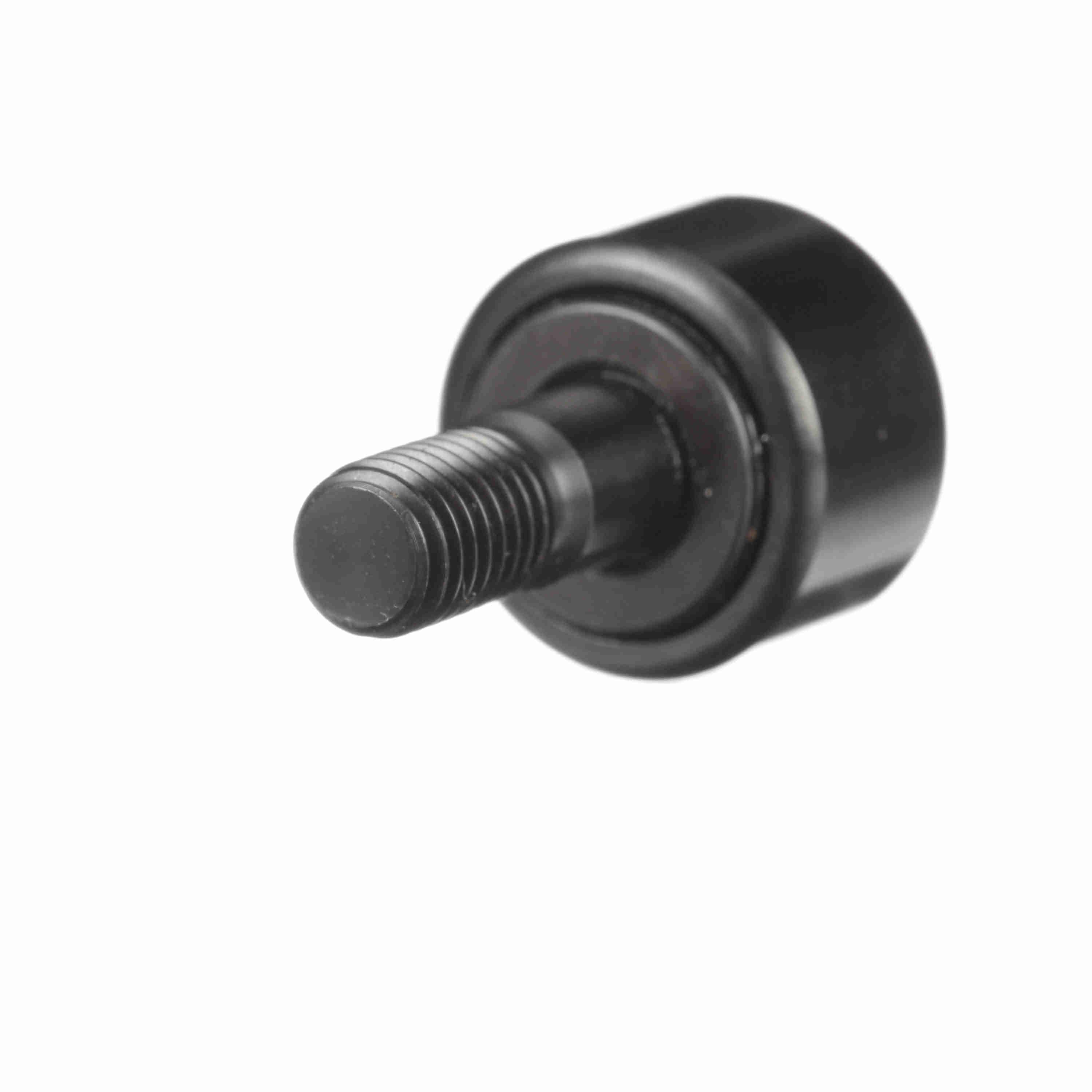

McGill® CAMROL® 2040160000 CF Series Cylindrical OD Cam Follower, 5/8 in Dia x 0.406 in W Roller, 1/4 in Dia x 5/8 in L Stud, Chrome Steel Roller
- Manufacturer: Regal Rexnord
- Brand Name: McGill®
- Part Number: MCGCF5/8N
- Alt Part Number: CF 5/8 N
- MPN: 2040160000
- UPC: 726166030919
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.
McGill® CAMROL® Cam Follower, Cylindrical OD, Series: CF Series, 5/8 in Roller Diameter, 0.406 in Roller Width, 1/4 in Stud Diameter, 5/8 in Stud Length, 1/4-28 UNC Thread, 5/16 in Thread Length, 930 lb Dynamic/600 lb Static Load, 9200 rpm Maximum, -20 to 250 deg F, Standard Stud, Unsealed Closure, Slotted Head, Chrome Steel Roller, 8620H Steel Stud, Black Oxide
| Closure Type | : | Unsealed |
| Finish | : | Black Oxide |
| Head Type | : | Slotted |
| Load Capacity | : | 930 lb Dynamic/600 lb Static |
| Maximum Speed | : | 9200 rpm |
| Roller Diameter | : | 5/8 in |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 0.406 in |
| Series | : | CF Series |
| Stud Diameter | : | 1/4 in |
| Stud Length | : | 5/8 in |
| Stud Material | : | 8620H Steel |
| Stud Type | : | Standard |
| Temperature Rating | : | -20 to 250 deg F |
| Thread Length | : | 5/16 in |
| Thread Size | : | 1/4-28 UNC |
| Type | : | Cylindrical OD |
- Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
- It provides improved resistance to shock loading versus caged needle bearing
- A heavy sectioned outer race design to help withstand shock loading of cam follower operation
- Inner studs are induction heat treated in the roller path and flange surfaces
- Our sealed bearing option helps extend bearing life by utilizing a lubrication groove and LUBRI-DISC® seals
- Bearings are supplied pre-lubricated with lithium soap thickened grease
- The annular groove in the outer raceway provides a lubrication reservoir which increases the pre-lubricated life of the bearing
- The threads are manufactured to a class 2 tolerance
Specification Sheet
