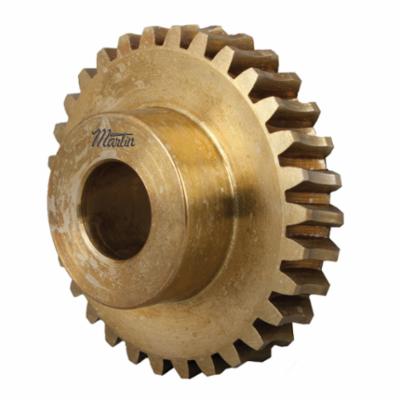

Martin WB1650 MARWB1650
Martin WB1650 Reborable Web Worm Gear, 16 Diametral Pitch, 14.5 deg Pressure Angle, Single Threads, Right Hand Rotation, 50 Teeth, 3-1/8 in Dia Pitch, 3/8 in Dia Bore, 5/16 in W Face, Bronze
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARWB1650
- MPN: WB1650
- UPC: 697950051291
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Worms and worm gears are used to power right angle, nonintersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.
Martin Worm Gear, Reborable Web, 3/8 in Bore Dia, 3.265 in Outside Dia, Single Number of Threads, 50 Teeth, 16 Diametral Pitch, 3-1/8 in, 5/16 in Face Width, Right Hand Direction of Rotation, 7/8 in Hub Dia, 0.438 in Hub Projection, 3/4 in Overall Length, 14.5 deg Pressure Angle, Bronze
| Bore Diameter | : | 3/8 in |
| Diametral Pitch | : | 16 |
| Direction of Rotation | : | Right Hand |
| Face Width | : | 5/16 in |
| Hub Diameter | : | 7/8 in |
| Hub Projection | : | 0.438 in |
| Material | : | Bronze |
| Number of Teeth | : | 50 |
| Number of Threads | : | Single |
| Outside Diameter | : | 3.265 in |
| Overall Length | : | 3/4 in |
| Pitch Diameter | : | 3-1/8 in |
| Pressure Angle | : | 14.5 deg |
| Type | : | Reborable Web |
- Commercial Class Gear. AGMA 6-8
