Martin WA30 MARWA30

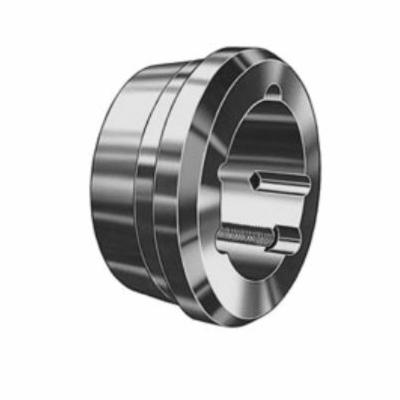

Martin WA30 TB Bushed Type WA Weld-On Hub, 4-1/4 in Bore, 5-1/2 in OD, 4 in Bolt Circle Diameter, 3 in OAL, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARWA30
- MPN: WA30
- UPC: 697950040394
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Weld on hubs are suitable for use in many applications, such as welding to plate steel sprockets. Type WA weld-on hubs are made of steel, drilled, tapped and taper bored to receive tapered bushings. They are very useful for welding into fan rotors, pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft.
Martin Weld-On Hub, TB Bushed Type WA, 4-1/4 in Bore Dia, 5-1/2 in Outside Dia, 5-1/8 in Pilot Dia, 4 in Bolt Circle Dia, 2 Bolt Holes, 3 in Overall Length, Steel
| Bolt Circle Diameter | : | 4 in |
| Bore Diameter | : | 4-1/4 in |
| Material | : | Steel |
| Number of Bolt Holes | : | 2 |
| Outside Diameter | : | 5-1/2 in |
| Overall Length | : | 3 in |
| Pilot Diameter | : | 5-1/8 in |
| Type | : | TB Bushed Type WA |
- For use with type 3030 bushing
- Used to adapt components for taper bushings
- Precise machining and processes ensure consistent finish and high quality
