Martin W1040Q MARW1040Q

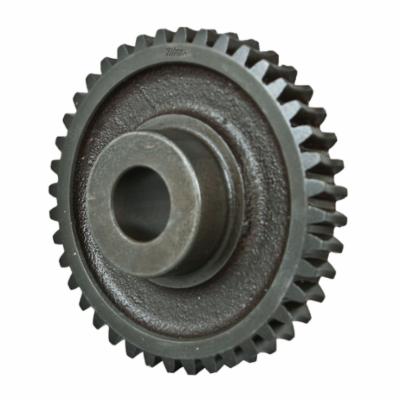

Martin W1040Q Reborable Web Worm Gear, 10 Diametral Pitch, 14.5 deg Pressure Angle, Quadruple Threads, Right Hand Rotation, 40 Teeth, 4 in Dia Pitch, 0.875 to 0.939 in Dia Bore, 5/8 in W Face, Cast Iron
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARW1040Q
- MPN: W1040Q
- UPC: 697950050942
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Worms and worm gears are used to power right angle, nonintersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.
Martin Worm Gear, Reborable Web, 0.875 to 0.939 in Bore Dia, 4.224 in Outside Dia, Quadruple Number of Threads, 40 Teeth, 10 Diametral Pitch, 4 in, 5/8 in Face Width, Right Hand Direction of Rotation, 1-3/4 in Hub Dia, 5/8 in Hub Projection, 1-1/2 in Overall Length, 14.5 deg Pressure Angle, Cast Iron
| Bore Diameter | : | 0.875 to 0.939 in |
| Diametral Pitch | : | 10 |
| Direction of Rotation | : | Right Hand |
| Face Width | : | 5/8 in |
| Hub Diameter | : | 1-3/4 in |
| Hub Projection | : | 5/8 in |
| Material | : | Cast Iron |
| Number of Teeth | : | 40 |
| Number of Threads | : | Quadruple |
| Outside Diameter | : | 4.224 in |
| Overall Length | : | 1-1/2 in |
| Pitch Diameter | : | 4 in |
| Pressure Angle | : | 14.5 deg |
| Type | : | Reborable Web |
- Commercial Class Gear. AGMA 6-8
