Martin TS1012BS 5/8 MARTS1012BS5/8

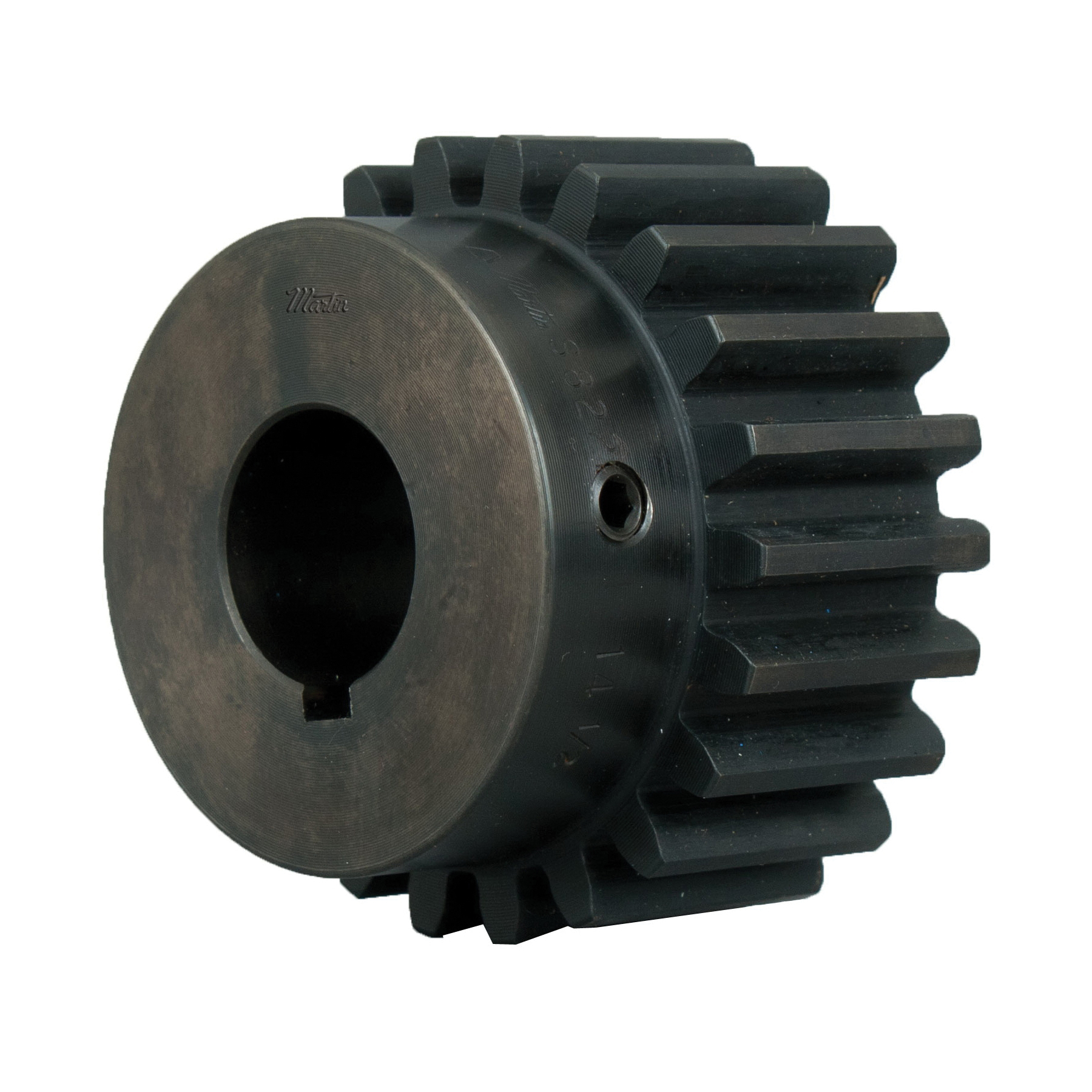

Martin TS1012BS 5/8 Bored to Size Stock Spur Gear, 10 Diametral Pitch, 20 deg Pressure Angle, 1-1/4 in W Face, 12 Teeth, 1.2 in Dia Pitch, 5/8 in Dia Bore, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARTS1012BS5/8
- MPN: TS1012BS 5/8
- UPC: 697950440187
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, Bored to Size, 5/8 in Bore Dia, 1.4 in Outside Dia, 12 Teeth, 10 Diametral Pitch, 1.2 in, 1-1/4 in Face Width, Type B, 0.9063 in Hub Dia, 5/8 in Hub Projection, 1-7/8 in Overall Length, 20 deg Pressure Angle, 0.1875 x 0.0938 in Keyway, Steel
| Bore Diameter | : | 5/8 in |
| Diametral Pitch | : | 10 |
| Face Width | : | 1-1/4 in |
| Hub Diameter | : | 0.9063 in |
| Hub Projection | : | 5/8 in |
| Hub Type | : | Type B |
| Keyway Size | : | 0.1875 x 0.0938 in |
| Material | : | Steel |
| Number of Teeth | : | 12 |
| Outside Diameter | : | 1.4 in |
| Overall Length | : | 1-7/8 in |
| Pitch Diameter | : | 1.2 in |
| Pressure Angle | : | 20 deg |
| Type | : | Bored to Size |
- Shaft ready includes keyway and setscrew
- Precise machining and processes ensure consistent finish and high quality
