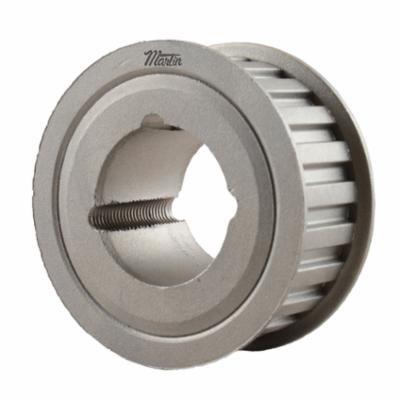

Martin TB40L100 MARTB40L100
Martin TB40L100 Solid Type KF-1 Stock Timing Pulley, 1/2 to 2 in TB Bushed Bore, 4.745 in OD, 40 Grooves, 4.775 in Dia Pitch, 1.063 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARTB40L100
- MPN: TB40L100
- UPC: 697950083902
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type KF-1, TB Bushed Bore, 1/2 to 2 in Bore Dia, 4.745 in Outside Dia, 4.775 in, 40 Grooves, 3/8 in Pitch, 1.063 in Face Width, 4.997 in Flange Dia, 2012 Bushing, 1-3/4 in Overall Length, For Use With: 1 in W Type L Belt, Steel
| Bore Diameter | : | 1/2 to 2 in |
| Bore Type | : | TB Bushed |
| Bushing Type | : | 2012 |
| Face Width | : | 1.063 in |
| Flange Diameter | : | 4.997 in |
| Material | : | Steel |
| Number of Grooves | : | 40 |
| Outside Diameter | : | 4.745 in |
| Overall Length | : | 1-3/4 in |
| Pitch Diameter | : | 4.775 in |
| Pitch | : | 3/8 in |
| Suitable For Use With | : | 1 in W Type L Belt |
| Type | : | Solid Type KF-1 |
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
