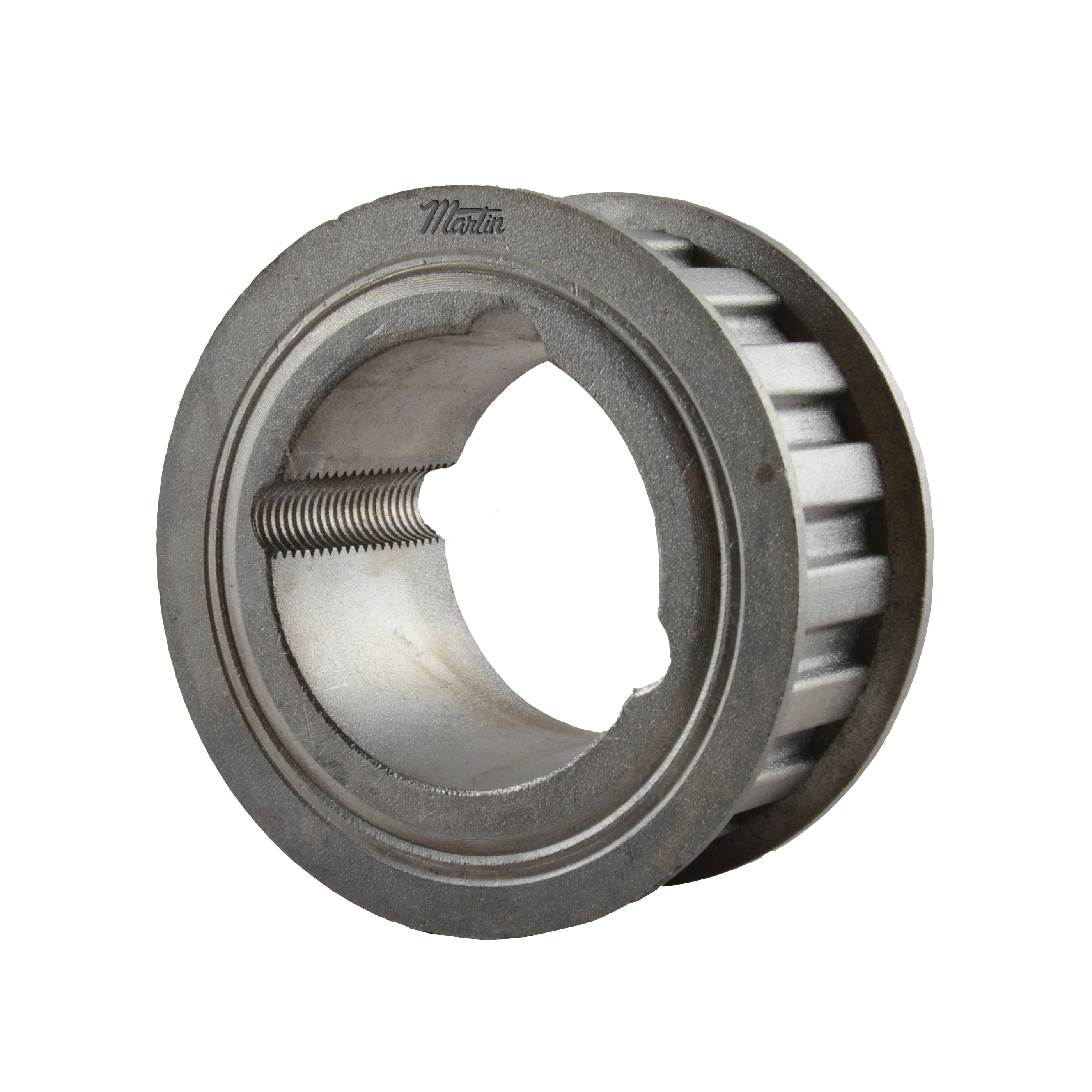

Martin TB40H200 MARTB40H200

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Solid Type KF-1, TB Bushed Bore, 1/2 to 2-1/2 in Bore Dia, 6.312 in Outside Dia, 6.366 in, 40 Grooves, 1/2 in Pitch, 2-11/32 in Face Width, 6-37/64 in Flange Dia, 19/32 in Hub Projection, 2517 Bushing, 1-3/4 in Overall Length, For Use With: 2 in W Type H Belt, Cast Iron

• Non-slip toothed drive with no metal to metal contact
• Exhibit many of the best features of chain drives and belt drives
• No lubrication needed
• Precise machining and processes ensure consistent finish and high quality

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_TB60L050_Catalog.pdf
