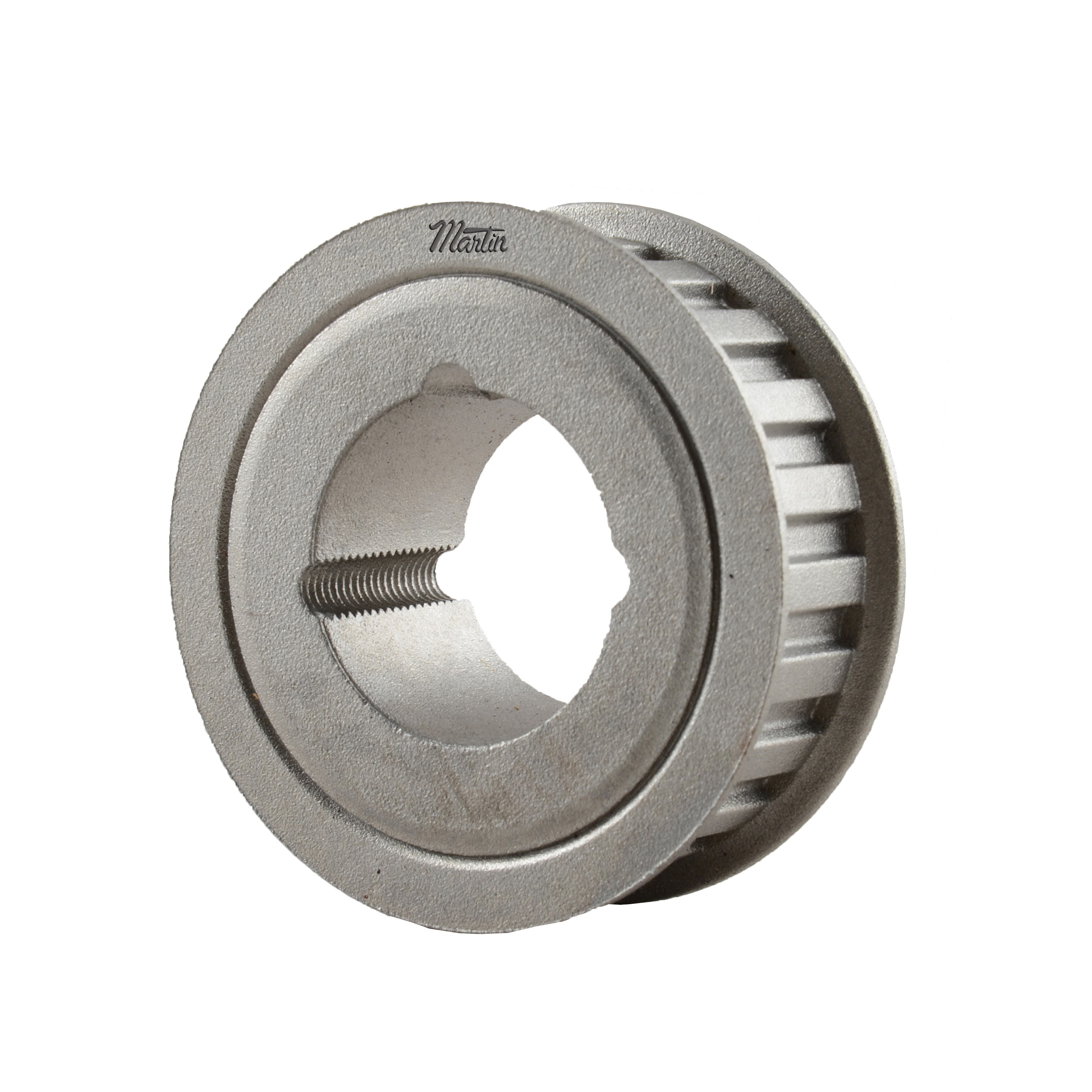

Martin TB32L050 MARTB32L050
Martin TB32L050 Solid Type CF-1 Stock Timing Pulley, 1/2 to 1-5/8 in TB Bushed Bore, 3.79 in OD, 32 Grooves, 3.82 in Dia Pitch, 3/4 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARTB32L050
- MPN: TB32L050
- UPC: 697950083797
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type CF-1, TB Bushed Bore, 1/2 to 1-5/8 in Bore Dia, 3.79 in Outside Dia, 3.82 in, 32 Grooves, 3/8 in Pitch, 3/4 in Face Width, 4-1/16 in Flange Dia, 3-1/16 in Hub Dia, 1/4 in Hub Projection, 1610 Bushing, 1 in Overall Length, For Use With: 1/2 in W Type L Belt, Steel
| Bore Diameter | : | 1/2 to 1-5/8 in |
| Bore Type | : | TB Bushed |
| Bushing Type | : | 1610 |
| Face Width | : | 3/4 in |
| Flange Diameter | : | 4-1/16 in |
| Hub Diameter | : | 3-1/16 in |
| Hub Projection | : | 1/4 in |
| Material | : | Steel |
| Number of Grooves | : | 32 |
| Outside Diameter | : | 3.79 in |
| Overall Length | : | 1 in |
| Pitch Diameter | : | 3.82 in |
| Pitch | : | 3/8 in |
| Suitable For Use With | : | 1/2 in W Type L Belt |
| Type | : | Solid Type CF-1 |
- Non-slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
