Martin P5614M40-E MARP5614M40
  1. pin-int

Martin P5614M40-E MARP5614M40

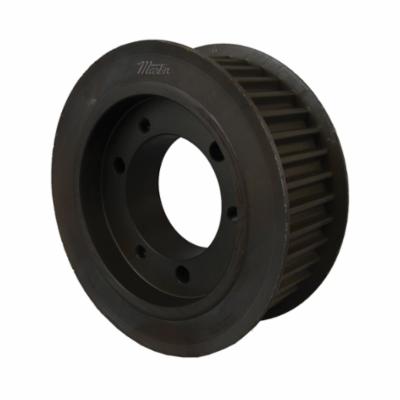

Martin HTS® P5614M40-E Solid Type DF-1 High Torque Belt Drive Sprocket, 7/8 to 8-3/4 in QD® Bushed Bore, 9.715 in OD, 56 Grooves, 9.825 in Dia Pitch, 2-1/8 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARP5614M40
  • MPN: P5614M40-E
  • UPC: 697950779744
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin HTS® High Torque Belt Drive Sprocket, Solid Type DF-1, QD® Bushed Bore, 7/8 to 8-3/4 in Bore Dia, 9.715 in Outside Dia, 9.825 in, 56 Grooves, 14 mm Pitch, 2-1/8 in Face Width, 10-3/8 in Flange Dia, E Bushing, 1.63 in Overall Length, Cast Iron

Bore Diameter      :      7/8 to 8-3/4 in
Bore Type      :      QD® Bushed
Bushing Type      :      E
Face Width      :      2-1/8 in
Flange Diameter      :      10-3/8 in
Material      :      Cast Iron
Number of Grooves      :      56
Outside Diameter      :      9.715 in
Overall Length      :      1.63 in
Pitch Diameter      :      9.825 in
Pitch      :      14 mm
Type      :      Solid Type DF-1
  • Positive slip proof engagement
  • Constant driven speeds
  • High tension eliminated
  • High mechanical efficiency
  • Economical operation
  • No lubrication needed
  • Precise machining and processes ensure consistent finish and high quality
