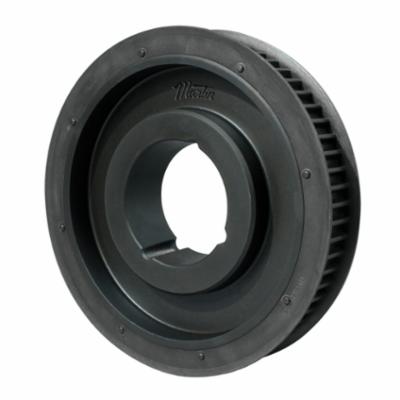

Martin P388M20-1610 MARP388M20-1610

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin HTS® High Torque Belt Drive Sprocket, Solid Type KF-1, TB Bushed Bore, 1/2 to 1-11/16 in Bore Dia, 3.756 in Outside Dia, 3.81 in, 38 Grooves, 8 mm Pitch, 1-1/8 in Face Width, 4.156 in Flange Dia, 1610 Bushing, 1-1/8 in Overall Length, Steel

• Positive slip proof engagement
• Constant driven speeds
• High tension eliminated
• High mechanical efficiency
• Economical operation
• No lubrication needed
• Precise machining and processes ensure consistent finish and high quality

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_P228M20-MPB_Catalog.pdf
