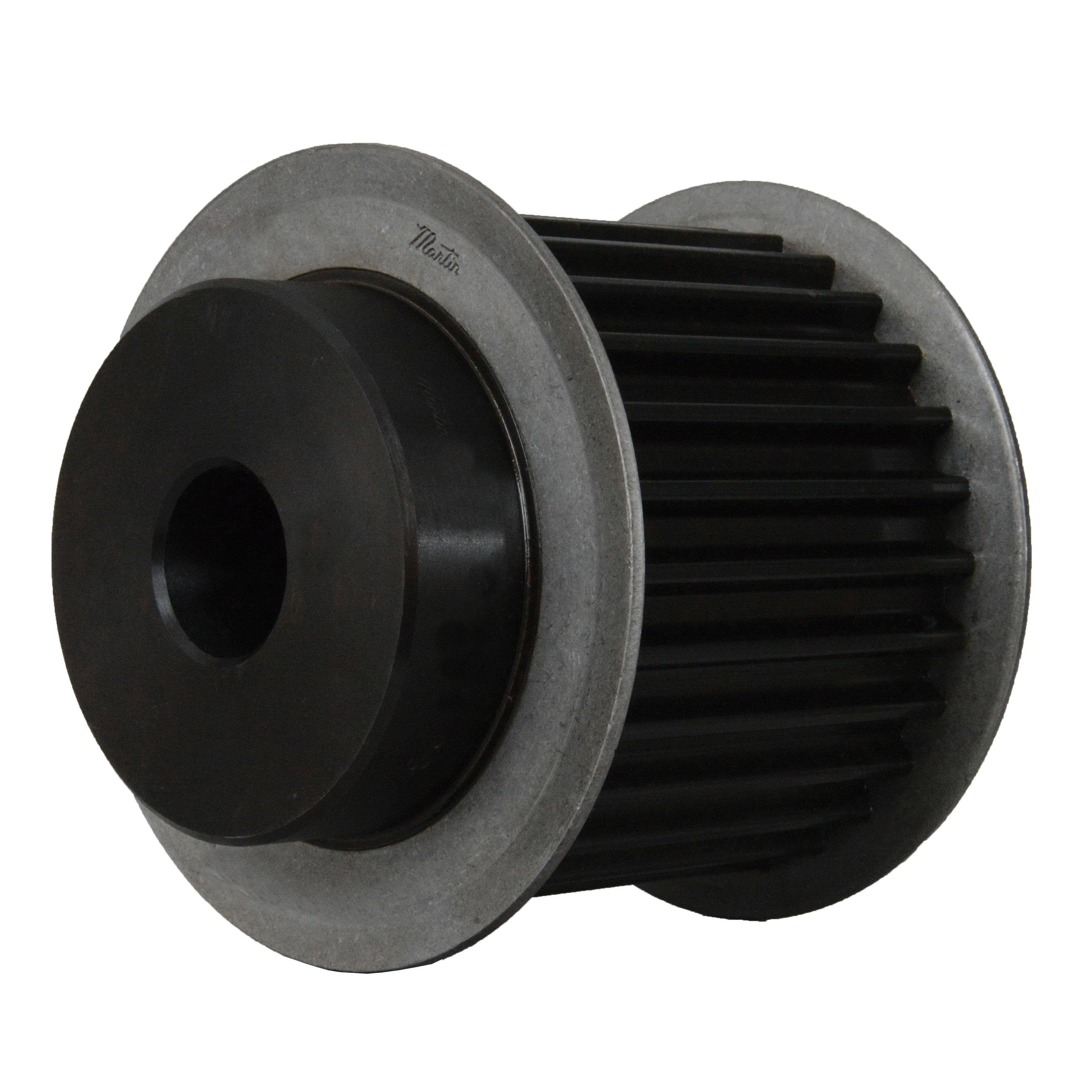

Martin P3614M115-MPB MARP3614M115-MPB

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.

Martin HTS® High Torque Sprocket, Solid Type DF-1, Minimum Plain Bore, 1-1/4 to 3 in Bore Dia, 6.2085 in Outside Dia, 6.316 in, 36 Grooves, 0.55118 in Pitch, 5-1/4 in Face Width, 6.81 in Flange Dia, 4-7/8 in Hub Dia, 1-1/4 in Hub Projection, 6-1/2 in Overall Length, For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts, Steel

• Non slip toothed drive with no metal to metal contact
• Exhibit many of the best features of chain drives and belt drives
• No lubrication needed
• Precise machining and processes ensure consistent finish and high quality

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
