Martin P1 38MM MARP138MM
Martin P1 38MM MST Bushing, 38 mm Dia Bore, 1.8555 in Small End/1.9375 in Large End Dia Barrel, 3 in Dia Flange, 1.94 in OAL, Ductile Iron
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARP138MM
- MPN: P1 38MM
- UPC: 697950816944
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:

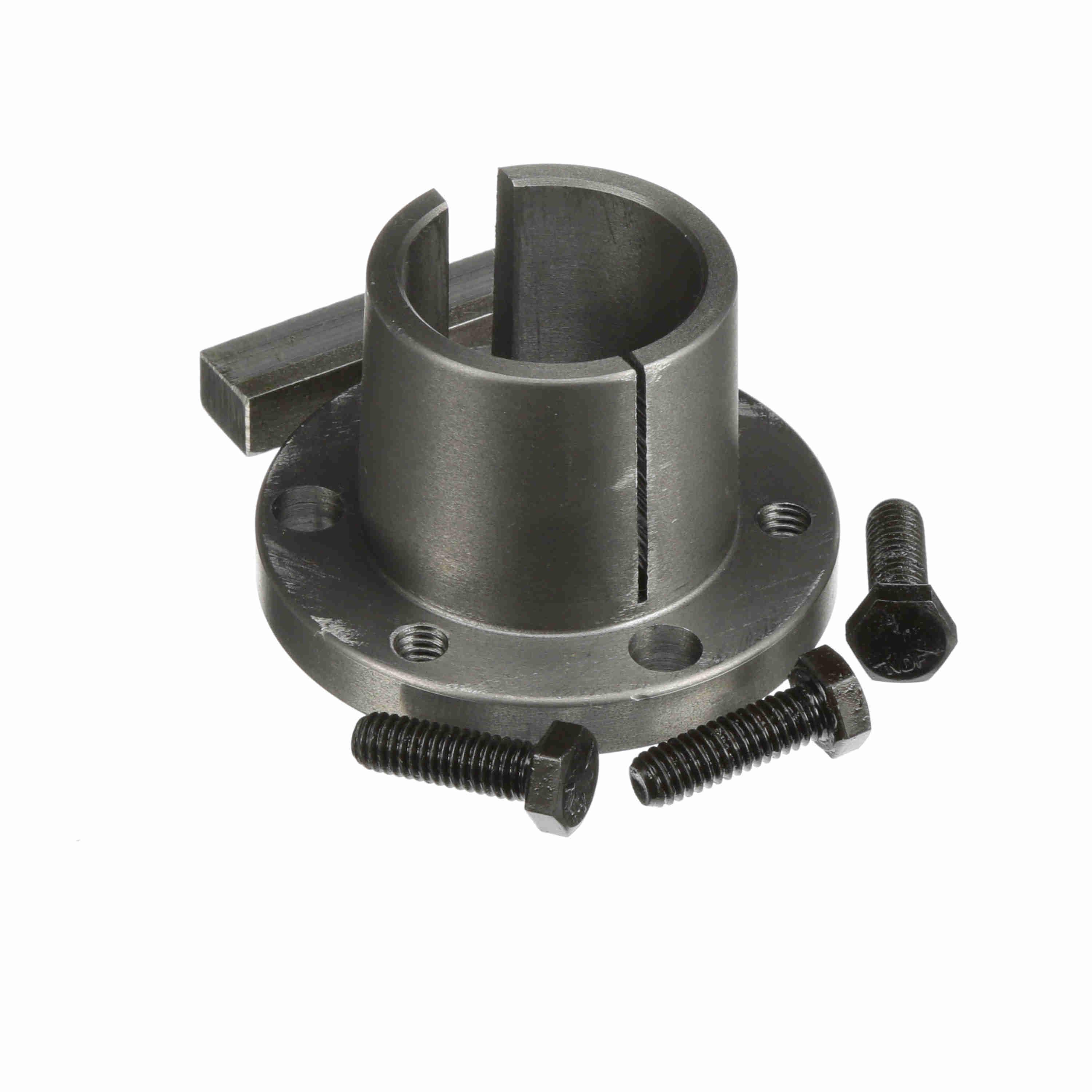

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.
Martin MST Bushing, 38 mm Bore Dia, 1.8555 in Small End/1.9375 in Large End Barrel Dia, 3 in Hub Dia, 2.44 in Bolt Circle, 3 in Flange Dia, 13/32 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 1 in Screw, For Use With: MST® Sprockets and HP1/HCP1 Weld-On Hubs, 1.94 in Overall Length, 10 x 3.3 in Keyway, Ductile Iron
| Barrel Diameter | : | 1.8555 in Small End/1.9375 in Large End |
| Bolt Circle Diameter | : | 2.44 in |
| Bore Diameter | : | 38 mm |
| Flange Diameter | : | 3 in |
| Flange Thickness | : | 13/32 in |
| Hub Diameter | : | 3 in |
| Keyway Size | : | 10 x 3.3 in |
| Material | : | Ductile Iron |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 1.94 in |
| Screw Size | : | 5/16-18 x 1 in |
| Suitable For Use With | : | MST® Sprockets and HP1/HCP1 Weld-On Hubs |
- Size 2/P1 bushing
- Tolerances meet or exceed industry guidelines and standards
- Recommended for use with split taper bushed parts
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturers’ split-taper bushings
