Martin P1 31/32 MARP131/32
Martin P1 31/32 Standard MST Bushing, 31/32 in Dia Bore, 1.8555 in Small End/1.9375 in Large End Dia Barrel, 3 in Dia Flange, 1.94 in OAL, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARP131/32
- MPN: P1 31/32
- UPC: 697950127903
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:

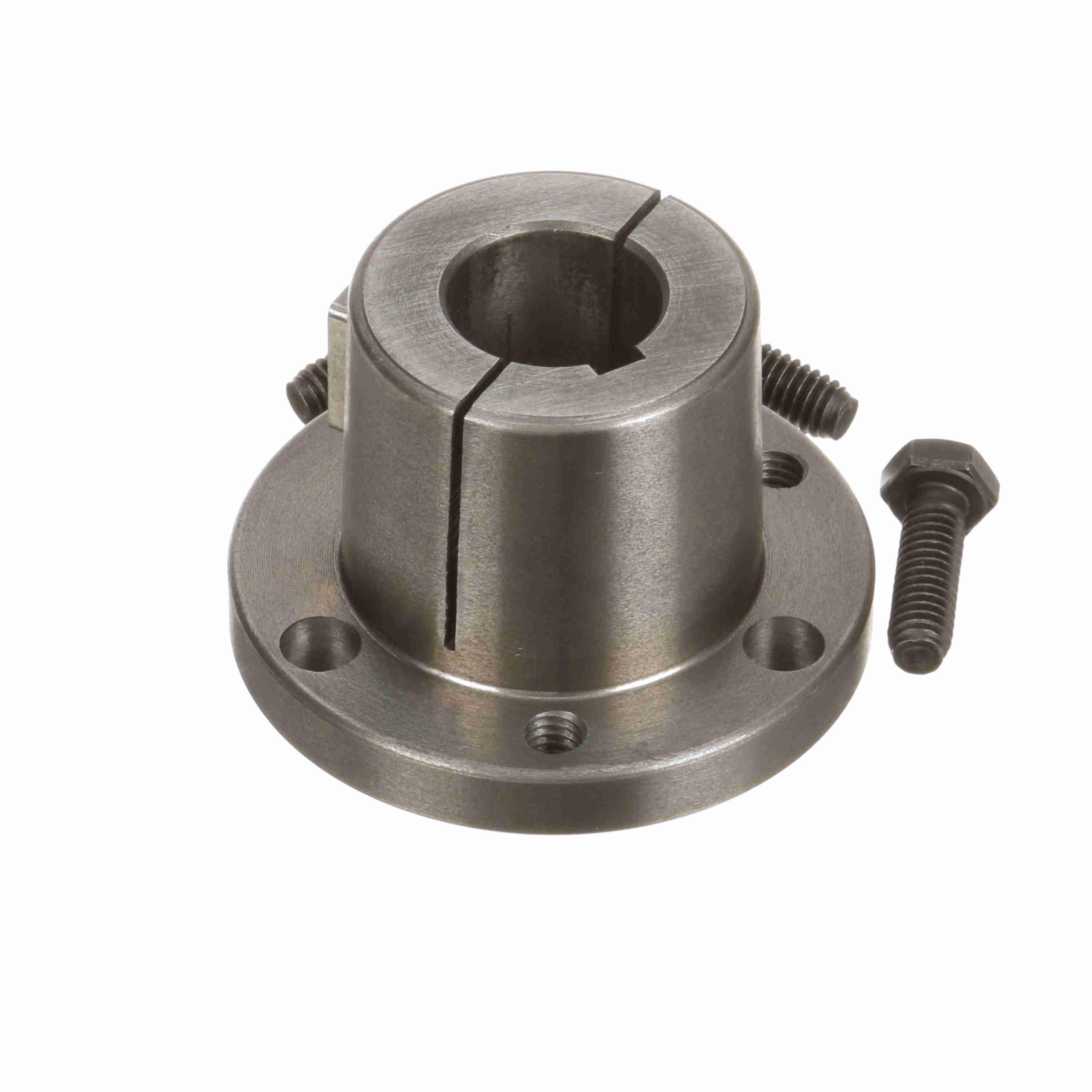

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.
Martin MST Bushing, Standard, 31/32 in Bore Dia, 1.8555 in Small End/1.9375 in Large End Barrel Dia, 3 in Hub Dia, 2-7/16 in Bolt Circle, 3 in Flange Dia, 0.406 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 1 in Screw, For Use With: MST® Sprockets and HP1/HCP1 Weld-On Hubs, 1.94 in Overall Length, 1/4 x 1/8 in Keyway, Steel
| Barrel Diameter | : | 1.8555 in Small End/1.9375 in Large End |
| Bolt Circle Diameter | : | 2-7/16 in |
| Bore Diameter | : | 31/32 in |
| Flange Diameter | : | 3 in |
| Flange Thickness | : | 0.406 in |
| Hub Diameter | : | 3 in |
| Keyway Size | : | 1/4 x 1/8 in |
| Material | : | Steel |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 1.94 in |
| Screw Size | : | 5/16-18 x 1 in |
| Suitable For Use With | : | MST® Sprockets and HP1/HCP1 Weld-On Hubs |
| Type | : | Standard |
- Size 1/P1 bushing
- Tolerances meet or exceed industry guidelines and standards
- Recommended for use with split taper bushed parts
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturers’ split-taper bushings
