Martin HMK624A MARHMK624A

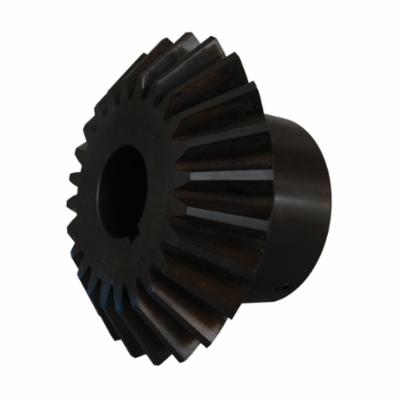

Martin HMK624A Bored-to-Size Straight Tooth Miter Gear With Hardened Teeth, 6 Diametral Pitch, 20 deg Pressure Angle, 24 Teeth, 4 in Dia Pitch, 0.86 in W Face, 1-1/2 to 1-1/2 in Dia Bore, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARHMK624A
- MPN: HMK624A
- UPC: 697950051543
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Martin stock miter gears are manufactured from 0.4 carbon steel. The "M" series is furnished unhardened with plain bore. The "HM" series is furnished hardened teeth with plain bore. The "HMK" series is furnished hardened teeth with keyway and setscrew for installation on the shaft. Hardened miter gears have approximately 50% more horsepower capacity and provide greater gear wear than untreated gears. All Martin miter gears are cut with the 20 deg pressure angle system.
Martin Straight Tooth Miter Gear, Bored-to-Size, Series: HMK, 1-1/2 to 1-1/2 in Bore Dia, 4.236 in Outside Dia, 24 Teeth, 6 Diametral Pitch, 4 in, 0.86 in Face Width, Hub with Set Screw, 3 in Hub Dia, 1.313 in Hub Projection, 2-5/16 in Overall Length, 20 deg Pressure Angle, 3/8 x 3/16 in Keyway, Steel
| Bore Diameter | : | 1-1/2 to 1-1/2 in |
| Diametral Pitch | : | 6 |
| Face Width | : | 0.86 in |
| Hub Diameter | : | 3 in |
| Hub Projection | : | 1.313 in |
| Hub Type | : | Hub with Set Screw |
| Keyway Size | : | 3/8 x 3/16 in |
| Material | : | Steel |
| Number of Teeth | : | 24 |
| Outside Diameter | : | 4.236 in |
| Overall Length | : | 2-5/16 in |
| Pitch Diameter | : | 4 in |
| Pressure Angle | : | 20 deg |
| Series | : | HMK |
| Type | : | Bored-to-Size |
- Right angle drives with varied ratios
- Commercial Class Gear. AGMA 6-8
