Martin H 13/16 MARH13/16

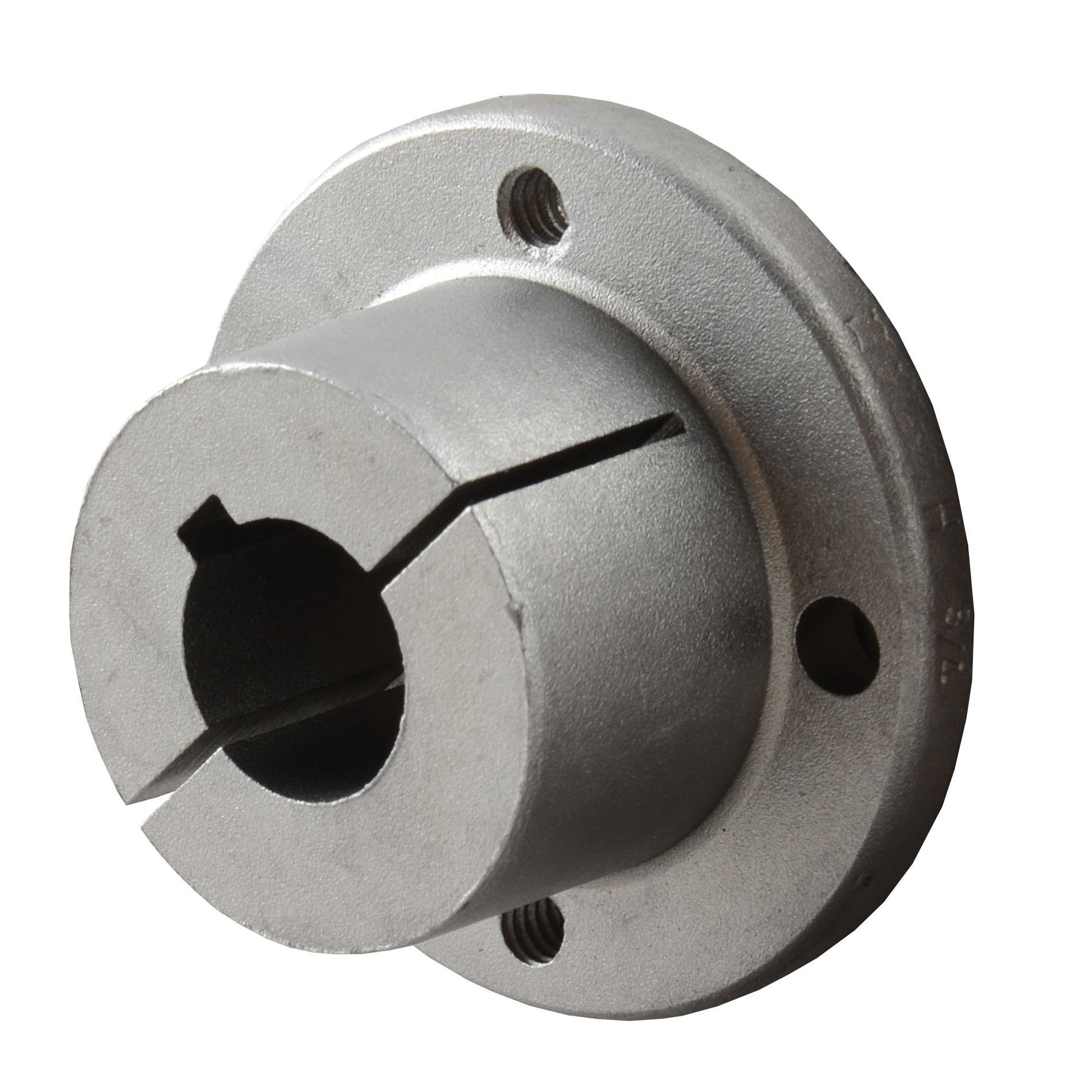

Martin H 13/16 Standard MST® H Bushing, 0.813 to 1.375 in Dia Bore, 1-5/8 in Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARH13/16
- MPN: H 13/16
- UPC: 697950217154
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during blind installations.
Martin Bushing, Standard MST® H, 0.813 to 1.375 in Bore, 1-5/8 in Barrel Diameter, 2 in Diameter Bolt Circle, 2-1/2 in Diameter Flange, 1/4 in Flange Thickness, 2 Bolt Holes, 1/4-20 x 3/4 in Screw, 95 in-lb Torque, 1-1/4 in Overall Length, 3/16 x 3/32 in Keyway, Steel
| Barrel Diameter | : | 1-5/8 in |
| Bolt Circle Diameter | : | 2 in |
| Bore Diameter | : | 0.813 to 1.375 in |
| Flange Diameter | : | 2-1/2 in |
| Flange Thickness | : | 1/4 in |
| Keyway Size | : | 3/16 x 3/32 in |
| Material | : | Steel |
| Number of Bolt Holes | : | 2 |
| Overall Length | : | 1-1/4 in |
| Screw Size | : | 1/4-20 x 3/4 in |
| Torque Rating | : | 95 in-lb |
| Type | : | Standard MST® H |
- Tolerances meet or exceed industry standards
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturers’ split-taper bushings
