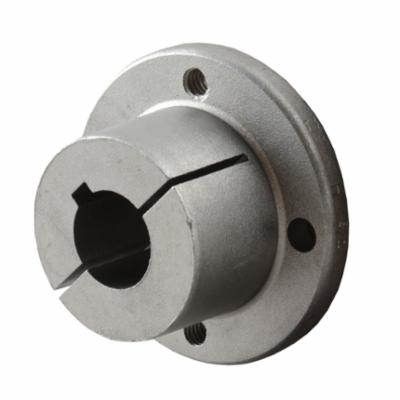

Martin H 1 3/8 MARH1 3/8
Martin H 1 3/8 Standard MST Bushing, 1-3/8 in Dia Bore, 1.57 in Small End/1.625 in Large End Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARH1 3/8
- MPN: H 1 3/8
- UPC: 697950217109
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.
Martin MST Bushing, Standard, 1-3/8 in Bore Dia, 1.57 in Small End/1.625 in Large End Barrel Dia, 2-1/2 in Hub Dia, 2 in Bolt Circle, 2-1/2 in Flange Dia, 1/4 in Flange Thickness, 2 Bolt Holes, 1/4-20 x 3/4 in Screw, For Use With: MST® Sprockets and HH1/HCH1 Weld-On Hubs, 1-1/4 in Overall Length, 5/16 x 1/16 in Keyway, Steel
| Barrel Diameter | : | 1.57 in Small End/1.625 in Large End |
| Bolt Circle Diameter | : | 2 in |
| Bore Diameter | : | 1-3/8 in |
| Flange Diameter | : | 2-1/2 in |
| Flange Thickness | : | 1/4 in |
| Hub Diameter | : | 2-1/2 in |
| Keyway Size | : | 5/16 x 1/16 in |
| Material | : | Steel |
| Number of Bolt Holes | : | 2 |
| Overall Length | : | 1-1/4 in |
| Screw Size | : | 1/4-20 x 3/4 in |
| Suitable For Use With | : | MST® Sprockets and HH1/HCH1 Weld-On Hubs |
| Type | : | Standard |
- Size 2/H bushing
- Tolerances meet or exceed industry standards
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturers’ split-taper bushings
