Martin E8 MARE8

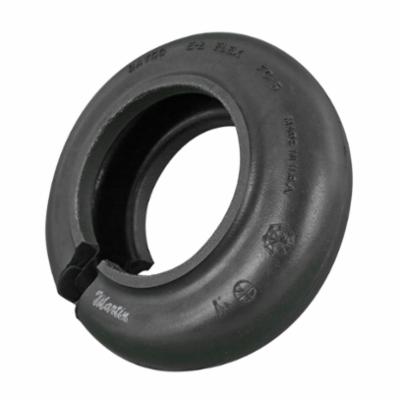

Martin Flex® E8 Two-Piece Coupling Element, 08 Coupling, 2-1/2 in L, 5.06 in OD, 4500 rpm Max, Rubber

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARE8
  • MPN: E8
  • UPC: 697950081571
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Martin-Flex® flexible couplings smoothly transmit power while compensating for shaft misalignment to 4 deg, parallel misalignment to 1/8 in and end float to 5/16 in. The two piece flange design provides quick and easy installation and the elastomeric element absorbs shock and torsional vibration through a wide temperature range.

Martin Flex® Coupling Element, Two-Piece, 08 Coupling, 2-1/2 in Length, 5.06 in OD, 1135 in-lb Torque, 4500 rpm Maximum, -30 to 275 deg F, Rubber, Black

Coupling Size      :      08
Finish      :      Black
Length      :      2-1/2 in
Material      :      Rubber
Maximum Speed      :      4500 rpm
Outside Diameter      :      5.06 in
Temperature Rating      :      -30 to 275 deg F
Torque Rating      :      1135 in-lb
Type      :      Two-Piece
  • Stocked in Rubber, available in Neoprene
  • Precise machining and processes ensure consistent finish and high quality
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_E11_Specification_Sheet.pdf
