Martin E50SF76 MARE50SF76

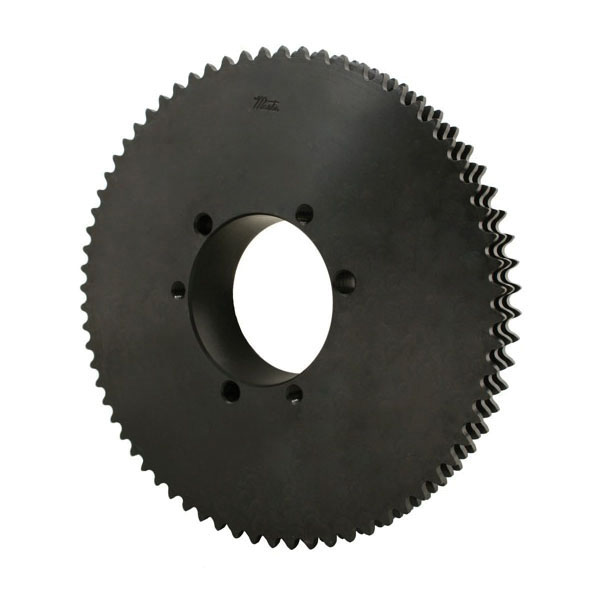

Martin E50SF76 Type B Triple Strand Solid Bushed Roller Chain Sprocket, 0.5 to 2.938 in Dia Bore, 15.486 in OD, #50 Chain, 76 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARE50SF76
  • MPN: E50SF76
  • UPC: 697950014494
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

QD (quick detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Roller Chain Sprocket, Type B Triple Strand Solid Bushed, 0.5 to 2.938 in Bore, 15.486 in OD, #50 Chain, 76 Teeth, 5/8 in Pitch, 15.124 in Pitch Diameter, 4-5/8 in Diameter Hub, 1-1/4 in Length Through Bore, QD® SF Bushing, Steel

Bore Diameter      :      0.5 to 2.938 in
Bushing Type      :      QD® SF
Chain Size      :      #50
Hub Diameter      :      4-5/8 in
Length Through Bore      :      1-1/4 in
Material      :      Steel
Number of Teeth      :      76
Outside Diameter      :      15.486 in
Pitch Diameter      :      15.124 in
Pitch      :      5/8 in
Type      :      Type B Triple Strand Solid Bushed
  • Interchangeable with other manufacturer's QD® bushings
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out
