Martin E40SK36 MARE40SK36
  1. pin-int

Martin E40SK36 MARE40SK36

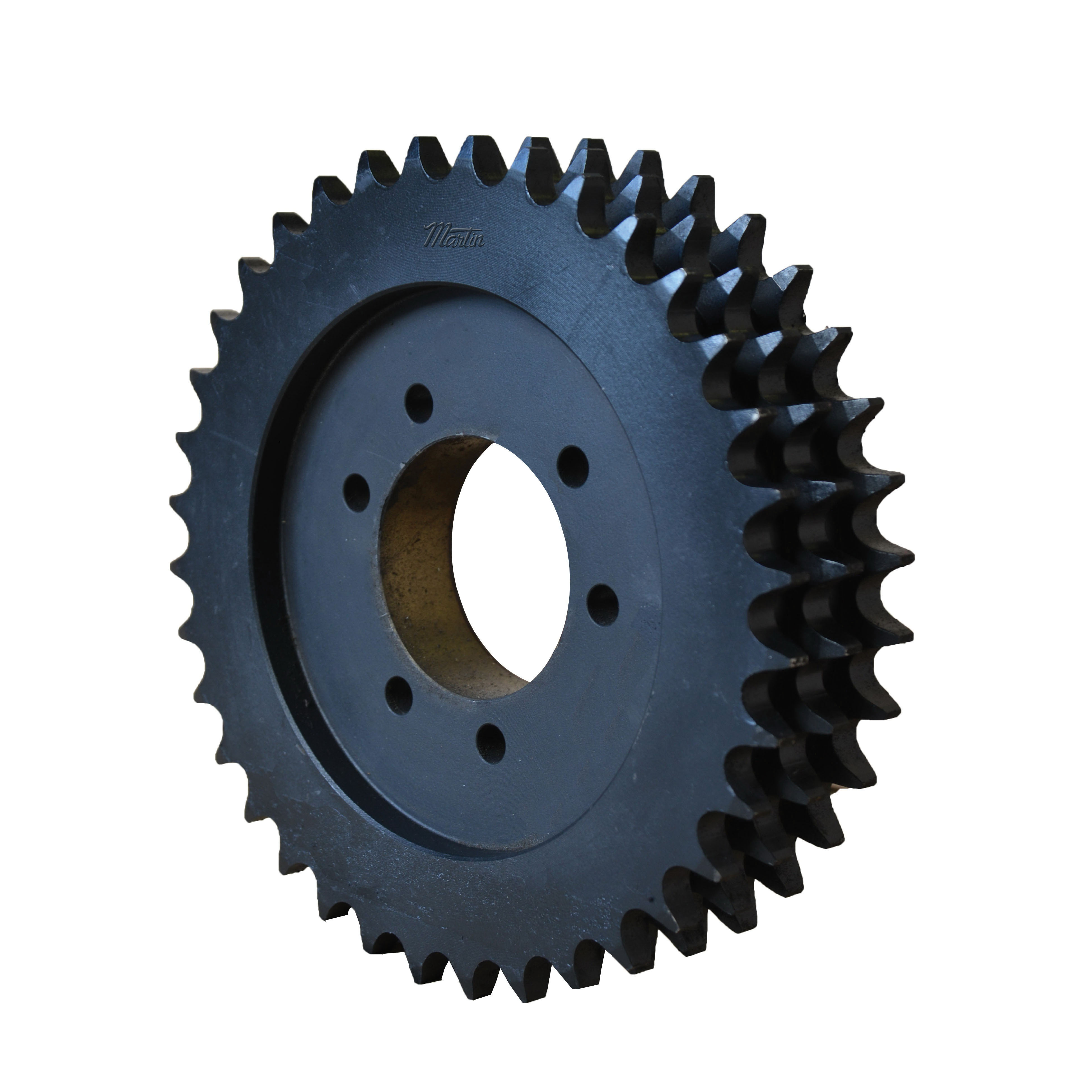

Martin E40SK36 Type B Triple Strand Solid Bushed Roller Chain Sprocket, 1/2 to 2-5/8 in Dia Bore, 6.015 in OD, #40 Chain, 36 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARE40SK36
  • MPN: E40SK36
  • UPC: 697950007755
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

QD (quick detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Roller Chain Sprocket, Type B Triple Strand Solid Bushed, 1/2 to 2-5/8 in Bore, 6.015 in OD, #40 Chain, 36 Teeth, 1/2 in Pitch, 5.737 in Pitch Diameter, 3-7/8 in Diameter Hub, 1-1/4 in Length Through Bore, QD® SK Bushing, Steel

Bore Diameter      :      1/2 to 2-5/8 in
Bushing Type      :      QD® SK
Chain Size      :      #40
Hub Diameter      :      3-7/8 in
Length Through Bore      :      1-1/4 in
Material      :      Steel
Number of Teeth      :      36
Outside Diameter      :      6.015 in
Pitch Diameter      :      5.737 in
Pitch      :      1/2 in
Type      :      Type B Triple Strand Solid Bushed
  • Item Features 01=Interchangeable with other manufacturer's QD® bushings
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • Item Features 03=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Item Features 04=Bores are concentric to pitch line, minimizing run out
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
