Martin E35B14H MARE35B14H
  1. pin-int

Martin E35B14H MARE35B14H

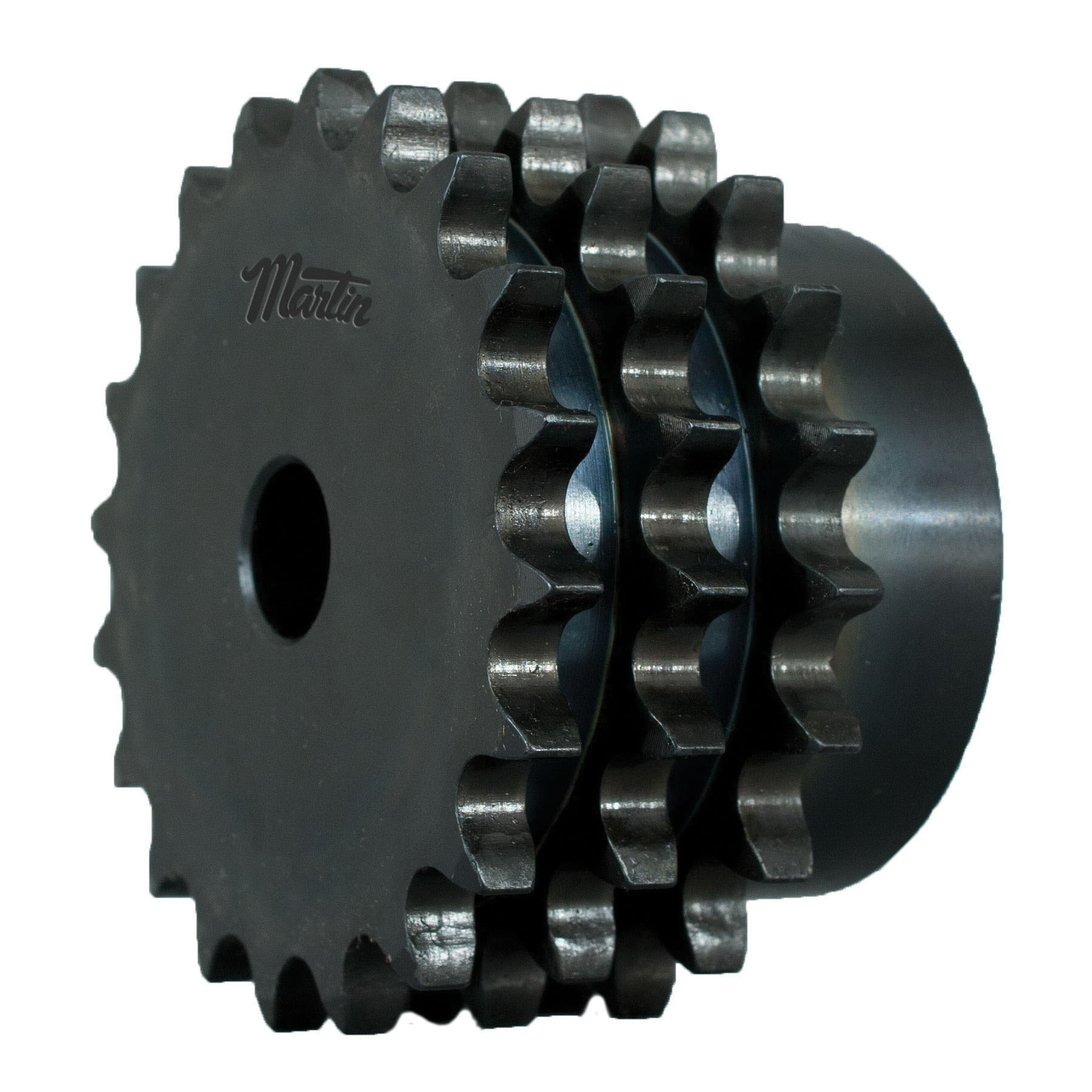

Martin E35B14H Type B Triple Strand Solid Reboreable Roller Chain Sprocket With Hardened Teeth, 1/2 to 7/8 in Dia Bore, 1.868 in OD, #35 Chain, 14 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARE35B14H
  • MPN: E35B14H
  • UPC: 697950003160
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin triple strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, setscrews and harden teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Triple Strand Solid Reboreable, 1/2 to 7/8 in Bore, 1.868 in OD, #35 Chain, 14 Teeth, 3/8 in Pitch, 1.685 in Pitch Diameter, 1-1/4 in Diameter Hub, 1-3/4 in Length Through Bore, Steel

Bore Diameter      :      1/2 to 7/8 in
Chain Size      :      #35
Hub Diameter      :      1-1/4 in
Length Through Bore      :      1-3/4 in
Material      :      Steel
Number of Teeth      :      14
Outside Diameter      :      1.868 in
Pitch Diameter      :      1.685 in
Pitch      :      3/8 in
Type      :      Type B Triple Strand Solid Reboreable
  • Item Features 01=Manufactured of high carbon steel
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • Item Features 03=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
