Martin E06B96 MARE06B96

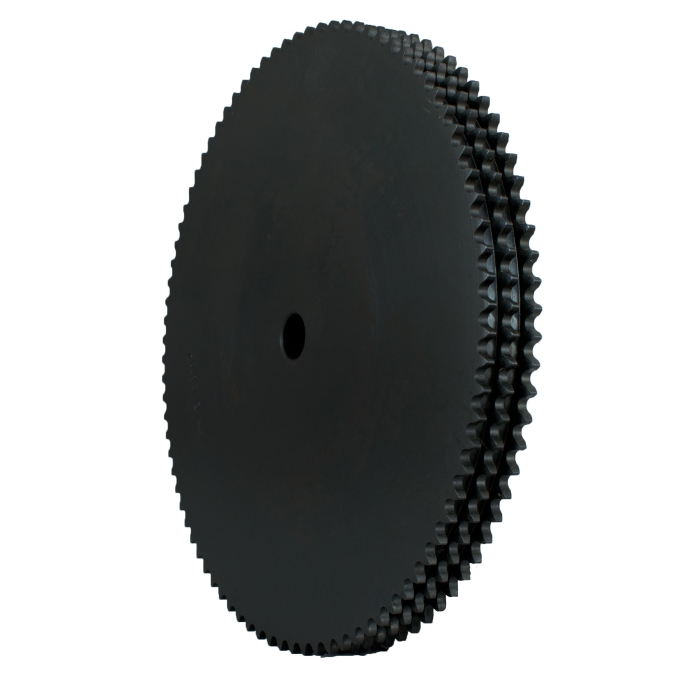

Martin E06B96 Type B Solid Stock Bore Triple Strand Roller Chain Sprocket, 25 to 68 mm Dia Bore, 296.671 mm OD, #06B-3 Chain, 96 Teeth, 9.525 mm Pitch, High Carbon Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARE06B96
- MPN: E06B96
- UPC: 697950396774
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: 1/EA
-
Price:
Martin metric triple strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type B Solid Stock Bore Triple Strand, 25 to 68 mm Bore, 296.671 mm OD, #06B-3 Chain, 96 Teeth, 9.525 mm Pitch, 291.115 mm Pitch Diameter, 100 mm Diameter Hub, 54 mm Length Through Bore, High Carbon Steel
| Bore Diameter | : | 25 to 68 mm |
| Chain Size | : | #06B-3 |
| Hub Diameter | : | 100 mm |
| Length Through Bore | : | 54 mm |
| Material | : | High Carbon Steel |
| Number of Teeth | : | 96 |
| Outside Diameter | : | 296.671 mm |
| Pitch Diameter | : | 291.115 mm |
| Pitch | : | 9.525 mm |
| Type | : | Type B Solid Stock Bore Triple Strand |
- Without hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
