Martin E06B36 MARE06B36
  1. pin-int

Martin E06B36 MARE06B36

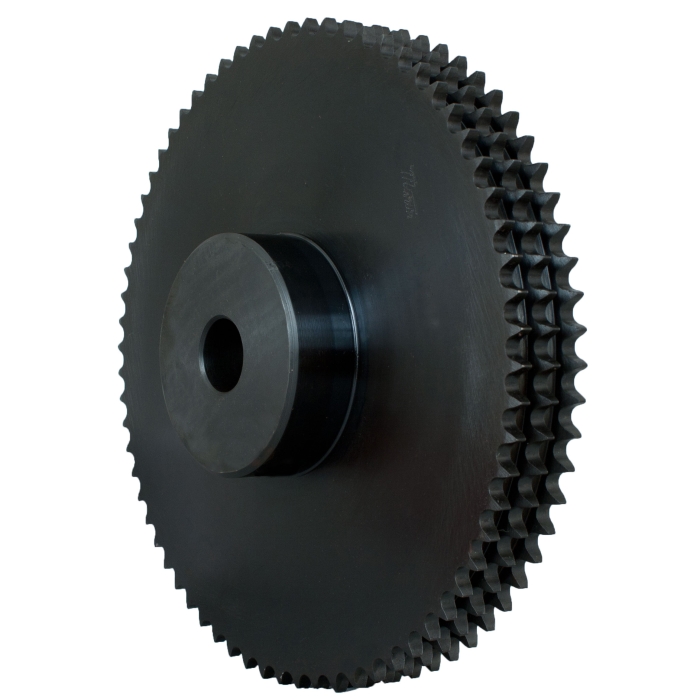

Martin E06B36 Type B Solid Stock Bore Triple Strand Roller Chain Sprocket, 16 to 62 mm Dia Bore, 114.843 mm OD, #06B-3 Chain, 36 Teeth, 9.525 mm Pitch, High Carbon Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARE06B36
  • MPN: E06B36
  • UPC: 697950396644
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin metric triple strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Solid Stock Bore Triple Strand, 16 to 62 mm Bore, 114.843 mm OD, #06B-3 Chain, 36 Teeth, 9.525 mm Pitch, 109.287 mm Pitch Diameter, 89.992 mm Diameter Hub, 40.005 mm Length Through Bore, High Carbon Steel

Bore Diameter      :      16 to 62 mm
Chain Size      :      #06B-3
Hub Diameter      :      89.992 mm
Length Through Bore      :      40.005 mm
Material      :      High Carbon Steel
Number of Teeth      :      36
Outside Diameter      :      114.843 mm
Pitch Diameter      :      109.287 mm
Pitch      :      9.525 mm
Type      :      Type B Solid Stock Bore Triple Strand
  • Item Features 01=Without hardened teeth
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • Item Features 03=Bores are concentric to pitch line, minimizing run out
  • Item Features 04=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_D06B114_Specification_Sheet.pdf
