Martin DS80R23H MARDS80R23H

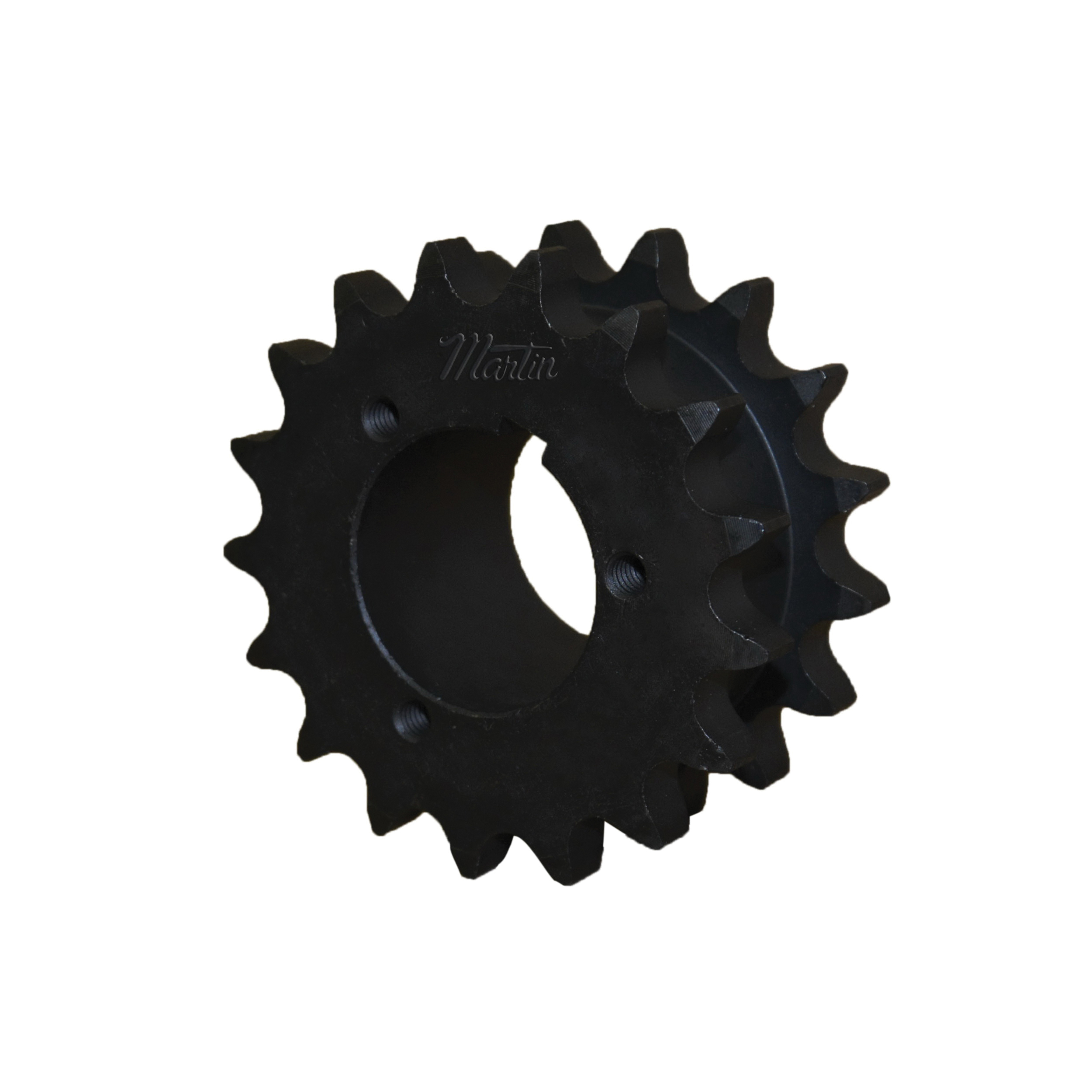

Martin DS80R23H MST® Bushed Type B Double Single Roller Chain Sprocket, 7.88 in OD, 80 Chain, 23 Teeth, 1 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARDS80R23H
  • MPN: DS80R23H
  • UPC: 697950292236
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Double single sprockets are precision machined steel sprockets and run with two single chains. They are stocked in minimum plain bore, taper bushed and Martin split taper style. The minimum plain bores can be quickly modified for your specific application.

Martin Double Single Roller Chain Sprocket, MST® Bushed Type B, 7.88 in Outside Dia, 80 Chain, 23 Teeth, 1 in Pitch, 7.344 in, 3/4 x 4.19 in Keyway, 2.188 in Length Through Bore, Type R1 Split Taper Bushing, Steel

Bushing Type      :      Type R1 Split Taper
Chain Size      :      80
Keyway Size      :      3/4 x 4.19 in
Length Through Bore      :      2.188 in
Material      :      Steel
Number of Teeth      :      23
Outside Diameter      :      7.88 in
Pitch Diameter      :      7.344 in
Pitch      :      1 in
Type      :      MST® Bushed Type B
  • To be run with (2) separate single row chains
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bored to accept split taper bushings
