Martin DS50ATB23H MARDS50ATB23H
  1. pin-int

Martin DS50ATB23H MARDS50ATB23H

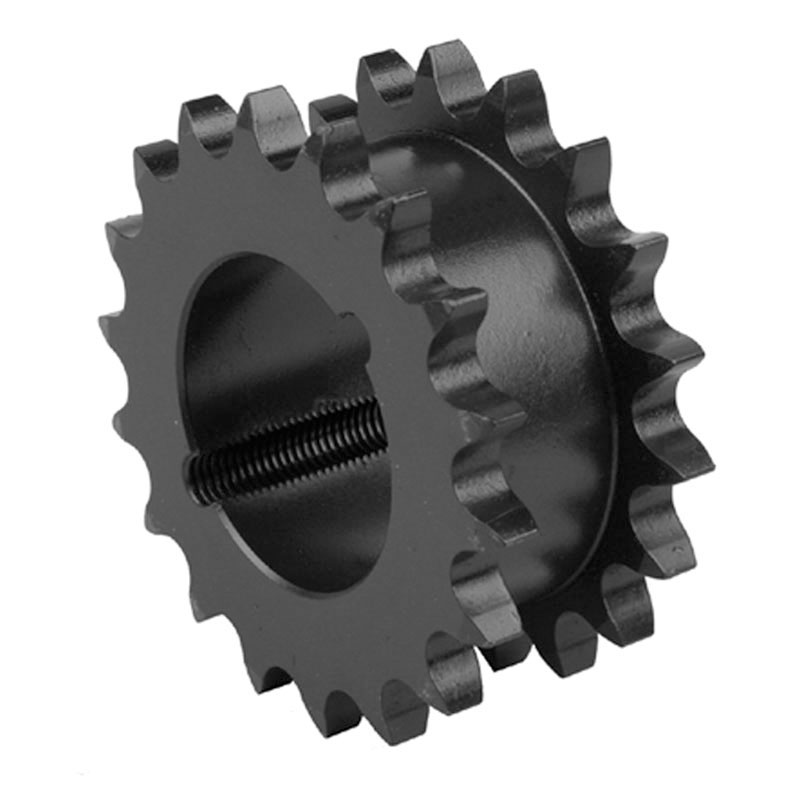

Martin DS50ATB23H Type A Double Single Strand Bushed Roller Chain Sprocket With Hardened Teeth, 1/2 to 2 in Dia Bore, 4.922 in OD, #50 Chain, 23 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARDS50ATB23H
  • MPN: DS50ATB23H
  • UPC: 697950029771
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Double single sprockets are precision machined steel sprockets and run with two single chains. They are stocked in minimum plain bore, taper bushed and Martin split taper style. The minimum plain bores can be quickly modified for your specific application.

Martin Roller Chain Sprocket, Type A Double Single Strand Bushed, 1/2 to 2 in Bore, 4.922 in OD, #50 Chain, 23 Teeth, 5/8 in Pitch, 4.59 in Pitch Diameter, 3.8906 in Diameter Hub, 1.656 in Length Through Bore, TB 2012 Bushing, Steel

Bore Diameter      :      1/2 to 2 in
Bushing Type      :      TB 2012
Chain Size      :      #50
Hub Diameter      :      3.8906 in
Length Through Bore      :      1.656 in
Material      :      Steel
Number of Teeth      :      23
Outside Diameter      :      4.922 in
Pitch Diameter      :      4.59 in
Pitch      :      5/8 in
Type      :      Type A Double Single Strand Bushed
  • Item Features 01=To be run with two separate single row chains
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • Item Features 03=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Item Features 04=Bores are concentric to pitch line, minimizing run out
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
