Martin D60P13H MARD60P13H
  1. pin-int

Martin D60P13H MARD60P13H

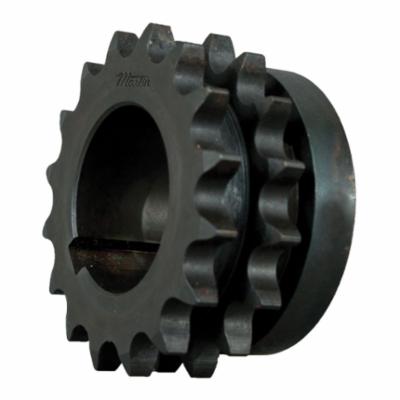

Martin D60P13H MST® P1 Bushed Solid Type 16 Split Double Roller Chain Sprocket With Recess Groove, 1/2 to 1-3/4 in Dia Bore, 3.493 in OD, 60 Chain, 13 Teeth, 3/4 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARD60P13H
  • MPN: D60P13H
  • UPC: 697950098203
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Split Double Roller Chain Sprocket, MST® P1 Bushed Solid Type 16, 1/2 to 1-3/4 in Bore Dia, 3.493 in Outside Dia, 60 Chain, 13 Teeth, 3/4 in Pitch, 3.134 in, 3 in Hub Dia, 3/8 in W Keyway, 1-15/16 in Length Through Bore, Type P1 Split Taper Bushing, Steel

Bore Diameter      :      1/2 to 1-3/4 in
Bushing Type      :      Type P1 Split Taper
Chain Size      :      60
Hub Diameter      :      3 in
Keyway Size      :      3/8 in W
Length Through Bore      :      1-15/16 in
Material      :      Steel
Number of Teeth      :      13
Outside Diameter      :      3.493 in
Pitch Diameter      :      3.134 in
Pitch      :      3/4 in
Type      :      MST® P1 Bushed Solid Type 16
  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
