Martin D50SF95 MARD50SF95

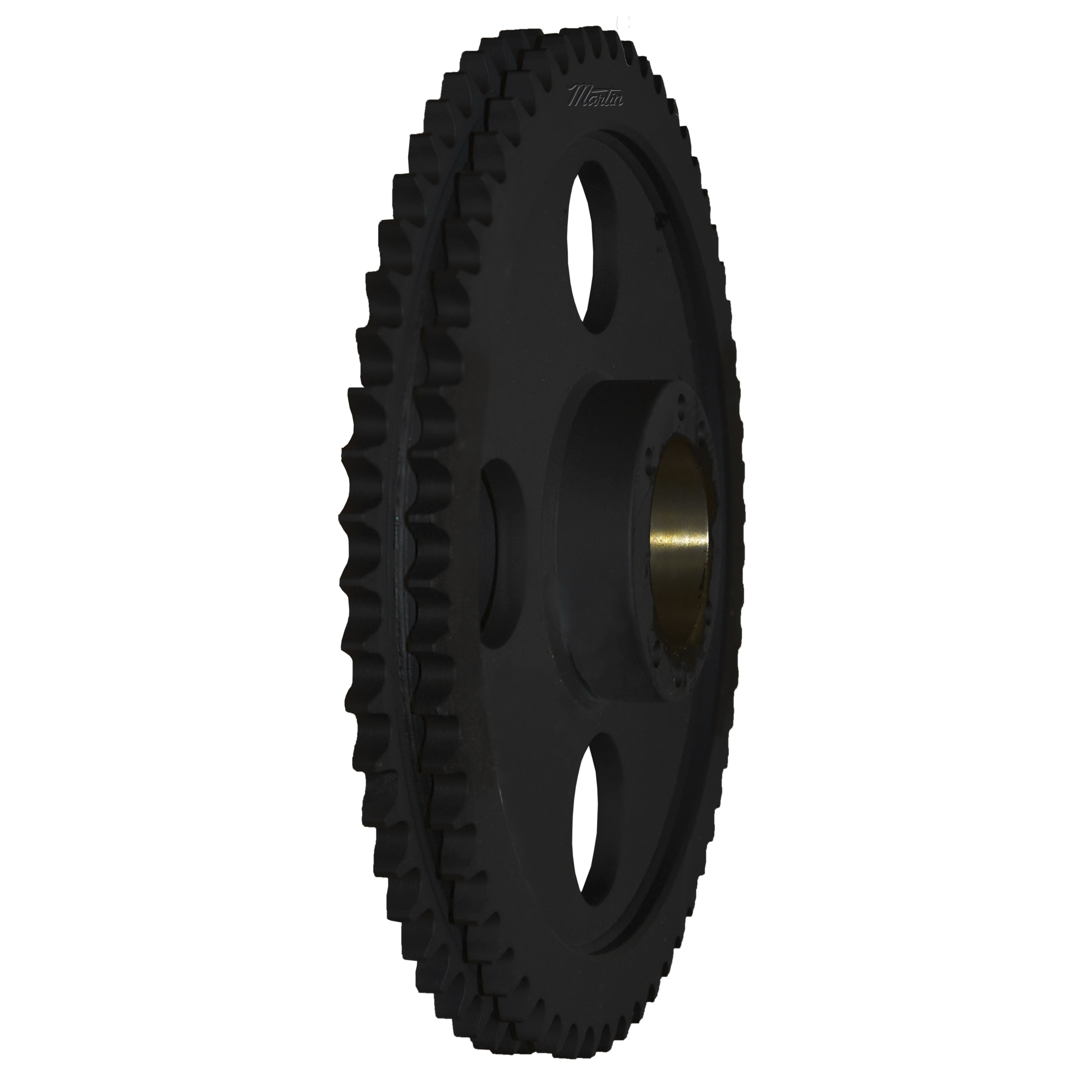

Martin D50SF95 Type C Double Strand Welded Bushed Roller Chain Sprocket With Lightening Hole, 0.5 to 2.938 in Dia Bore, 19.268 in OD, #50 Chain, 95 Teeth, 5/8 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARD50SF95
- MPN: D50SF95
- UPC: 697950014098
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
QD (quick detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.
Martin Roller Chain Sprocket, Type C Double Strand Welded Bushed, 0.5 to 2.938 in Bore, 19.268 in OD, #50 Chain, 95 Teeth, 5/8 in Pitch, 18.903 in Pitch Diameter, 4-3/4 in Diameter Hub, 1-1/4 in Length Through Bore, QD® SF Bushing, Steel
| Bore Diameter | : | 0.5 to 2.938 in |
| Bushing Type | : | QD® SF |
| Chain Size | : | #50 |
| Hub Diameter | : | 4-3/4 in |
| Length Through Bore | : | 1-1/4 in |
| Material | : | Steel |
| Number of Teeth | : | 95 |
| Outside Diameter | : | 19.268 in |
| Pitch Diameter | : | 18.903 in |
| Pitch | : | 5/8 in |
| Type | : | Type C Double Strand Welded Bushed |
- Interchangeable with other manufacturer's QD® bushings
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
Specification Sheet
