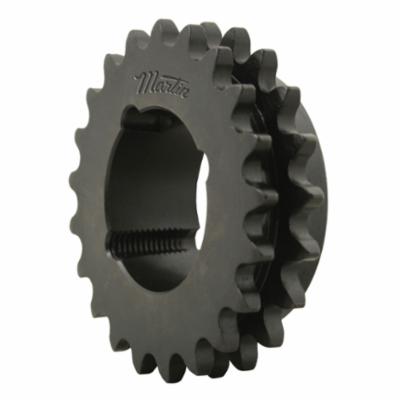

Martin D50BTB30 MARD50BTB30
Martin D50BTB30 Double Strand TB Bushed Solid Type B Single Roller Chain Sprocket, 6.321 in OD, 50-2 Chain, 30 Teeth, 5/8 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARD50BTB30
- MPN: D50BTB30
- UPC: 697950031507
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Single Roller Chain Sprocket, Double Strand TB Bushed Solid Type B, 6.321 in Outside Dia, 50-2 Chain, 30 Teeth, 5/8 in Pitch, 5.979 in, 5.281 in Hub Dia, 1-3/4 in Length Through Bore, 2517 Taper Lock Bushing, Steel
| Bushing Type | : | 2517 Taper Lock |
| Chain Size | : | 50-2 |
| Hub Diameter | : | 5.281 in |
| Length Through Bore | : | 1-3/4 in |
| Material | : | Steel |
| Number of Teeth | : | 30 |
| Outside Diameter | : | 6.321 in |
| Pitch Diameter | : | 5.979 in |
| Pitch | : | 5/8 in |
| Type | : | Double Strand TB Bushed Solid Type B |
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
