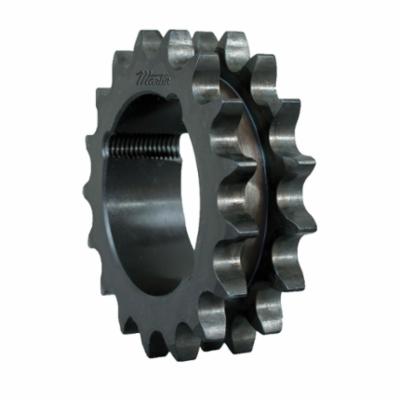

Martin D50ATB16H MARD50ATB16H
Martin D50ATB16H Double Strand TB Bushed Solid Type A Single Roller Chain Sprocket, 3.517 in OD, 50-2 Chain, 16 Teeth, 5/8 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARD50ATB16H
- MPN: D50ATB16H
- UPC: 697950031439
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Single Roller Chain Sprocket, Double Strand TB Bushed Solid Type A, 3.517 in Outside Dia, 50-2 Chain, 16 Teeth, 5/8 in Pitch, 3.204 in, 1 in Length Through Bore, 1210 Taper Lock Bushing, Steel
| Bushing Type | : | 1210 Taper Lock |
| Chain Size | : | 50-2 |
| Length Through Bore | : | 1 in |
| Material | : | Steel |
| Number of Teeth | : | 16 |
| Outside Diameter | : | 3.517 in |
| Pitch Diameter | : | 3.204 in |
| Pitch | : | 5/8 in |
| Type | : | Double Strand TB Bushed Solid Type A |
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
