Martin D35B36 MARD35B36
  1. pin-int

Martin D35B36 MARD35B36

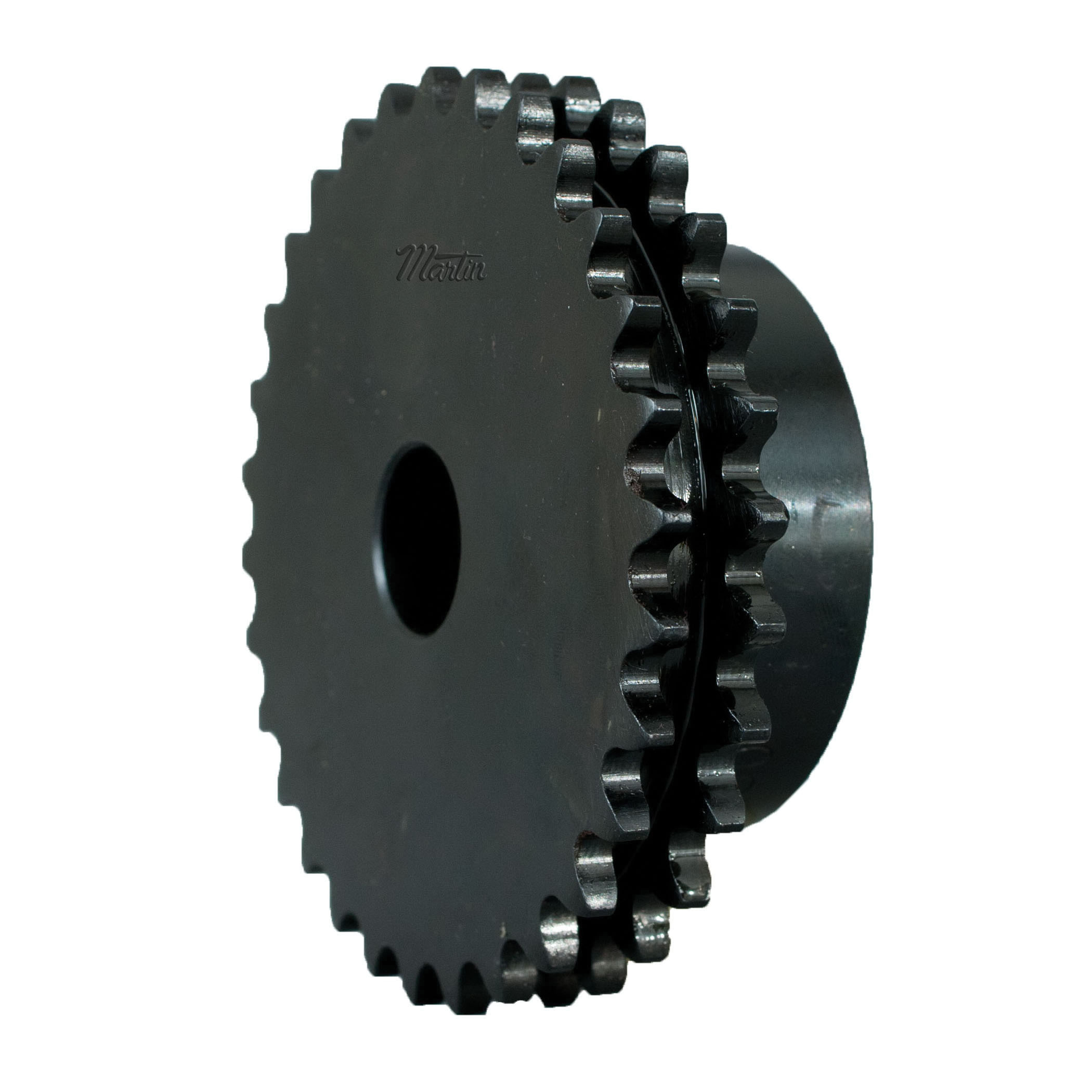

Martin D35B36 Type B Double Strand Solid Reboreable Roller Chain Sprocket, 3/4 to 1-3/4 in Dia Bore, 4.511 in OD, #35 Chain, 36 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARD35B36
  • MPN: D35B36
  • UPC: 697950002965
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, setscrews and harden teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Double Strand Solid Reboreable, 3/4 to 1-3/4 in Bore, 4.511 in OD, #35 Chain, 36 Teeth, 3/8 in Pitch, 4.303 in Pitch Diameter, 2-1/2 in Diameter Hub, 1-3/8 in Length Through Bore, Steel

Bore Diameter      :      3/4 to 1-3/4 in
Chain Size      :      #35
Hub Diameter      :      2-1/2 in
Length Through Bore      :      1-3/8 in
Material      :      Steel
Number of Teeth      :      36
Outside Diameter      :      4.511 in
Pitch Diameter      :      4.303 in
Pitch      :      3/8 in
Type      :      Type B Double Strand Solid Reboreable
  • Item Features 01=Precise machining and processes ensure consistent finish and high quality
  • Item Features 02=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Item Features 03=Bores are concentric to pitch line, minimizing run out
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
