Martin D16B24 MARD16B24

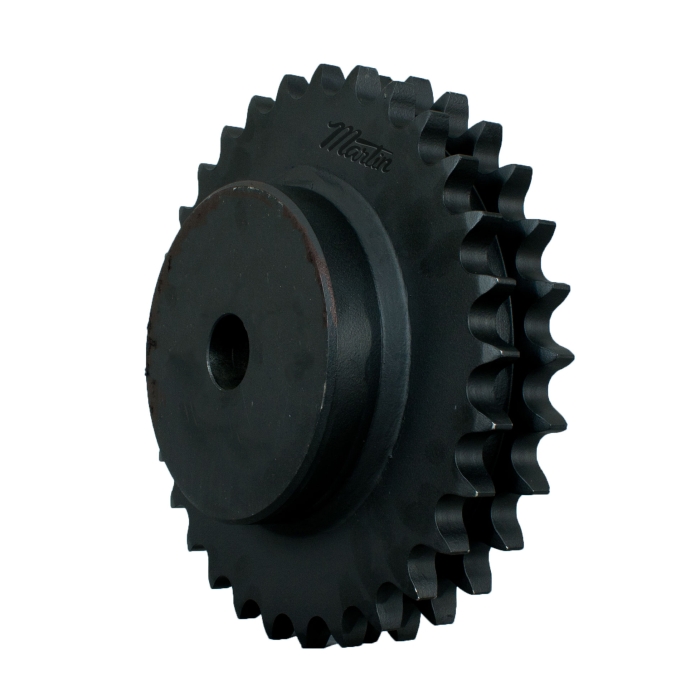

Martin D16B24 Type B Double Strand Solid Stock Bore Roller Chain Sprocket, 25 to 90 mm Dia Bore, 210.472 mm OD, #16B-2 Chain, 24 Teeth, 25.4 mm Pitch, High Carbon Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARD16B24
- MPN: D16B24
- UPC: 697950403168
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin metric double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type B Double Strand Solid Stock Bore, 25 to 90 mm Bore, 210.472 mm OD, #16B-2 Chain, 24 Teeth, 25.4 mm Pitch, 194.597 mm Pitch Diameter, 129.997 mm Diameter Hub, 70.002 mm Length Through Bore, High Carbon Steel
| Bore Diameter | : | 25 to 90 mm |
| Chain Size | : | #16B-2 |
| Hub Diameter | : | 129.997 mm |
| Length Through Bore | : | 70.002 mm |
| Material | : | High Carbon Steel |
| Number of Teeth | : | 24 |
| Outside Diameter | : | 210.472 mm |
| Pitch Diameter | : | 194.597 mm |
| Pitch | : | 25.4 mm |
| Type | : | Type B Double Strand Solid Stock Bore |
- Item Features 01=Without hardened teeth
- Item Features 02=Precise machining and processes ensure consistent finish and high quality
- Item Features 03=Bores are concentric to pitch line, minimizing run out
- Item Features 04=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
