Martin D12C96 MARD12C96

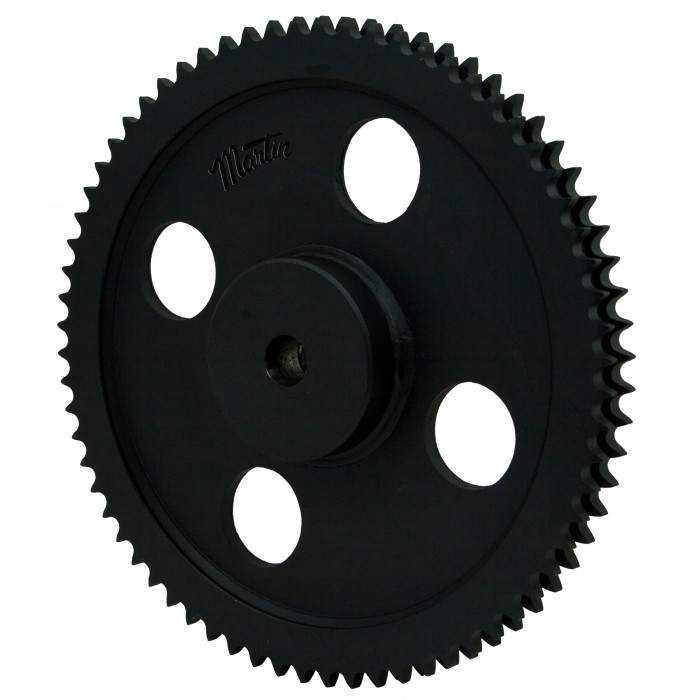

Martin D12C96 Type C Double Strand Stock Bore Welded Roller Chain Sprocket, 40 to 96 mm Dia Bore, 593.977 mm OD, #12B-2 Chain, 96 Teeth, 19.05 mm Pitch, High Carbon Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARD12C96
- MPN: D12C96
- UPC: 697950401645
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin metric double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type C Double Strand Stock Bore Welded, 40 to 96 mm Bore, 593.977 mm OD, #12B-2 Chain, 96 Teeth, 19.05 mm Pitch, 582.229 mm Pitch Diameter, 140.157 mm Diameter Hub, 84.988 mm Length Through Bore, High Carbon Steel
| Bore Diameter | : | 40 to 96 mm |
| Chain Size | : | #12B-2 |
| Hub Diameter | : | 140.157 mm |
| Length Through Bore | : | 84.988 mm |
| Material | : | High Carbon Steel |
| Number of Teeth | : | 96 |
| Outside Diameter | : | 593.977 mm |
| Pitch Diameter | : | 582.229 mm |
| Pitch | : | 19.05 mm |
| Type | : | Type C Double Strand Stock Bore Welded |
- Without hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
