Martin D12B29 MARD12B29

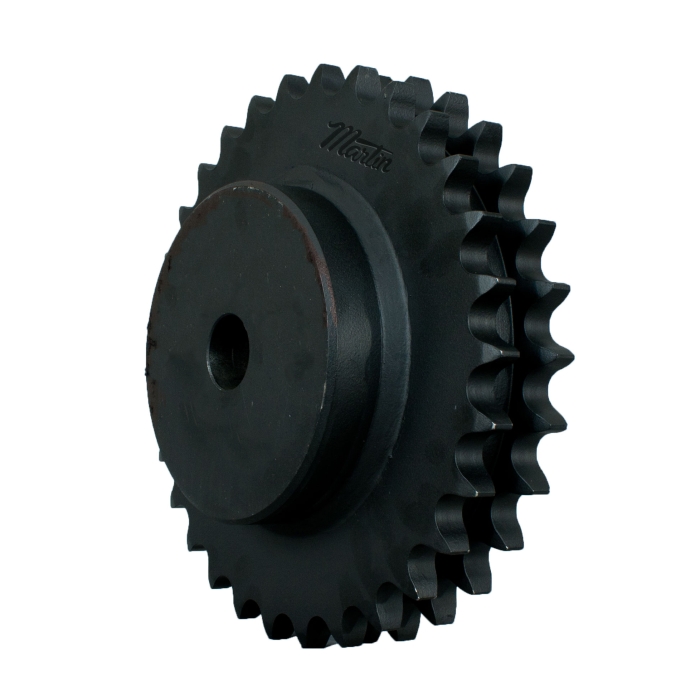

Martin D12B29 Type B Double Strand Solid Stock Bore Roller Chain Sprocket, 20 to 84 mm Dia Bore, 187.942 mm OD, #12B-2 Chain, 29 Teeth, 19.05 mm Pitch, High Carbon Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARD12B29
- MPN: D12B29
- UPC: 697950401492
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin metric double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type B Double Strand Solid Stock Bore, 20 to 84 mm Bore, 187.942 mm OD, #12B-2 Chain, 29 Teeth, 19.05 mm Pitch, 176.195 mm Pitch Diameter, 119.99 mm Diameter Hub, 50.013 mm Length Through Bore, High Carbon Steel
| Bore Diameter | : | 20 to 84 mm |
| Chain Size | : | #12B-2 |
| Hub Diameter | : | 119.99 mm |
| Length Through Bore | : | 50.013 mm |
| Material | : | High Carbon Steel |
| Number of Teeth | : | 29 |
| Outside Diameter | : | 187.942 mm |
| Pitch Diameter | : | 176.195 mm |
| Pitch | : | 19.05 mm |
| Type | : | Type B Double Strand Solid Stock Bore |
- Without hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
