Martin CSFP6 MARCSFP6

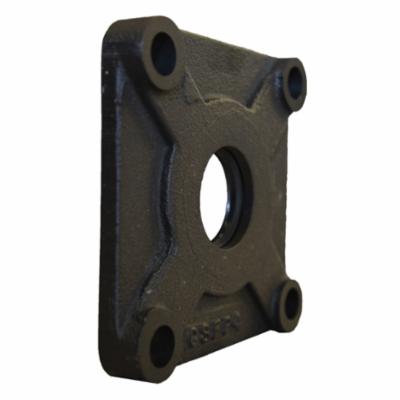

Martin CSFP6 Product Drop Out Seal, For Use With Screw Conveyor, 3 in Dia Shaft, 6 in Mounting Bolt Hole Center, 7/8 in THK Seal, 0.813 in Dia Mounting Bolt, Cast Iron
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARCSFP6
- MPN: CSFP6
- UPC: 697950128870
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Product drop out seals prevent bulk material leaks, which reduces product loss, contamination and bearing failure. This flange type dust seal is designed for insertion between the trough end and the flanged ball bearing. The cast iron housing is open on all four sides to allow excess material or lubricant from the bearing to exit.
Martin Product Drop Out Seal, For Use With: Screw Conveyor, 3 in Shaft Dia, 6 in Mounting Bolt Hole Center, 7/8 in Seal THK, 0.813 in Mounting Bolt Dia, Cast Iron, 6 in L x 6 in W x 4 3/8 in H
| Dimensions | : | 6 in L x 6 in W x 4 3/8 in H |
| Material | : | Cast Iron |
| Specifications | : | 3 in Shaft Dia, 6 in Mounting Bolt Hole Center, 7/8 in Seal THK, 0.813 in Mounting Bolt Dia |
| Suitable For Use With | : | Screw Conveyor |
- Normally furnished with lip seal
- Can be used with flanged 4- bolt bearing
