Martin CIC3 MARCIC3
  1. pin-int

Martin CIC3 MARCIC3

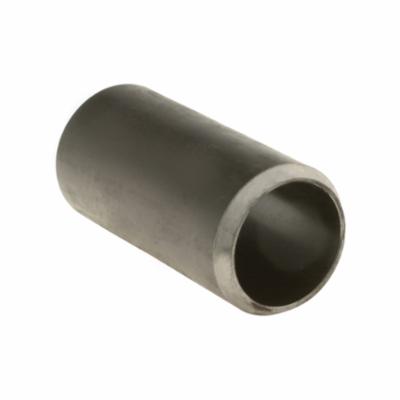

Martin CIC3 Internal Collar, For Use With 2 in Nominal Pipe, 1.509 in ID Collar, 2.055 in OD Collar, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARCIC3
  • MPN: CIC3
  • UPC: 697950080055
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Internal collars are made from special seamless tubing and machined for a press fit in the conveyor pipe. The close tolerance collars are jig drilled for proper alignment and plug welded for maximum efficiency and durability. No drilling in replacement collars is furnished, which allows for field drilling to match existing bolt holes.

Martin Internal Collar, For Use With: 2 in Nominal Pipe, 1.509 in Collar ID, 2.055 in Collar OD, Steel, 5 in L

Dimensions      :      5 in L
Material      :      Steel
Specifications      :      1.509 in Collar ID, 2.055 in Collar OD
Suitable For Use With      :      2 in Nominal Pipe
  • Made from seamless tubing
  • Stocked from 1 in - 3-15/16 in
  • Machined for a press fit
  • Chamfered for ease of press fitting
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_TEBH6_Catalog.pdf
